Configuring Resilient Links

With the Switch Management screen displayed,
choose the port to be the main port in the resilient
link pair, then select the RESILIENCE button.
The Port Resilience screen is displayed as shown in
Figure 4-14. This screen allows you to set up, edit
and delete resilient link pairs.
The screen shows the following:
Main Port ID This read-only field shows the ID of
the main port.
Media Type Twisted Pair / Fiber This read-only field
shows the media type connected to the main port.
Link State Available / Not Available / Not Present
This read-only field shows the connection state of
the main port:
Available — The port is operating normally
Not Available — The resilient link pair is disabled
Not Present — The port is not present in the cur-
rent hardware
Standby Port ID This field shows the current
standby port ID and allows you to enter a new port
ID. The standby port must be in the same VLAN as
the main port.
Media Type Twisted Pair / Fiber This read-only field
shows the standby port media type.

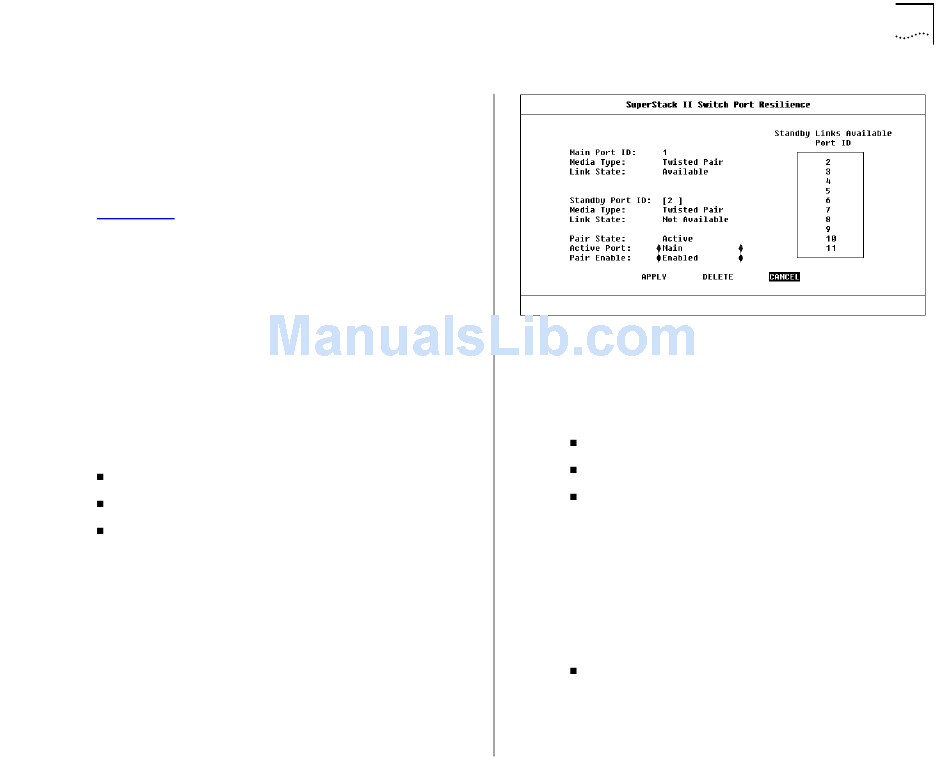

Figure 4-14 Port Resilience screen
Link State Available / Not Available / Not Present
This read-only field shows the connection state of
the standby port:
Available — The port is operating normally
Not Available — The resilient link pair is disabled
Not Present — The port is not present in the cur-
rent hardware
Standby Links Available This listbox shows the
ports that you can configure as standby.
Pair State Active / Both Failed / Unknown /
Not Available This read-only field shows the current
operating state of the resilient link pair:
Active — The resilient link pair is enabled and
operating normally with both main and standby
ports capable of carrying traffic.
Setting Up Resilient Links 4-21
