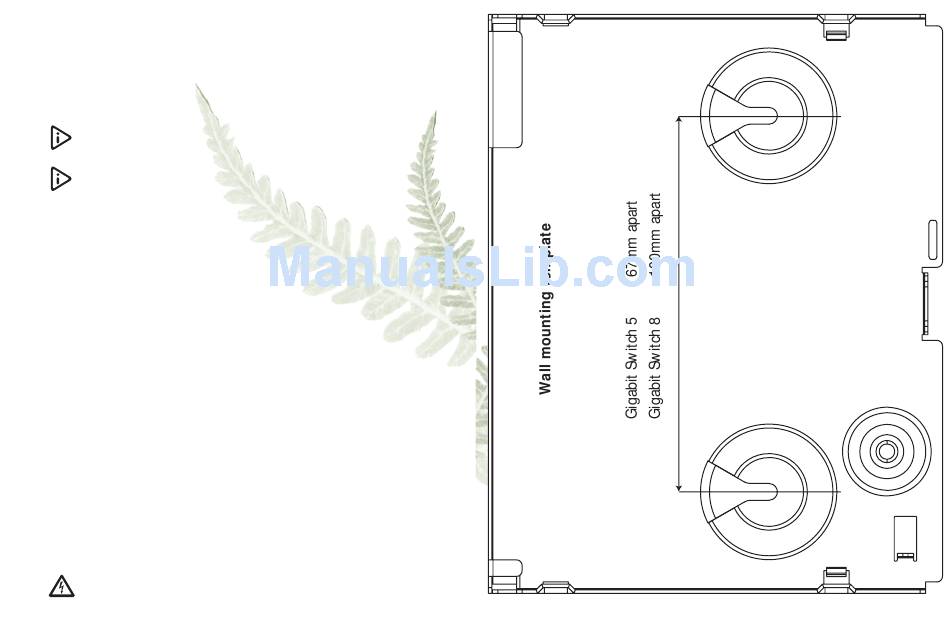

Wall Mounting
There are two slots on the underside of the Switch that can
be used for wall mounting. The Switch must be mounted
with the LEDs facing upwards.
When wall mounting the unit, ensure it is within reach
of the power outlet
When wall mounting the unit, ensure that the rubber
feet are not fixed
Mounting Instructions for Cement Walls
1 Make two holes 67mm apart for 5 port, and 100mm apart
for 8 port and insert two nylon or similar screw anchors
that are suitable for the wall construction.
2 Fix two suitable screws into the anchors, leaving their
heads 3 mm (0.12 in.) clear of the wall surface. The screws
should be at least 30 mm (1.2 in.) long,
3 Remove any connections in the Switch and locate it over
the screw heads. When in line, gently push the Switch on
to the wall and move it downwards to secure.
Mounting Instructions for Wood Walls
1 Make two holes 67mm apart for 5 port, and 100mm apart
for 8 port.
2 Fix two suitable screws directly into the wall, leaving their
heads 3 mm (0.12 in.) clear of the wall surface. The screws
should be at least 20 mm (0.75 in.) long,
3 Remove any connections in the Switch and locate it over
the screw heads. When in line, gently push the Switch on
to the wall and move it downwards to secure.
CAUTION: When making connections, be careful not
to push the Switch up and off the wall.
