Port Statistics

With the Switch Management screen displayed,
choose the management level port, then select the
STATISTICS button. The Port Statistics screen is dis-
played as shown in
As well as showing statistics for the port, Port Statis-
tics screen allows you access to traffic and error
counter screens.
If the port is an ATM OC-3c port, the ATM Port Sta-
tistics screen is displayed. For more information,
refer to the "SuperStack
User Guide".
The Port Statistics screen shows the following:
Port ID The ID of the port you are currently manag-
ing.
Bandwidth Used This counter provides a running
average of the bandwidth used by the port, and is
expressed as a percentage of the maximum band-
width available for the port. A sampling period of 1
minute is used. The value gives an indication of the
general traffic level of the network. A high utiliza-
tion for single endstation segments is an indication
that your network is operating efficiently. However,
if multiple endstations are connected to this port
and you see values of around 40% you should
reconsider the topology of your network because
each user will see degraded network performance.
Figure 6-2.
®
II Switch ATM Module

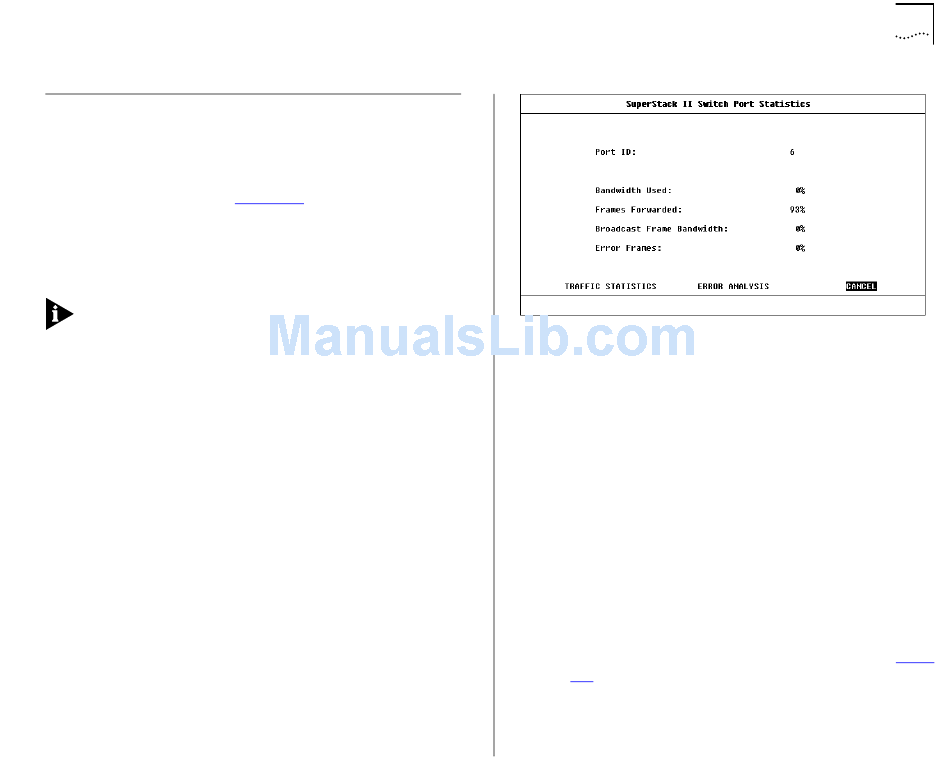

Figure 6-2 Port Statistics screen
Frames Forwarded This counter provides a running
average of the proportion of frames received by the
port that are forwarded, and is expressed as a per-
centage of all frames received by the port. A sam-
pling period of 1 minute is used.
Broadcast Frame Bandwidth This counter provides
a running average of the broadcast frame band-
width used by the port, and is expressed as a per-
centage of the maximum bandwidth available for
the port. A sampling period of 5 seconds is used.
Error Frames This counter provides a running aver-
age of the number of errors per 10,000 frames
received by the port, and is expressed as a percent-
age. Refer to the field description for Errors on
6-6.
Port Statistics 6-3
