Summary Statistics

With the Switch Management screen displayed,
choose the management level unit, then select the
STATISTICS button. The Summary Statistics screen is
displayed as shown in
The Summary Statistics screen lists values for the
current counter against every port on the Switch
and it is refreshed approximately every 2 seconds.
Once values have reached approximately
4,000,000,000 they are reset to zero.
To view values for a particular counter, select the
first button displayed at the foot of the Summary
Statistics screen. Pressing the spacebar then toggles
through the available counters.
FRAMES RECEIVED Displays the total number of
frames that have been received by the current port,
including fragments and frames with errors.
FRAMES TRANSMITTED Displays the total number
of frames successfully transmitted by the current
port.
FRAMES FORWARDED Displays the total number
of frames that were received by the current port
and forwarded to other ports.
FRAMES FILTERED Displays the total number of
frames that were filtered because the destination
station was on the same segment (port) as the
source station.
M S
ONITORING AND TATISTICS
Figure 6-1.

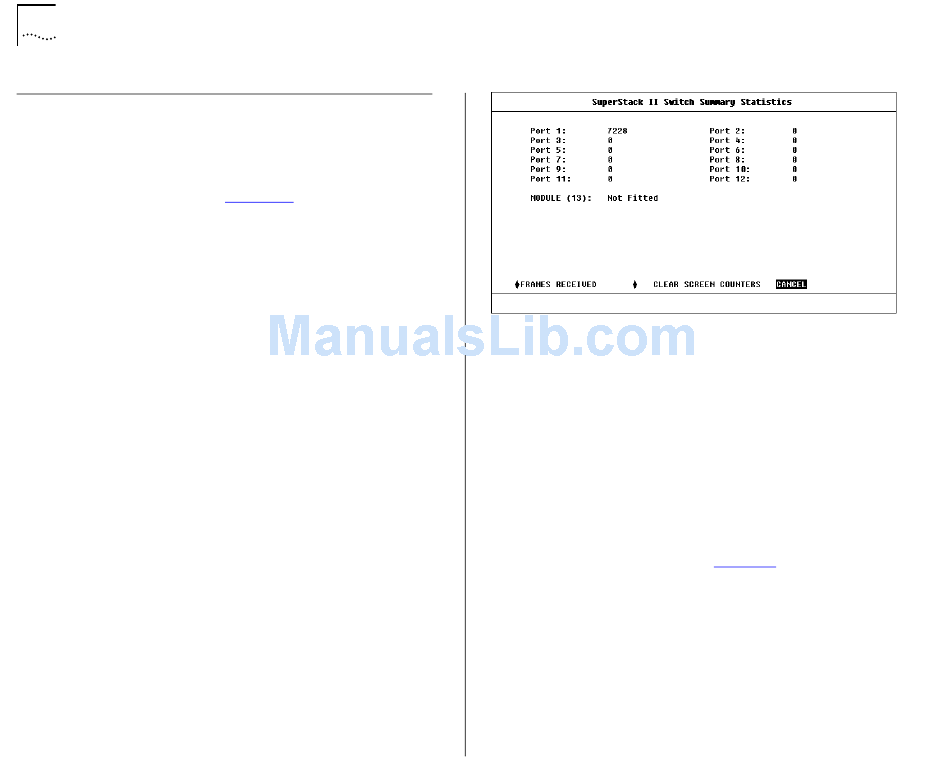

Figure 6-1 Summary Statistics screen
MULTI/BROADCAST (RX) Displays the total number
of frames received by the current port that are
addressed to a multicast or broadcast address.
MULTI/BROADCAST (TX) Displays the total number
of frames transmitted by the current port that are
addressed to a multicast or broadcast address.
ERRORS Displays the total number of errors that
have occurred on the current port. Refer to the field
description for Errors on
CLEAR SCREEN COUNTERS Use this button to set
all counters shown on the screen to zero. Use this
button for analysis if you wish to see changes in
counters over a short period of time. This button
does not clear the counters on the device.
page 6-6.
