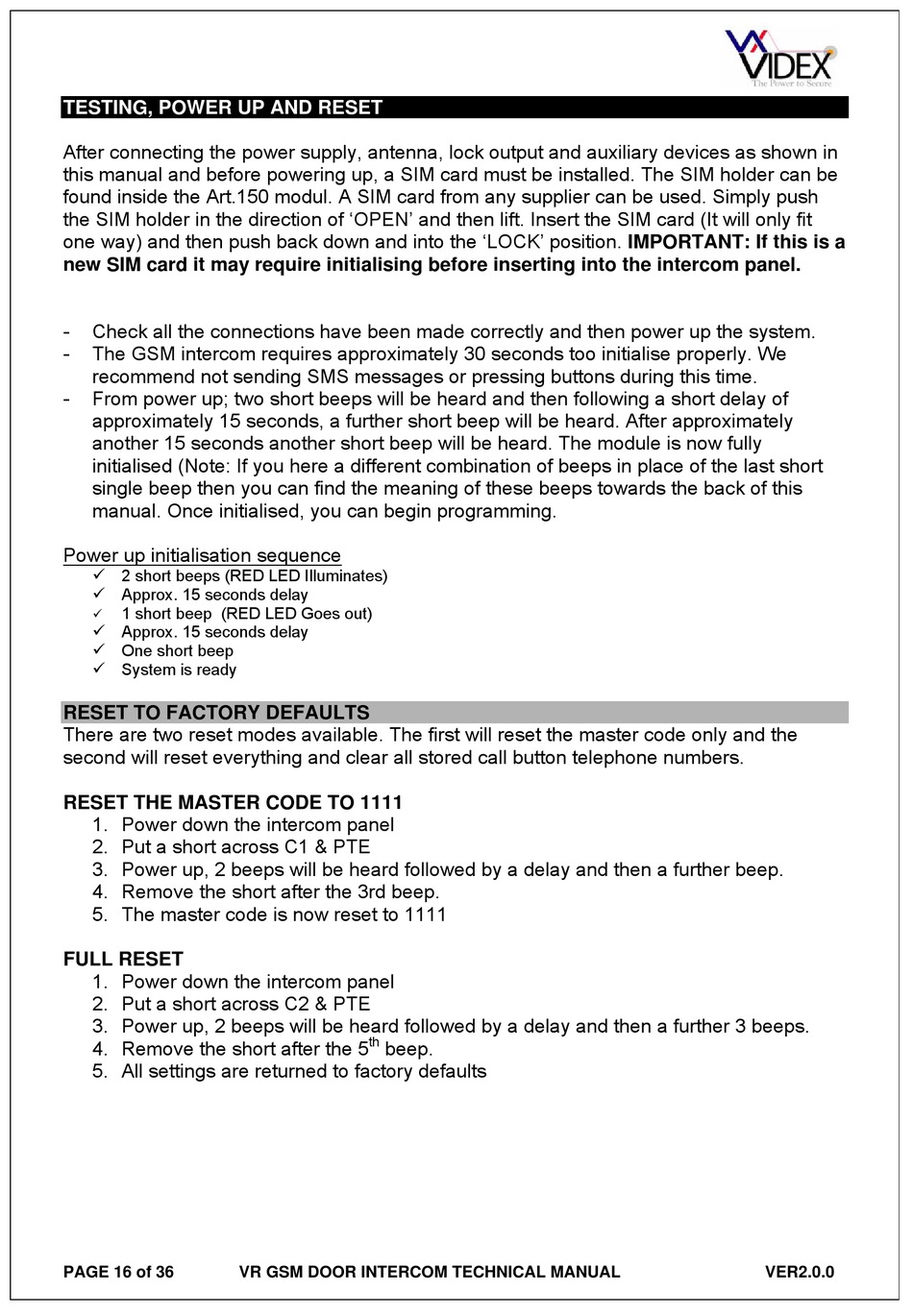

TESTING, POWER UP AND RESET
After connecting the power supply, antenna, lock output and auxiliary devices as shown in
this manual and before powering up, a SIM card must be installed. The SIM holder can be
found inside the Art.150 modul. A SIM card from any supplier can be used. Simply push
the SIM holder in the direction of 'OPEN' and then lift. Insert the SIM card (It will only fit
one way) and then push back down and into the 'LOCK' position. IMPORTANT: If this is a
new SIM card it may require initialising before inserting into the intercom panel.
-
Check all the connections have been made correctly and then power up the system.
-
The GSM intercom requires approximately 30 seconds too initialise properly. We
recommend not sending SMS messages or pressing buttons during this time.
-
From power up; two short beeps will be heard and then following a short delay of
approximately 15 seconds, a further short beep will be heard. After approximately
another 15 seconds another short beep will be heard. The module is now fully
initialised (Note: If you here a different combination of beeps in place of the last short
single beep then you can find the meaning of these beeps towards the back of this
manual. Once initialised, you can begin programming.
Power up initialisation sequence
2 short beeps (RED LED Illuminates)
Approx. 15 seconds delay
1 short beep (RED LED Goes out)
Approx. 15 seconds delay
One short beep
System is ready
RESET TO FACTORY DEFAULTS
There are two reset modes available. The first will reset the master code only and the
second will reset everything and clear all stored call button telephone numbers.
RESET THE MASTER CODE TO 1111
1. Power down the intercom panel
2. Put a short across C1 & PTE
3. Power up, 2 beeps will be heard followed by a delay and then a further beep.
4. Remove the short after the 3rd beep.
5. The master code is now reset to 1111
FULL RESET
1. Power down the intercom panel
2. Put a short across C2 & PTE
3. Power up, 2 beeps will be heard followed by a delay and then a further 3 beeps.
4. Remove the short after the 5
5. All settings are returned to factory defaults
PAGE 16 of 36
th
beep.
VR GSM DOOR INTERCOM TECHNICAL MANUAL
VER2.0.0
