Videx 5188 Instructions Manual

5000 Series Eclipse Range
Art. 5188

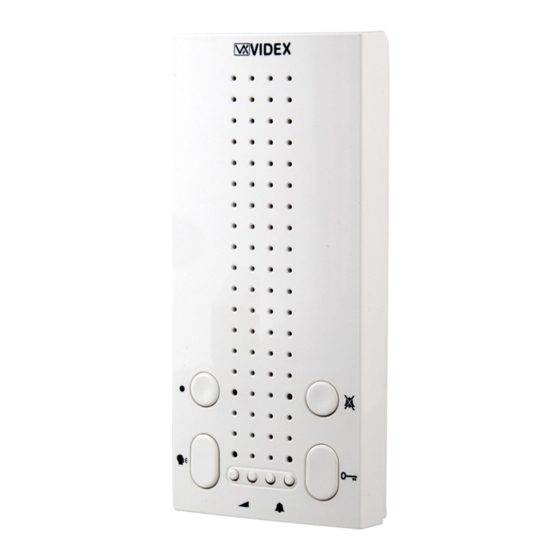

Hands free intercom
1 3
2 4

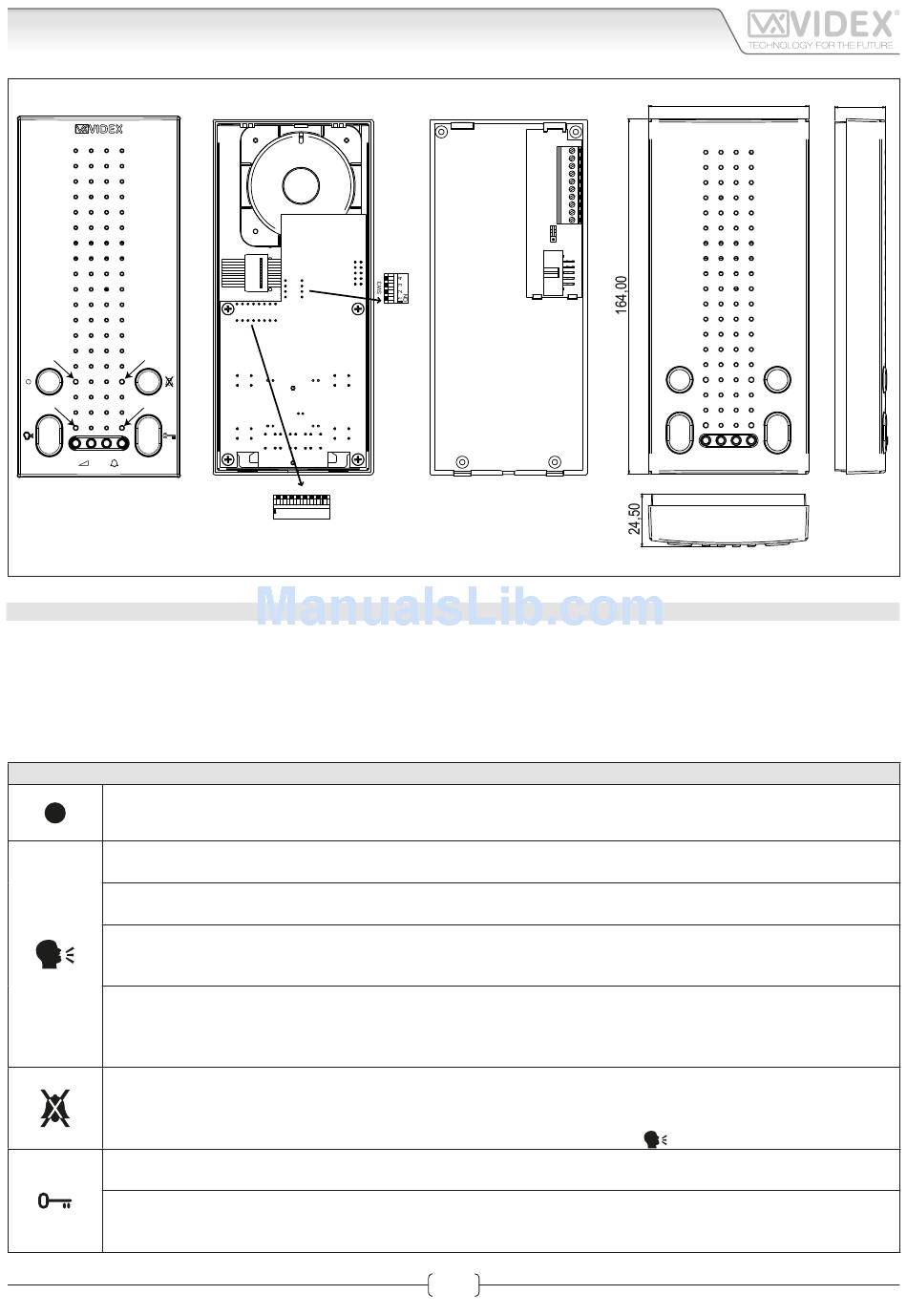

Fig. 1
DESCRIPTION
Voice switched hands free intercom with buttons to control "answer/end conversation/recall/simplex conversation", "door open/
intercommunicating call", "privacy on/off" (programmable duration) and "BUS relay control" (Art. 2305) button. In addition there
are 4 LED's* to indicate the status of "answer/end conversation", "door open/closed", "privacy on/off" and programming status. Call
tone and loudspeaker volume controls, through assigned buttons, are also incorporated on this model. In addition to programming
required from the VX2300 digital system (address, extension address and intercommunication mode) it is possible to program the
melody, the number of rings and the privacy service duration. Surface wall mount installation.
* The operation of some LED's and the functions described may require additional cabling.
PUSH BUTTONS, LEDS AND CONTROLS (FIG. 1)
Bus Relay Button to Activate bus relay board Art. 2305.
To activate a bus relay press as many times as the address value of the relay.
Answer button.
On an incoming call, operation of this button allows the user to answer and converse with the visitor. LED 2 will illuminate.
Camera recall push button.
Press as many times as the DEVICE N. of the door station to switch on.
Switch off button.
With the system switched on, momentary operation of the button will switch the video monitor off. The intercom
will also automatically switch off after a time delay if the button is not pressed. LED 2 will switch off.
Simplex button.
Pressing and holding the button for more than 3 seconds will switch the intercom into SIMPLEX speech mode. Press and hold
the button to speak to the caller (LED 2 will flash rapidly), release the button to listen (LED 2 will flash slowly). If the button is
not pressed for 10 seconds the intercom will switch off. The intercom will revert to duplex speech when another call is made.
Privacy ON-OFF push button.
• If the unit is switched on, press and keep pressed this button for more than 3 seconds to enable/disable the ser-
vice. The relative LED will illuminate when the privacy service is enabled.
• If the unit is switched off, keep this button pressed together with the "speak" button
Intercommunicating call button.
For an intercommunicating call, when the intercom is in stand-by, press as many times as the extension or address value to call.
Door open button.
During a call, operation of this button will activate the "door open" relay (NO1, NC1, COM1). LED 4 will illuminate if
terminal 6 has been connected to a door contact.
Art. 5188 - Installation instructions
SW1
1 2 3 4 5 6 7 8
ON
A
B
JP1
1
74,00
until the privacy LED switches ON.
66250800-EN - V2.0 - 08/04/15
23,50
