4000 Series
Art. 4284
Digital to functional interface with built-in speaker unit & camera
B
C
D

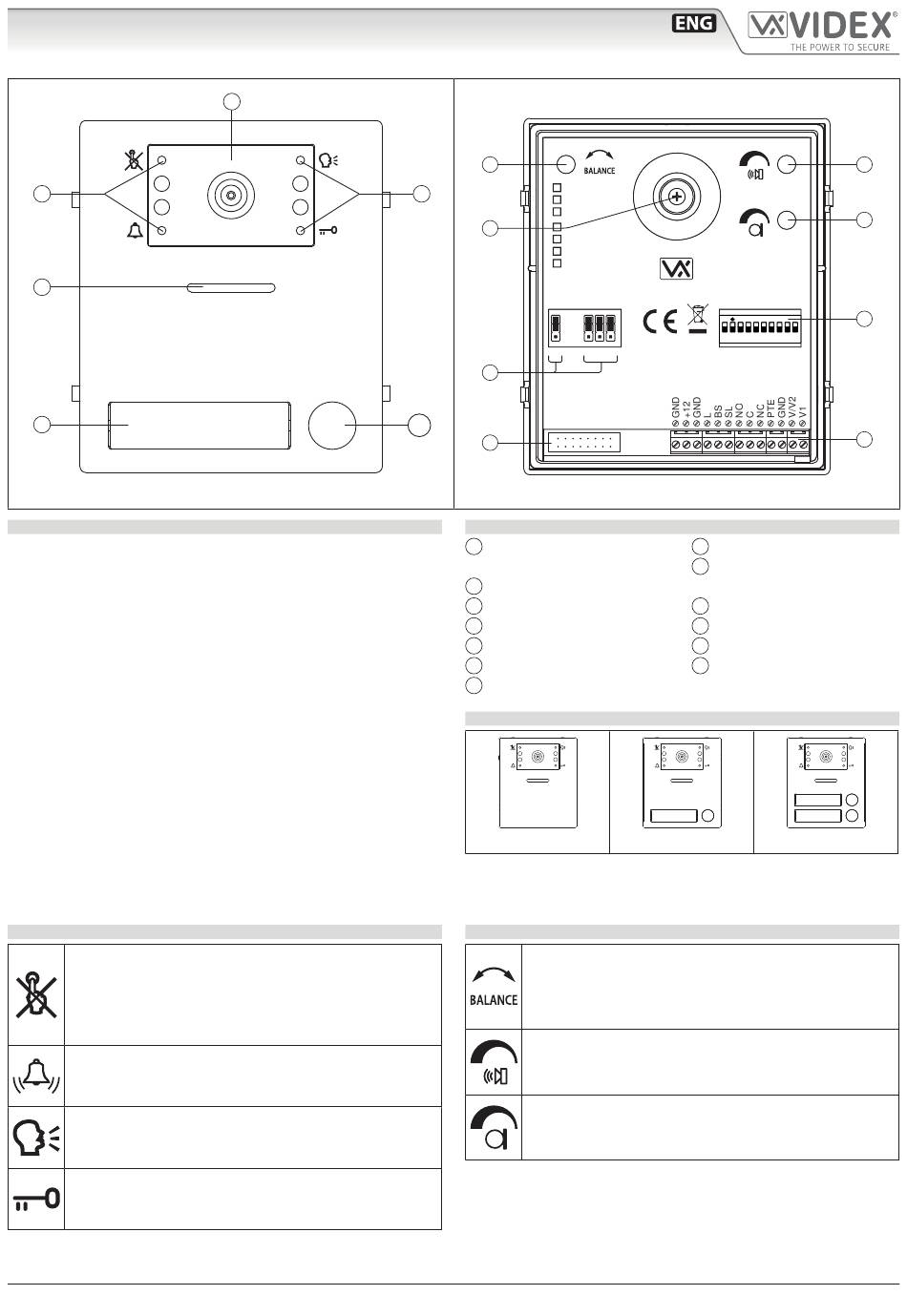

Fig. 1 Front
DESCRIPTION
The Art. 4284 unit is a digital front panel based on a "2 wire" BUS
intercom system that enables the connection of traditional push
buttons. It incorporates the functional interface connections
from functional to digital, the speaker unit module with 0, 1 or
2 call buttons and includes a high quality colour CMOS Camera
with autoiris lens and white light illumination LEDs.
This device enables the connection of up to 40 functional push
buttons using standard 4000 Series extension module panels
Art. 4042, Art. 4043, Art. 4044, Art. 4045 and relevant double but-
ton version Art. 4042D, Art. 4043D, Art. 4044D and Art. 4045D.
The push buttons already fitted to the module are to be sub-
tracted from the number of those to be inserted, i.e. 2 or 1 ac-
cording to the model.
The module built-in buttons, 1 or 2 (Art. 4284-1 or Art. 4284-2)
are set as 1st ID PHONE or 1st and 2nd of the addresses group
selected by dip-switches 2, 3 and 4. All the modules must be as-
sembled using the 4000 Series flush or surface mounting units.
The Art.  4284 can work with any intercom/videophone for
VX2200 digital system.
LEDS
The first LED (red), if switched ON, indicates that it is
not possible to make a call because a call or a conver-
sation is in progress (from the outdoor station from
which you are calling or from another outdoor station
on systems with multiple entrances).
The second LED (red), if switched ON, indicates that a
call is in progress. The LED will be switched OFF when
the call is answered.
The third LED (yellow), if switched ON, indicates that it is
possible to speak. The LED will be switched OFF at the end
of conversation (or at the end of the conversation time).
The fourth LED (green), if switched ON, means that the
door lock has been operated. It will be switched OFF at
the end of the "door opening" time.
Art. 4284
- Installation instructions
A
F
4284-0
B
4284-1
4284-2
I
STEEL
ALI
HIGH BRASS
MATTE
J1
J2 J3 J4
L
EXPANSION
BUTTONS
E
N
Fig. 2 Back
LEGEND
Camera with illumination
A
LEDs
Operation LEDs
B
Loudspeaker
C
Card name holder
D
Call push button
E
Balance
F
Loudspeaker volume
G
AVAILABLE VERSIONS
Art. 4284-0
CONTROLS
Balance
Prevent Larsen effect on bidirectional audio conversation.
Refer to the Speech adjustment of "VX2200 - Gener-
al directions for installation" techincal manual
Loudspeaker volume
Adjust the loudspeaker volume.
Rotate clockwise to decrease or anti-clockwise to increase
Microphone volume
Adjust the microphone volume.
Rotate clockwise to decrease or anti-clockwise to increase
- 1 -
Made in Italy
ON
ON
1 2 3 4 5 6 7 8 9 10
1 2 3 4 5 6 7 8 9 10
SW
Microphone volume
H
Camera horizontal and
I
vertical adjustmen
Jumpers
L
10 way dip-switch
M
IDC male connectors
N
Connection terminals
O
1
Art. 4284-1
Art. 4284-2
66251730 - V4.2 - 31/05/19
Rev.0.1
G
H
M
O
2
1
