9.6.1 Maintenance procedures prerequisite

Before developing the topics, it is important to note that there is a major prerequisite
for each of these procedures. The engineers PC must be configured to be able to
access both the IP network on which the Webdynhome is currently configured as well
as the Webdynhome factory default IP network. This multiple simultaneous IP
network configuration is only supported from Windows 2000 onwards.
In order to verify whether your PC is configured to enable these operations, please
follow the next steps :

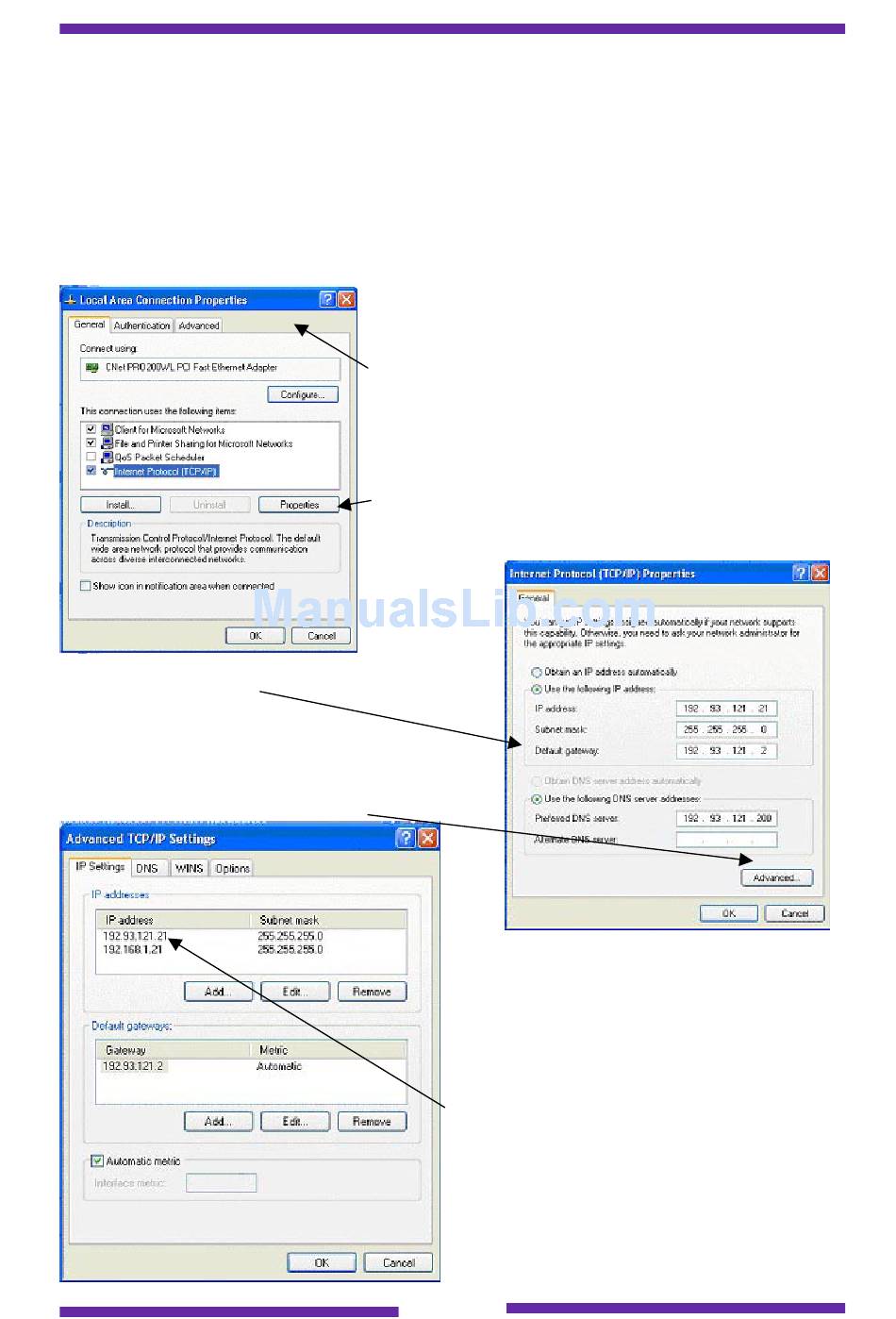

The current IP address configuration for the
PC will be displayed.
This is the PC's primary IP address and must
be on the same subnet as the Webdynhome.
Now click on the Advanced button
Open the Control Panel for your PC and select the
Network Connections option.
After selecting the Local Area Network you will be
presented with a dialog box looking something like
this :
Select the Internet Protocol (TCP/IP) item and then
click on the properties button.
This menu displays all of the current IP
addresses configured for the PC. It is
imperative that there is an IP address
configured for the 192.168.1.X subnet
(with the exception of 192.168.1.12 which
is the factory address of the
Webdynhome.
In the example shown here the PC is
configured as host 21 on the following
subnets : 192.93.121 and 192.168.1
Page 59
