You will notice that the environmental elements have been grouped under 4 different
headings :
Lighting : Different types of lighting controls.
Motorised : Any elements that use electrical motors to control movement.
Other : Any other type of device controlled by the Webdynhome logical or physical
outputs.
Inputs : Used to define the 6 physical inputs connected to the Webdynhome.
As you add the different elements to a zone they become available both within the
zone control menus but also to the control sequences.

7.3.1 Lighting configuration

There are four types of lighting elements currently supported. The different screens
associated to their configuration are illustrated in this section.

7.3.1.1 X10 lighting

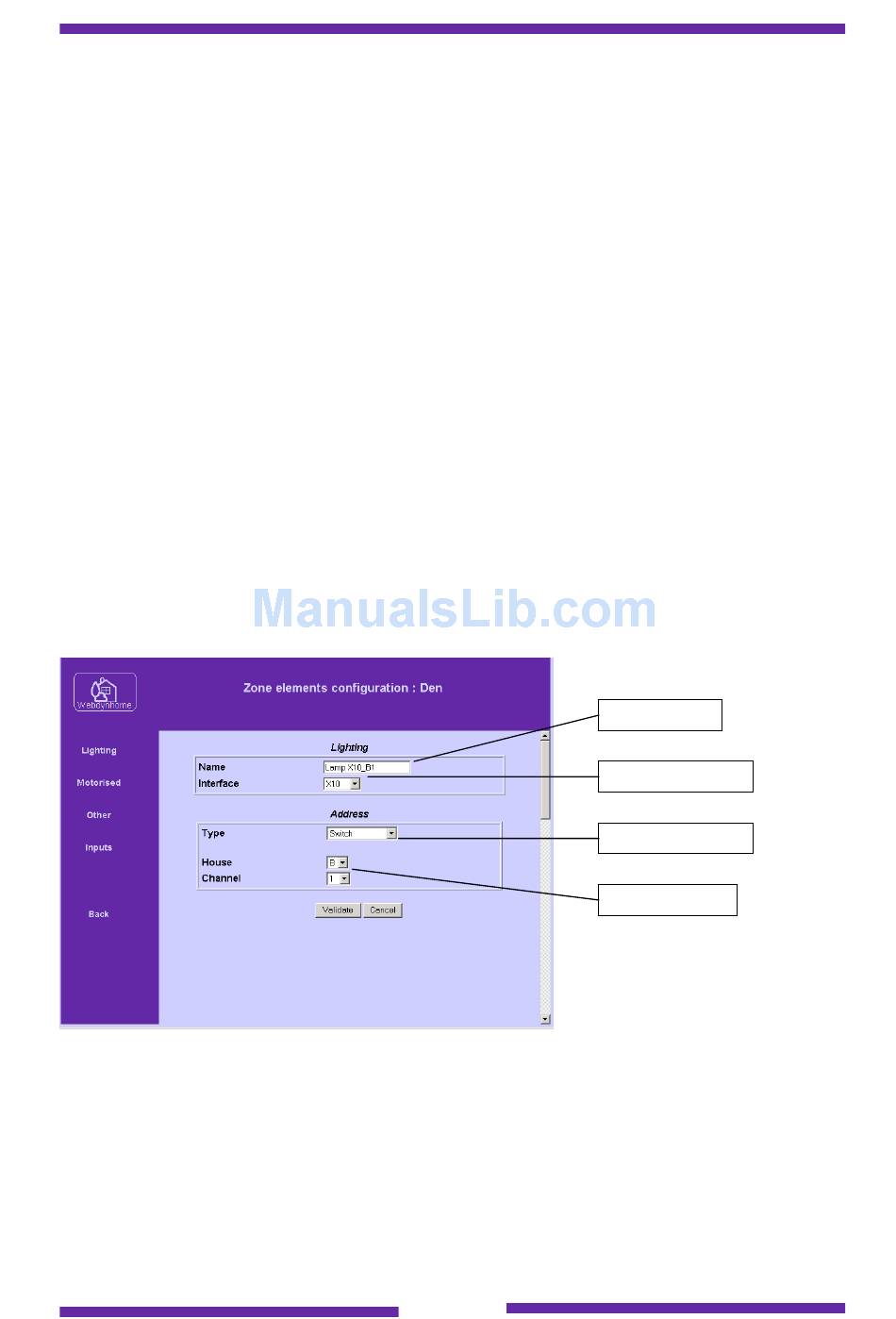

The screen below shows the configuration of an X10 controlled lighting element :
Besides simple on/off modules, there is support for old style X10 dimmer modules
and the newer Leviton modules.

7.3.1.2 Relay controlled lighting

Relay controlled lighting is currently restricted to simple on/off commands, although a
pulse option is available should you wish to switch to a state during a given number
of seconds. A future version will include 0-10V analog outputs.
Page 37
Light name
Interface type
Module type
X10 address
