Webdyn home Installation Manual page 54

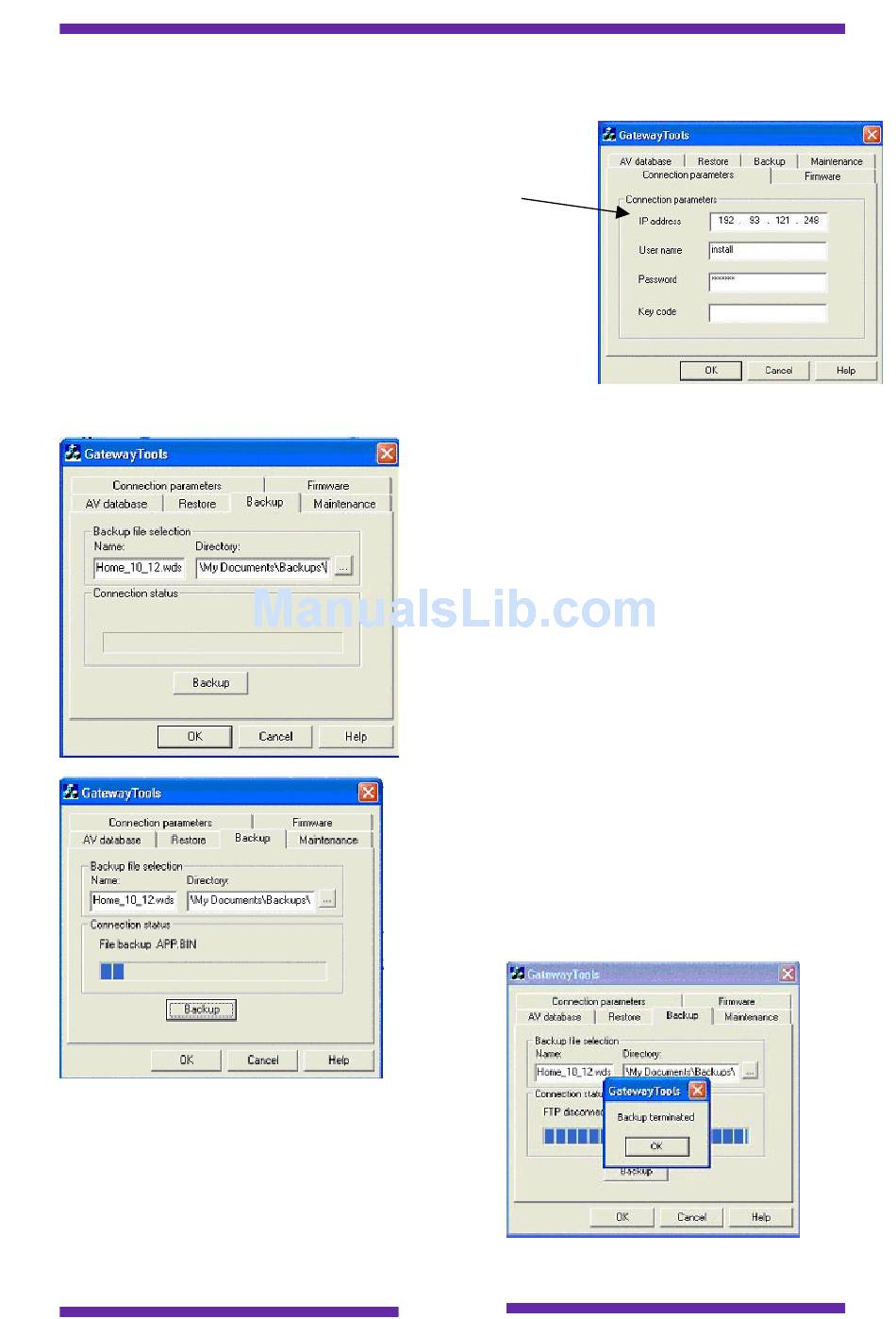

The gateway tools backup procedure is described below :
a. Launch the Gateway Tools application.
b. Make sure that you have entered the
current connection parameters in the
Parameters menu tab (Webdynhome IP
address, user ID "install" and the installers
password)
c. Select the Backup menu tab
d. Enter a backup filename and select the
local PC disk or mapped network drive
(d: -> z:) and directory where you wish to
store the backup image.
Note : You must include the suffix .WDS in the
backup filename
After entering the name and specifying the
directory where the backup is to be stored,
click on the Backup button.
You may follow the progress via the message
window.
At the end of the backup process the following
message will appear.
Page 54
