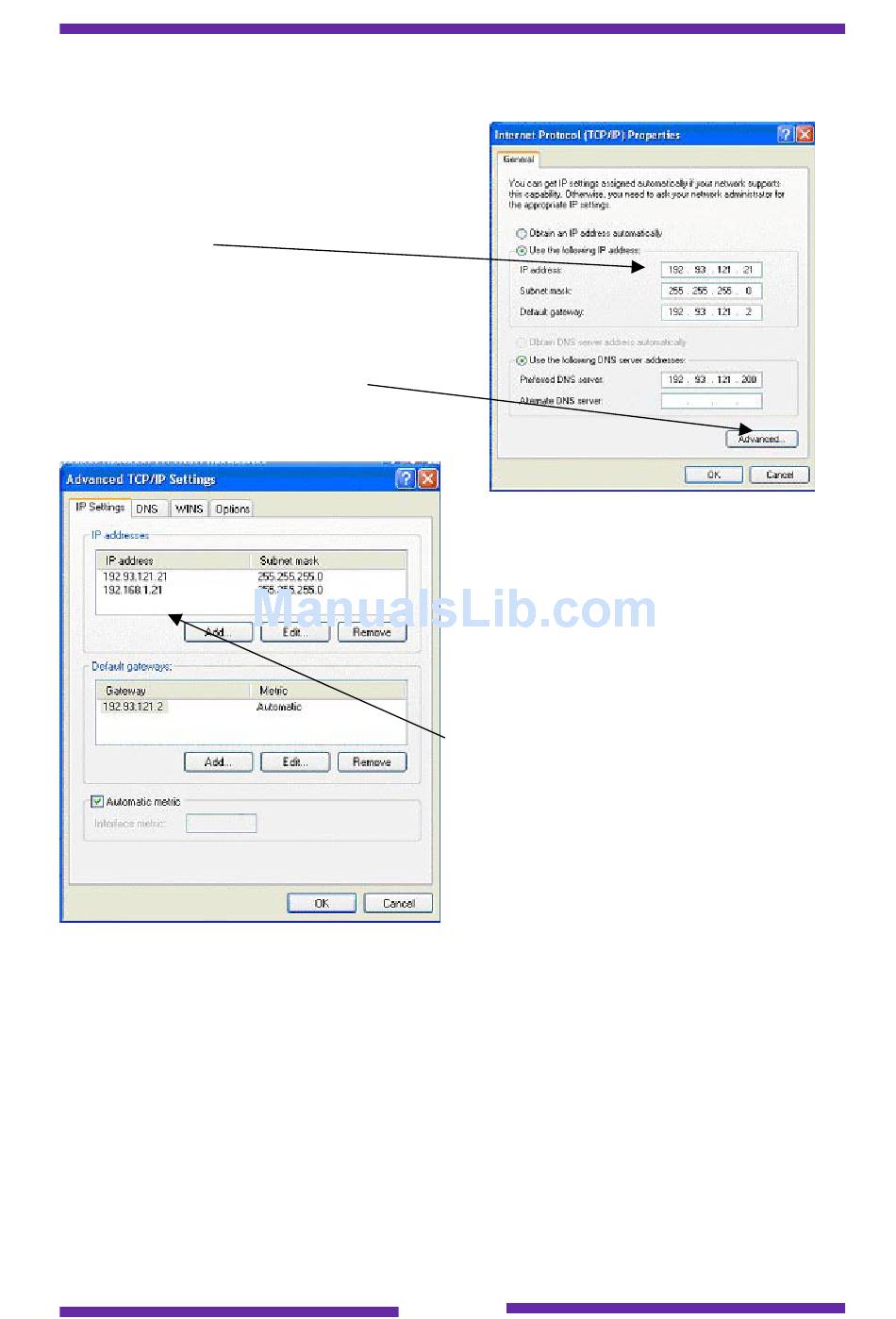

Webdyn home Installation Manual page 19

The current IP address configuration for the
PC will be displayed.
This is the PC's primary IP address and must
be on the same subnet as the Webdynhome.
Now click on the Advanced button
Assuming that the previously described network parameters are correct then the PC
will be able to connect to the Webdynhome.
In order to connect to an "out of the box" Webdynhome you need to know the factory
installed IP address
IP address
Network subnet mask
:
Page 19
This menu displays all of the current IP
addresses configured for the PC. It is
imperative that there is an IP address
configured for the 192.168.1.X subnet
(with the exception of 192.168.1.12 which
is the factory address of the
Webdynhome.
In the example shown here the PC is
configured as host 21 on the following
subnets : 192.93.121 and 192.168.1
192.168.1.12
255.255.255.0
