The connector should be counted from right to left, i.e. Pin 1 is the farthest to the
right.
Pin
1
2
3
4
5
6
7
8
9
10
11
12
Pin
13
14
15
16

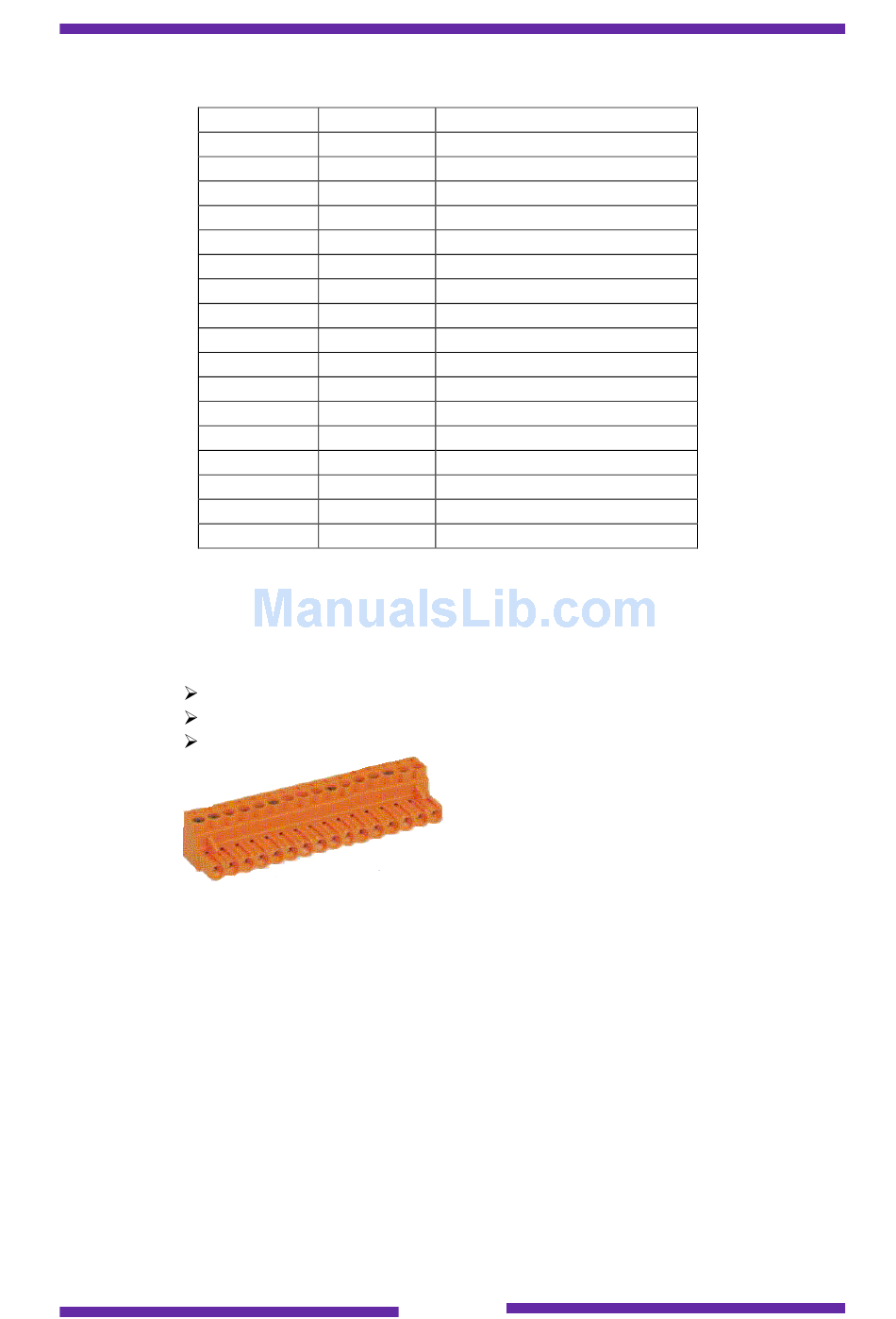

5.1.2.2 Connector specifications

16 point terminal block
Wire section maximum 1.5mm²
Screw head 2.0mm

5.1.2.3 Wiring procedure

1) Bare the wire for a length of 4mm +/-1mm
2) Select the right contact and undo the screw
3) Insert the bare wire into the contact
4) Tighten the associated screw
Signal Description
Input 1 Input for dry contact 1
GND Chassis ground
Input 2 Input for dry contact 2
GND Chassis ground
Input 3 Input for dry contact 3
GND Chassis ground
Input 4 Input for dry contact 4
GND Chassis ground
Input 5 Input for dry contact 5
GND Chassis ground
Input 6 Input for dry contact 6
GND Chassis ground
Signal Description
Output 1-1 Output relay contact 1-1
Output 1-2 Output relay contact 1-2
Output 2-1 Output relay contact 2-1
Output 2-2 Output relay contact 2-2
