™ CPE & Digital Access Gateways

SIP

MediaPack™ MP-40x

User's Manual

Version 2.2

Document #: LTRT-83702

July 2007

Table of Contents

Need help?

Do you have a question about the MediaPack MP-40x series and is the answer not in the manual?

Questions and answers

Summary of Contents for AudioCodes MediaPack MP-40x series

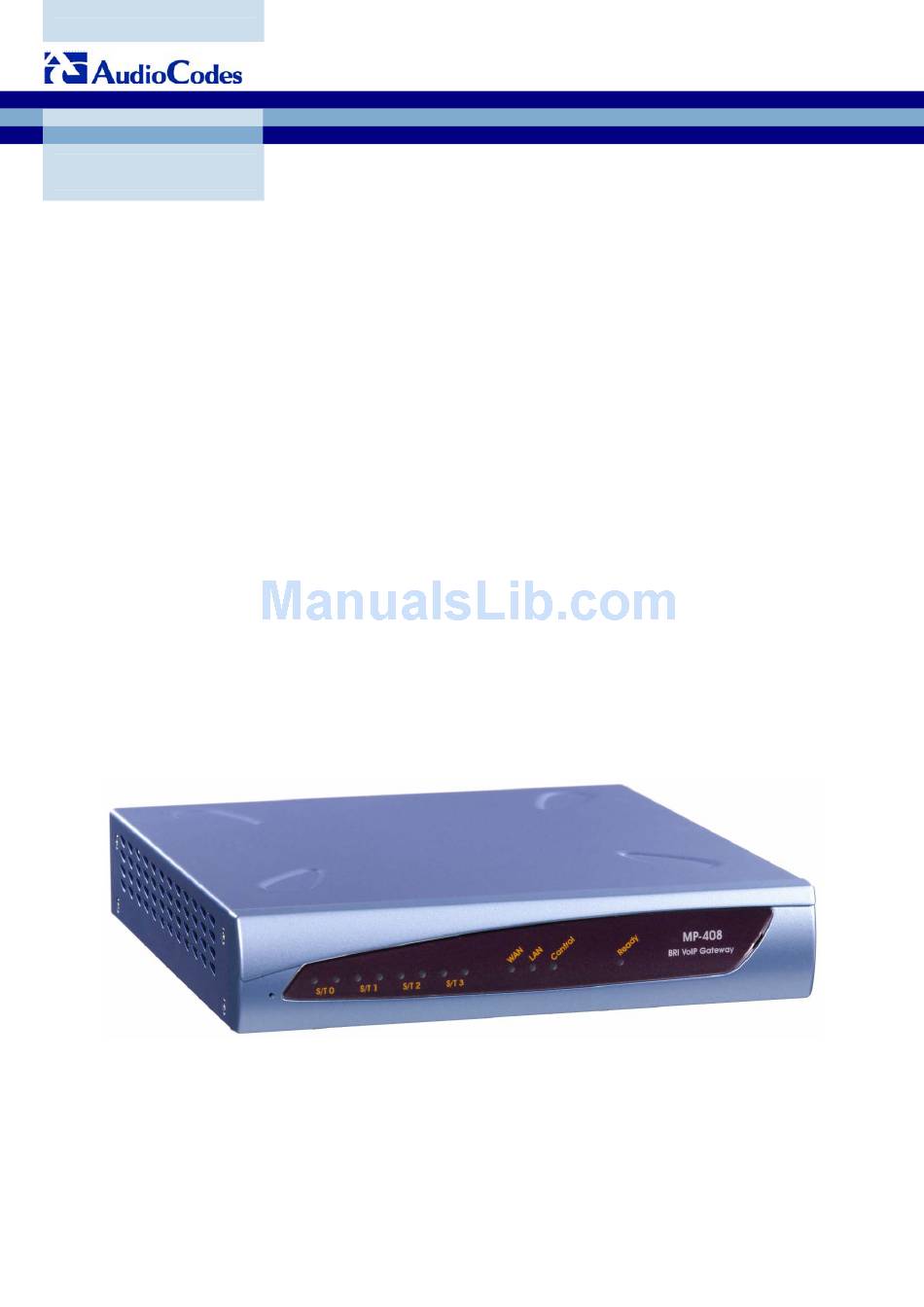

Page 1 ™ CPE & Digital Access Gateways MediaPack™ MP-40x User’s Manual Version 2.2 Document #: LTRT-83702 July 2007...
Page 3: Table Of Contents
User's Manual Contents Table of Contents Overview ......................15 Introduction ......................15 Gateway Description ....................16 SIP Overview ......................17 MediaPack Features ....................18 1.4.1 General Features.....................18 1.4.2 SIP Features......................18 1.4.3 Telephony Capabilities ....................20 1.4.3.1 Supplementary Services ................. 20 1.4.3.1.1 Call Hold and Retrieve ............20 1.4.3.1.2 Call Transfer................20 1.4.3.1.3...
Page 4 MediaPack BRI Series 4.1.7 Configuring Coder Groups..................58 4.1.8 Configuring IP to Tel Routing Table ................59 4.1.9 Configuring Tel to IP Routing Table ................60 4.1.10 Saving the Configuration Settings ................61 4.1.11 Configuring the ISDN Telephone Units ..............61 4.1.12 Establishing a Call between Units A and B .............62 MediaPack Configuration Tools...............63 Configuration Concepts..................
Page 5 User's Manual Contents 6.2.4 Profile Definitions....................110 6.2.4.1 IP Profiles ....................110 6.2.4.2 ISDN Profiles..................113 6.2.4.3 Coder Group Profiles................115 Advanced Configuration..................118 6.3.1 Network Settings....................118 6.3.1.1 IP Interfaces ..................118 6.3.1.2 PPPoE ....................122 6.3.1.3 Static Routes ..................123 6.3.1.4 Dynamic Routes ..................
Page 6 MediaPack BRI Series B MediaPack Startup Process ................173 C Technical Specifications ................175 D SIP / ISDN Release Reason Mapping.............177 D.1 Mapping of ISDN Release Reason to SIP Response .......... 177 D.2 Mapping of SIP Response to ISDN Release Reason .......... 179 User's Manual Document #: LTRT-83702...
Page 7 User's Manual Contents List of Figures Figure 1-1: Typical MediaPack BRI VoIP Application ................17 Figure 1-2: NAT Functioning ........................22 Figure 2-1: MediaPack Front Panel......................23 Figure 2-2: MediaPack Rear Panel Connectors..................24 Figure 3-1: Desktop or Shelf Mounting....................28 Figure 3-2: MediaPack with Brackets for Rack Installation ..............29 Figure 3-3: MediaPack Wall Mounting ....................30 Figure 3-4: RJ-45 Ethernet Connector Pinouts ..................31 Figure 3-5: RJ-45 Ethernet Connector Pinouts ..................31...
Page 8 MediaPack BRI Series Figure 6-18: Coder Groups Screen ..................... 116 Figure 6-19: IP Interfaces Screen ....................... 119 Figure 6-20: PPPoE Screen ........................ 122 Figure 6-21: Static Routing Table Screen ................... 124 Figure 6-22: Dynamic Routing Table Screen ..................125 Figure 6-23: QoS Source Classes Screen ..................127 Figure 6-24: TOS/Preference and DSCP Bits ..................
Page 9 User's Manual Contents List of Tables Table 1-1: MP-40x Models Descriptions ....................15 Table 2-1: MediaPack Front Panel LEDs Description................24 Table 2-2: MediaPack Rear Panel Component Descriptions..............24 Table 2-3: Ethernet LED Description within RJ-45 Ports on the Rear Panel .........25 Table 3-1: RJ-45 Pinouts for ISDN S/T Interface ...................32 Table 4-1: MediaPack Default Networking Parameters .................41 Table 5-1: Dialing Plan Notations......................67 Table 5-2: Useful CLI Command for Facilitating Configuration..............70...
Page 10 MediaPack BRI Series Reader's Notes User's Manual Document #: LTRT-83702...
Page 11: Weee Eu Directive
User's Manual Notices Notice This document describes the AudioCodes MediaPack MP-40x series BRI Voice-over-IP (VoIP) gateways. Information contained in this document is believed to be accurate and reliable at the time of printing. However, due to ongoing product improvements and revisions, AudioCodes cannot guarantee accuracy of printed material after the Date Published nor can it accept responsibility for errors or omissions.
Page 12: Typographical Conventions
MediaPack BRI Series Typographical Conventions This guide uses the following typographical conventions: Element Convention Used Example Screen names Enclosed in single quotation Open the 'Coders' screen. marks. Accessing menus, Bolded with the path given as: Access the 'Coders' screen (Protocol submenus and their Menu name (from menu bar Management menu >...
Page 13 User's Manual Notices Warning: The MediaPack is supplied as a sealed unit and must only be serviced by qualified service personnel. Warning: Disconnect the MediaPack from the mains and from the Telephone Network Voltage (TNV) before servicing. Note: MediaPack and MP-40x refer to the MP-408, MP-404, and MP-402 BRI VoIP gateways.
Page 14 MediaPack BRI Series Reader's Notes User's Manual Document #: LTRT-83702...
Page 15: Overview
User's Manual 1. Overview Overview Introduction This document provides you with information on installing, configuring, and operating the MediaPack MP-40x BRI VoIP media gateway series. The various models of the MediaPack 40x Series are listed in the table below. Table 1-1: MP-40x Models Descriptions Model Description MP-402 /BRI /ST /AC /LL...
Page 16: Gateway Description
MediaPack BRI Series Gateway Description The MP-40x (MediaPack) is an Integrated Services Digital Network (ISDN), Basic-Rate Interface (BRI) VoIP media gateway. The MediaPack is best suited for small to medium size enterprises, branch offices, or residential media gateway solutions implementing ISDN.
Page 17: Sip Overview
User's Manual 1. Overview The figure below illustrates a typical MediaPack VoIP application. Figure 1-1: Typical MediaPack BRI VoIP Application SIP Overview SIP (Session Initialization Protocol) is an application-layer control (signaling) protocol used on the MediaPack for creating, modifying, and terminating sessions with one or more participants.
Page 18: Mediapack Features
MediaPack BRI Series MediaPack Features This section provides a high-level overview of some of the many MediaPack supported features. 1.4.1 General Features Superior, high quality Voice, Data, and Fax over IP networks Toll quality voice compression Proven integration with leading PBXs, IP-PBXs, Softswitches and SIP servers Spans a range of 1 to 4 ISDN ports Lifeline or Fallback assembly options Configurable NT or TE support...
Page 19 User's Manual 1. Overview Working with Redirect server and handling 3xx responses. Early media (supporting 183 Session Progress). PRACK reliable provisional responses (RFC 3262). Call Hold and Transfer Supplementary services using REFER. Supports RFC 3581, Symmetric Response Routing. Supports network asserted identity (RFC 3325 and RFC 3323). RFC 2833 relay for Dual Tone Multi Frequency (DTMF) digits, including payload type negotiation.
Page 20: Telephony Capabilities
MediaPack BRI Series 1.4.3 Telephony Capabilities 1.4.3.1 Supplementary Services The MediaPack SIP gateway supports the following supplementary services: Hold / Retrieve; refer to 'Call Hold and Retrieve' below. Transfer (Refer and Replaces); refer to 'Call Transfer' on page 20. Call Forward (3xx Redirect Responses); refer to 'Call Forward' on page 21.
Page 21: 1.4.3.1.3 Call Forward
User's Manual 1. Overview 1.4.3.1.3 Call Forward The gateway supports call forward using 3xx responses. If the gateway receives a 3xx response to an invite, the call is forwarded to the new destination. 1.4.3.1.4 Call Waiting The gateway supports Call Waiting using the SIP Queued message. If a Queued message is received, the gateway plays the Queued tone to the ISDN phone.
Page 22: Network Address Translation (Nat) Support
MediaPack BRI Series 1.4.4.2 Network Address Translation (NAT) Support The below illustrates the supported NAT architecture. Figure 1-2: NAT Functioning The gateway uses NAT on the WAN interface. To allow successful calls to the WAN, the SIP must use the WAN IP address for signaling. To do this, set the SIP Local interface to the WAN interface (refer to 'SIP Proxy &...
Page 23: Mediapack Physical Description
User's Manual 2. MediaPack Physical Description MediaPack Physical Description This section provides detailed information on the hardware, the location and functionality of the LEDs, buttons and connectors on the front and rear panels of the MediaPack gateway. For detailed information on installing the MediaPack, refer to Chapter on page 27.
Page 24: Front Panel Leds
MediaPack BRI Series 2.1.1.2 Front Panel LEDs The table below lists and describes the front panel LEDs on the MediaPack. Table 2-1: MediaPack Front Panel LEDs Description Label Color State Function Ready Green Device Powered, self-test OK Orange Blinking Software Loading/Initialization Malfunction Control Green...
Page 25: Table 2-3: Ethernet Led Description Within Rj-45 Ports On The Rear Panel
User's Manual 2. MediaPack Physical Description The MediaPack rear panel provides two Ethernet LEDs per RJ-45 port. These LEDs are located within the RJ-45 socket. The table below describes the LED indication. Table 2-3: Ethernet LED Description within RJ-45 Ports on the Rear Panel LED Location Color State...
Page 26 MediaPack BRI Series Reader's Notes User's Manual Document #: LTRT-83702...
Page 27: Installing The Mediapack
Remove the MediaPack gateway from the carton. Check that there is no equipment damage. Check, retain and process any documents. Notify AudioCodes or your local supplier of any damage or discrepancies. Retain any diskettes or CDs. Package Contents Ensure that in addition to the MediaPack, the package contains:...
Page 28: Mounting The Mediapack
MediaPack BRI Series Mounting the MediaPack The MediaPack provides the following mounting options: Desktop mounted Wall mounted Installed in a standard 19-inch rack 3.3.1 Mounting the MediaPack on a Desktop The MediaPack provides four rubber feet for desktop mounting. The feet are located near each corner on the underside of the device, preventing the device from moving around on your desk.
Page 29: Figure 3-2: Mediapack With Brackets For Rack Installation
User's Manual 3. Installing the MediaPack To install the MediaPack in a 19-inch rack: Remove the two screws on one side of the device nearest the front panel. Insert the peg on the short bracket into the third air vent down on the column of air vents nearest the front panel.
Page 30: Mounting The Mediapack On A Wall
MediaPack BRI Series 3.3.3 Mounting the MediaPack on a Wall The MediaPack is mounted on a wall by the addition of two short (equal-length) supplied brackets. The MediaPack with brackets for wall mount is shown in Figure 3-3. To mount the MediaPack on a wall: Remove the screw on the side of the device that is nearest the bottom and the front panel.
Page 31: Connecting The Lan Interface
User's Manual 3. Installing the MediaPack Connecting the RS-232 serial interface (refer to Section 'Connecting the RS-232 Serial Interface' on page 34) Connecting the Lifeline port (refer to Section 'Connecting the Lifeline Port' on page 34) Connecting the PSTN Fallback port (refer to Section 'Connecting the PSTN Fallback Port' on page 36) Connecting to Power (refer to Section...
Page 32: Connecting The Isdn Bri S/T Interface
MediaPack BRI Series To connect the MediaPack to the WAN: Connect the RJ-45 connector, at the one end of the Ethernet Cat 5 cable (supplied) to the MediaPack's WAN port (labeled WAN). Connect the other end of the cable to the WAN network. Figure 3-6: MediaPack LAN and WAN Cabling 3.4.3 Connecting the ISDN BRI S/T Interface...
Page 33: Figure 3-7: Rj-45 Connector Pinouts For Isdn S/T Interface
User's Manual 3. Installing the MediaPack Figure 3-7: RJ-45 Connector Pinouts for ISDN S/T Interface To connect the BRI S/T interface: Connect the ISDN splitter cable's RJ-45 connector to one of the BRI S/T ports (labeled S/T) on the MediaPack's rear panel. Connect the ISDN terminal equipment to one of the RJ-45 ports on the ISDN splitter using an RJ-45 connector.
Page 34: Connecting The Rs-232 Serial Interface
MediaPack BRI Series 3.4.4 Connecting the RS-232 Serial Interface The RS-232 interface can be used for local configuration using Command Line Interface (CLI). For a description on accessing the CLI using the RS-232 interface, refer to Section 'RS-232 Interface' on page To connect the MediaPack's RS-232 interface, take the following step: Using a standard RS-232 straight cable (not a cross-over cable) with DB-9...
Page 35: Figure 3-10: Trunk Lifeline Cabling
User's Manual 3. Installing the MediaPack Figure 3-10: Trunk Lifeline Cabling Figure 3-11: Single ISDN Subscriber Lifeline Cabling Notes: • In the cable setup described above, the PSTN network is only available upon a power outage. However, the Trunk interface that is connected to the Lifeline port, can also be connected to an ISDN S/T interface port (except S/T 0), by using an S-bus splitter.
Page 36: Connecting The Pstn Fallback Port
MediaPack BRI Series 3.4.6 Connecting the PSTN Fallback Port The Fallback feature uses identical cabling as the normal ports. The PSTN fallback port allocation depends on the MediaPack model: MP-404 /BRI /ST /AC /FB: ports 0 and 1 are interconnected if the gateway is not powered MP-408 /BRI /ST /AC /FB: ports 0 and 1, and ports 2 and 3 are interconnected if the gateway is not powered...
Page 37: Connecting The Power Source
User's Manual 3. Installing the MediaPack 3.4.7 Connecting the Power Source The MediaPack is powered from an external power supply adapter (supplied), which connects to a standard electrical outlet. Figure 3-13: MediaPack Power Cabling Version 2.2 July 2007...
Page 38 MediaPack BRI Series Reader's Notes User's Manual Document #: LTRT-83702...
Page 39: Initial Configuration
User's Manual 4. Initial Configuration Initial Configuration This section leads you through the initial and basic configuration procedures for setting up the MediaPack. Initial configuration includes establishing IP connectivity with the device. The initial and basic configuration comprises the following steps: Connecting the MediaPack to your PC (refer to Section 'Connecting MediaPack's LAN Interface to your...
Page 40: Connecting Mediapack's Lan Interface To Your Pc
MediaPack BRI Series Figure 4-1: Network Architecture Example for Initial Configuration The initial configuration guides you through the basic, essential settings required to create a basic call between Unit A (Port 0; Ext # 1000) and Unit B (Port 0; Ext # 2000), by using either a Proxy Server or the Internal Routing tables.
Page 41: Configuring The Mediapack's Lan And Wan Ip Addresses
User's Manual 4. Initial Configuration In case of a ping request failure, verify the PC's IP configuration is correct and that the network cables are connected properly. If a failure continues, use the MediaPack's ‘Reset’ button at any time to restore the MediaPack networking parameters to their factory default values (refer to 'Restoring Factory Default Configuration' on page 152).
Page 42: Assigning An Ip Address Using Http
MediaPack BRI Series 4.1.2.1 Assigning an IP Address Using HTTP The procedure below describes how to configure the MediaPack's networking parameters using the embedded Web server. To assign an IP address using HTTP: Open a standard Web-browsing application such as Microsoft™ Internet Explorer™ or Firefox.
Page 43: Figure 4-4: Web Interface 'Quick Setup' Screen After Login
User's Manual 4. Initial Configuration Figure 4-4: Web Interface 'Quick Setup' Screen after Login Under the LAN IP Configuration group, define the LAN ‘IP Address’ and ‘Subnet Mask’ fields to correspond with your network IP settings. To define the LAN default gateway, refer to Step 8.
Page 44: Figure 4-5: Static Routing Table Screen
MediaPack BRI Series Under the WAN IP Configuration group, set the WAN ‘Interface Mode’ to one of the following: • Static: define the WAN static ‘IP Address’ and ‘Subnet Mask’ fields to correspond with your IP network settings. To define the WAN Default Gateway, refer to Step •...
Page 45: Assigning An Ip Address Using Cli
User's Manual 4. Initial Configuration Note: Internet Explorer’s security settings may block access to the gateway’s embedded Web server if they’re configured incorrectly. In such a scenario, the following message is displayed: "Unauthorized: Correct authorization is required for this area. Either your browser does not perform authorization or your authorization has failed.
Page 46 MediaPack BRI Series Configure the LAN interface IP address, by performing the following: From the main configuration mode, enter the “ip_interface” mode using the following command: 192.168.2.1<cfg># ip_interface LAN <CR> Configure the LAN interface static IP, using the following command: 192.168.2.1<if-ip>[LAN]#ipaddress <ip-address>...
Page 47 User's Manual 4. Initial Configuration Verify the new LAN IP settings by using the following command: <Newly assigned IP>(IF-IP)[LAN]# show ip interface LAN <CR> Configure the WAN interface IP address, by performing the following: From the main configuration mode, enter the “ip_interface” mode using the following command: 192.168.2.1<cfg># ip_interface WAN <CR>...
Page 48 MediaPack BRI Series Exit the WAN mode using the following command: 192.168.2.1(if-ip)[WAN]# exit <CR> Continue to Step 6 to configure the default gateway IP address ♦ DHCP: Ensure that you have a DHCP server in your WAN network. Enable the new configuration by typing the following command: 192.168.2.1(IF-IP)[WAN]# shutdown <CR>...
Page 49 User's Manual 4. Initial Configuration Enable the new configuration by typing the following command: 192.168.2.1(IF-IP)[WAN]# shutdown <CR> 192.168.2.1(IF-IP)[WAN]# no shutdown <CR> Verify the new WAN IP settings by typing the following command: 192.168.2.1(if-ip)[WAN]# show ip interface WAN <CR> Exit the WAN mode using the following command: 192.168.2.1(if-ip)[WAN]# exit <CR>...
Page 50: Connecting The Mediapack To The Network
MediaPack BRI Series 4.1.3 Connecting the MediaPack to the Network After you have configured the MediaPack's IP address so that it's in the same subnet as your network, you can connect the MediaPack to your network and then start working with your device (e.g., perform advanced configuration).
Page 51: Configuring The Isdn Ports
User's Manual 4. Initial Configuration 4.1.4 Configuring the ISDN Ports This subsection provides a brief description on how to configure the MediaPack's ISDN ports. This description includes the more important ISDN port configuration parameters such as Uni-side and ISDN interface-to-ISDN port mapping (refer to Figure 4-7).
Page 52: Figure 4-8: Isdn Ports Screen
MediaPack BRI Series Figure 4-8: ISDN Ports Screen From the 'ISDN Ports' drop-down list, select the ISDN port that you want to configure. From the 'Uni-side' drop-down list, select the type of ISDN port: • User: User side is used when the MediaPack’s port is connected to a network side entity such as an ISDN line or a PBX network interface.
Page 53: Configuring The Isdn Interfaces
User's Manual 4. Initial Configuration 4.1.5 Configuring the ISDN Interfaces The procedure below describes how to configure the ISDN interfaces. To configure the MediaPack ISDN interfaces, take the following 5 steps: Login to the MediaPack's embedded Web server (refer to Section 'Assigning an IP Address Using HTTP' on page 42);...
Page 54: Configuring The Sip Parameters
MediaPack BRI Series If the ISDN ports that bind to the ISDN interface are configured as USER side, then the following parameters should be configured: • MSN Suffix: determines the USER side MSN. If no MSN’s are configured, the MediaPack accepts all incoming calls. •...
Page 55: Figure 4-10: Sip General Settings Screen
User's Manual 4. Initial Configuration To configure the SIP parameters: Access the 'SIP General Settings' screen (Protocol Management menu > SIP Gateway submenu > SIP General Settings option). Figure 4-10: SIP General Settings Screen In the 'SIP General Settings' screen, configure the relevant parameters. (In our example setup for Unit A, no configurations were required in this screen.) Access the 'SIP Proxy &...
Page 56: Figure 4-11: Sip Proxy & Registration Screen
MediaPack BRI Series Figure 4-11: SIP Proxy & Registration Screen In the 'SIP Proxy & Registration' screen, perform the following: When working with a Proxy server, set the ‘Enable Proxy’ field to ‘Enable', and then in the ‘Primary Proxy' field, enter the IP address of the primary Proxy server. When no Proxy is used, the Internal Routing table is used to route the calls (refer to sections 'Tel to IP Routing...
Page 57: Figure 4-12: Sip Users Screen
User's Manual 4. Initial Configuration From the 'Authentication Mode' drop-down list, select one of the following: ♦ ’Per User’ (default): requires the configuration of the SIP users as described in Step 4. ♦ ‘Per Gateway’: requires that you provide ‘Default user name’, ‘Default user password’...
Page 58: Configuring Coder Groups
MediaPack BRI Series 4.1.7 Configuring Coder Groups The procedure below describes how to define coder groups in the 'Coder Groups' screen. In our example setup for Unit A, no configuration changes were made in this screen. To configure the coder groups: In the 'Quick Setup' screen, click the Coder Groups arrow button or navigate to the 'Coder Groups' screen (Protocol Management menu >...
Page 59: Configuring Ip To Tel Routing Table
User's Manual 4. Initial Configuration 4.1.8 Configuring IP to Tel Routing Table The IP to Tel Routing table is used to route incoming IP calls to the relevant ISDN interface. The procedure below describes how to configure IP-to-Tel call routing according to our example setup: Incoming IP calls with destination number 1000 are to be routed to ISDN interface number 0;...
Page 60: Configuring Tel To Ip Routing Table
MediaPack BRI Series 4.1.9 Configuring Tel to IP Routing Table The Tel to IP Routing Table is used (as an alternative to a Proxy server) to route outgoing Tel-to-IP calls to a remote IP destination, or to the MediaPack itself (depending on the extension number).
Page 61: 4.1.10 Saving The Configuration Settings
User's Manual 4. Initial Configuration 4.1.10 Saving the Configuration Settings To ensure that the currently modified configuration is permanently applied, you must save it to the MediaPack's non-volatile memory. To save the configuration changes to the non-volatile memory: On the main menu bar, click the Load & Save Configuration button; the ‘Load & Save Configuration’...
Page 62: 4.1.12 Establishing A Call Between Units A And B
MediaPack BRI Series 4.1.12 Establishing a Call between Units A and B At this stage, you can now establish calls between Unit A and Unit B. For additional information on configuring PBX, FAX, or modem, refer to Appendix B. For a detailed description of the MediaPack configuration tools, refer to Chapter on page For a detailed description of all the configuration options for the MediaPack, refer to Chapter...
Page 63: Mediapack Configuration Tools
User's Manual 5. MediaPack Configuration Tools MediaPack Configuration Tools The MediaPack provides a rich set of configuration tools for configuring the MediaPack parameters: Embedded Web Server based on HTTP for local and remote configuration, accessed using a standard Web browser (refer to Section 'Embedded Web Server' on page 64) Embedded Command Line Interface - CLI (refer to Section...
Page 64: Embedded Web Server
MediaPack BRI Series Only one configuration is loaded to the running configuration when the MediaPack starts up (according to the figure below). Figure 5-1: Loading Persistent Configuration Embedded Web Server The MediaPack gateway contains an embedded HTTP server that provides a user-friendly client Web interface.
Page 65: Computer Requirements
User's Manual 5. MediaPack Configuration Tools 5.2.1 Computer Requirements To use the Embedded Web Server, the following is required: A PC running one of the following Web browsers: • Microsoft™ Internet Explorer™ (version 6.0 and higher) • Firefox (version 1.0.7 and higher) An IP network connection to the MediaPack gateway Note: Web The browser must be Java-script enabled.
Page 66: Main Menu Bar
MediaPack BRI Series The Web interface consists of the following areas: Main menu bar: appears on the left of every screen, providing quick-and-easy access to parameters, submenus, submenu options, functions, and operations. Submenu bar: appears on the top of screens and contains submenu options. Title bar: displays the name of the BRI gateway model Workspace: the main area of the screen in which information is viewed and configured.
Page 67: Dialing Notations
User's Manual 5. MediaPack Configuration Tools 5.2.5 Dialing Notations Table 5-1 describes the dialing notations for configuring destination and source telephone number matching. Table 5-1: Dialing Plan Notations Notation Description [n-m] Character range, e.g., [2-7] [n, m] Character selection, e.g., [2,6,b] Any string Single character The list below includes a few examples for dialing plan notations:...
Page 68: Embedded Command Line Interface
MediaPack BRI Series Embedded Command Line Interface The MediaPack provides an embedded Command Line Interface (CLI) that can be used for configuration and diagnostics. The CLI (or CommandShell) can be accessed using Telnet or RS-232. 5.3.1 Logging into the CLI You can access the MediaPack's CLI using a Telnet session or RS-232.
Page 69: Cli Modes
User's Manual 5. MediaPack Configuration Tools 5.3.2 CLI Modes As described above, the gateway can be managed using the CLI. The CLI allows you to manage the configuration file, reconfigure the running system, query the system state, display debug messages, and execute supplementary commands such as ping. The CLI supports three main modes: Operator Execution Mode: allows you to execute operator-related commands such as ping and various show commands to view the system state...
Page 70: Navigating In The Cli
MediaPack BRI Series 5.3.3 Navigating in the CLI After you log onto the gateway, you are in the Operator Execution mode. This mode allows you to control the system with the help of a subset of the available commands. To configure the device, you first need to change the Operator Execution mode to Administrator Execution mode.
Page 71: Configuring The System
User's Manual 5. MediaPack Configuration Tools 5.3.5 Configuring the System This section provides an overview of the system configuration using CLI. For a detailed description of the CLI parameters, refer to Chapter To access the Main Configuration mode: Log on to the system. Type the enable command to acquire administrative privileges.
Page 72: Shutdown / No Shutdown
MediaPack BRI Series Table 5-3: Description of Configuration Modes Configuration Mode Description “port isdn” From the main configuration mode, enter the command “port pstn 0 <0..3>, where 0 indicates the port number written on the case. This mode is used to configure specific ISDN ports (e.g., to define the User or Network side).
Page 73: Mediapack Configuration File
User's Manual 5. MediaPack Configuration Tools MediaPack Configuration File As an alternative to configuring the VoIP gateway using the Web interface (described in Section 'Embedded Web Server' on page 64) or the CLI (refer to Section 'Embedded Command Line Interface' on page 68), you can configure the MediaPack by loading the configuration file containing customer-configured parameters.
Page 74: Configuration File Examples
MediaPack BRI Series 5.4.3 Configuration File Examples Figure 5-4 through Figure 5-7 show examples of a configuration file for the VoIP gateway. Figure 5-4: Configuration File Example 1 User's Manual Document #: LTRT-83702...
Page 75: Figure 5-5: Configuration File Example 2
User's Manual 5. MediaPack Configuration Tools Figure 5-5: Configuration File Example 2 Version 2.2 July 2007...
Page 76: Figure 5-6: Configuration File Example 3
MediaPack BRI Series Figure 5-6: Configuration File Example 3 User's Manual Document #: LTRT-83702...
Page 77: Figure 5-7: Configuration File Example 4
User's Manual 5. MediaPack Configuration Tools Figure 5-7: Configuration File Example 4 Version 2.2 July 2007...
Page 78 MediaPack BRI Series Reader's Notes User's Manual Document #: LTRT-83702...
Page 79: Configuring The Mediapack
User's Manual 6. Configuring the MediaPack Configuring the MediaPack This chapter provides step-by-step instructions for configuring the MediaPack. The procedures described in this chapter are mainly targeted for those using the MediaPack's embedded Web server. However, for those intending to use CLI, the CLI commands corresponding to the Web interface's commands and parameters are also provided.
Page 80: Sip Gateway
MediaPack BRI Series 6.2.1 SIP Gateway The SIP Gateway submenu is used to configure the gateway’s specific SIP protocol parameters. This menu contains the following options: SIP General Settings (refer to Section 'SIP General ' on page 80) SIP Proxy & Registration Settings (refer to Section 'SIP Proxy &...
Page 81: Table 6-1: Sip General Parameters (Continues On Pages 82 To 82)
User's Manual 6. Configuring the MediaPack Table 6-1: SIP General Parameters (continues on pages 81 to 81) Parameter Description Prack Defines the PRACK behavior. [prack-mode [disable | Disable = 100rel is not supported and not required. require | support]] Supported = 100rel is added to the supported header (default). Required = 100rel is added to the supported and required header.
Page 82: Sip Proxy & Registration Settings
MediaPack BRI Series 6.2.1.2 SIP Proxy & Registration Settings The SIP Proxy & Registration Settings option opens the 'SIP Proxy & Registration’ screen. This screen is used to configure parameters that are associated with SIP Proxy and Registration. To configure the SIP Proxy and Registration parameters: Open the ‘SIP Proxy &...
Page 83: Table 6-2: Sip Proxy And Registration Parameters (Continues On Pages 84 To 87)
User's Manual 6. Configuring the MediaPack Configure the Proxy and Registration parameters according to Table 6-2. Click the Submit button to save your changes and to register to a Proxy / Registrar. To save the changes to the flash memory, refer to Section 'Saving Configuration Settings on the MediaPack' on page 146.
Page 84 MediaPack BRI Series Table 6-2: SIP Proxy and Registration Parameters (continues on pages 83 to 86) Parameter Description Proxy Swap Timeout The time (in msec) after which a proxy is considered not working and the next proxy is used. If fallback proxies are used, keep-alive must be enabled and the redundancy [proxy-hot-swap <500- mode must be set to parking or homing.
Page 85 User's Manual 6. Configuring the MediaPack Table 6-2: SIP Proxy and Registration Parameters (continues on pages 83 to 86) Parameter Description Use Routing Table for This parameter is applicable only if the proxy server is used. Host Names and Profiles Valid options include: [[no]always-use-route- Enabled = the domain field of the to header is set to the value determined by the...
Page 86 MediaPack BRI Series Table 6-2: SIP Proxy and Registration Parameters (continues on pages 83 to 86) Parameter Description Using CLI To define the SIP Proxy & Registration parameters using CLI: Log on to the system. Change to the configuration mode. From the main configuration mode, change to the “context cs”...
Page 87: Sip Users
User's Manual 6. Configuring the MediaPack 6.2.1.3 SIP Users The SIP Users option opens the 'SIP Users' screen. This screen is used to define up to 32 SIP users, by name and password. To configure SIP users: Open the ‘SIP Users' screen (Protocol Management menu > SIP Gateway submenu >...
Page 88: Isdn
MediaPack BRI Series Table 6-3: SIP Users Parameters Parameter Description Password Password used to authenticate with a registrar or a proxy. This password is only used if the Authentication Mode parameter is set to Per User. Authentication User User name used for authentication. If not defined, the user name is used. Using CLI To define the SIP Users parameters using CLI: Log on to the system.
Page 89: Figure 6-4: Mediapack Clock Synchronized By Pbx
User's Manual 6. Configuring the MediaPack Figure 6-4: MediaPack Clock Synchronized by PBX Figure 6-5: MediaPack Clock Synchronized by PSTN Faulty synchronization scenario: The PBX derives the clock from the PSTN. However, the PBX can't distribute the clock to the MediaPack as the MediaPack's network side port configuration is unable to receive clock synchronization from the PBX.
Page 90: Figure 6-6: Isdn General Settings Screen
MediaPack BRI Series To configure ISDN general settings: Open the ‘ISDN General Settings' screen (Protocol Management menu > ISDN submenu > ISDN General Settings option). Figure 6-6: ISDN General Settings Screen Configure the ISDN general parameters according Table 6-4. Click the Submit button to apply your changes. To save the changes to the flash memory, refer to Section 'Saving Configuration Settings on the...
Page 91: 6.2.2.1.1 Configuring Call Progress Tones Using Cli
User's Manual 6. Configuring the MediaPack Table 6-4: ISDN General Parameters Parameter Description Using CLI To define the clock source parameters using CLI: Log on to the system. Change to the configuration mode. From the main configuration mode, change to the “port pstn” mode. To enter the "port pstn"...
Page 92 MediaPack BRI Series To define a sequence of tones and pauses, use the following command: play <duration> <1st frequency> <level of 1st frequency> [<2nd frequency> <level of 2nd frequency> or the command: no play The following limitations apply: • Frequency: 0 to 4,000 Hz •...
Page 93 User's Manual 6. Configuring the MediaPack profile call-progress-tone Busytone_D play 480 425 -21 no play 480 profile tone-set D map call_progress_tone dialtone Dialtone_D map call_progress_tone alertingtone Alertingtone_D map call_progress_tone busytone Busytone_D map call_progress_tone queuedtone Queuedtone_D Note: The gateway supports a maximum of 16 different call progress tones. If two or more “call-progress-tone”...
Page 94: Isdn Port Settings
MediaPack BRI Series 6.2.2.2 ISDN Port Settings The ISDN Port Settings option opens the 'ISDN Ports' screen. This screen allows you to configure an individual BRI port. To configure the ISDN ports: Open the ‘ISDN Ports’ screen (Protocol Management menu > ISDN submenu > ISDN Port Settings option).
Page 95 User's Manual 6. Configuring the MediaPack Table 6-5: ISDN Ports Parameters Parameter Description Admin State The administrative status (up or down) of the interface. [up|down] Valid options include: Enable (default) Disable Using CLI To change the ISDN port parameters using CLI: Log on to the system.
Page 96: Isdn Interface Settings
MediaPack BRI Series 6.2.2.3 ISDN Interface Settings The ISDN Interface Settings option opens the ‘ISDN Interfaces' screen. The ISDN interface is a logical entity used for call routing. It uses the same logic as ‘Hunt Groups’, but with enhanced capabilities. The ISDN interface configuration includes the setting of an individual BRI port.
Page 97: Table 6-6: Isdn Interface Parameters
User's Manual 6. Configuring the MediaPack Table 6-6: ISDN Interface Parameters Parameter Description Digit Collection Timeout Specifies the digit collection timeout in seconds. [digit-collection timeout Valid range is 1 to 15 sec. Default value is 5 sec. <num>] Digit collection Specifies a character that terminates digit collection.
Page 98: Hunt Logic
MediaPack BRI Series 6.2.2.4 Hunt Logic ISDN Line hunting is achieved by aggregating several ISDN ports into one ISDN interface. As described above, each ISDN port binds to an ISDN interface. If several ports bind to the same ISDN interface, the ISDN interface selects a port with a free channel based on the hunt logic defined in the ISDN interface.
Page 99: Ip-To-Tel Destination Numbers
User's Manual 6. Configuring the MediaPack IP to Tel Source Number Manipulation Table for IP-to-Tel calls (refer to Section 'IP-to- Tel Source Numbers' on page 102) Tel to IP Source Number Manipulation Table for Tel-to-IP calls (refer to Section 'Tel- to-IP Source Numbers' on page 104) Note:...
Page 100: Table 6-7: Ip To Tel Destination Number Manipulation Table
MediaPack BRI Series Table 6-7: IP to Tel Destination Number Manipulation Table Parameter Description Position Determines the priority of the configured manipulation rule, where "0" has the highest priority. Destination Number Match the destination number [prefix, suffix, number] [dest-num-match <num>] Source Number Match the source number [prefix, suffix, number] [src-num-match <num>]...
Page 101: Tel-To-Ip Destination Numbers
User's Manual 6. Configuring the MediaPack Table 6-7: IP to Tel Destination Number Manipulation Table Parameter Description Using CLI To change the IP -> Tel destination number manipulations parameters: Log on to the system. From the main configuration mode, change to the “manipulation ip2tel dest-table” mode. Enter a routing entry using the command: pos <num>...
Page 102: Ip-To-Tel Source Numbers
MediaPack BRI Series Table 6-8: Tel to IP Destination Number Manipulation Table Parameter Description Position Determines the priority of the configured manipulation rule, where "0" has the highest priority. Destination Number Match the destination number [prefix, suffix, number] [dest-num-match <num>] Source Number Match the source number [prefix, suffix, number] [src-num-match <num>]...
Page 103: Figure 6-12: Ip To Tel Source Number Manipulation Table
User's Manual 6. Configuring the MediaPack Figure 6-12: IP to Tel Source Number Manipulation Table From the ‘Position' drop-down list, select the entry that you want to add. Configure the number manipulation table according to Table 6-8. Click the Insert button to insert an entry at the specified position. To save the changes to the flash memory, refer to Section 'Saving Configuration Settings on the...
Page 104: Tel-To-Ip Source Numbers
MediaPack BRI Series 6.2.2.9 Tel-to-IP Source Numbers The Tel to IP Source Number Manipulation table is used to define rules for changing the destination number received in telephone-to-IP calls. The table is processed from top to bottom, where the first matching rule is used to manipulate the number. Processing stops after the first successful manipulation.
Page 105: 6.2.2.10 Clearmode Translation
User's Manual 6. Configuring the MediaPack Table 6-10: Tel-to-IP Source Number Manipulation Table Parameter Description Using CLI To change the Tel -> IP source number manipulations parameters: Log on to the system. From the main configuration mode, change to the “manipulation tel2ip src-table” mode. Enter a routing entry using the command: pos <num>...
Page 106: Routing Tables
MediaPack BRI Series 6.2.3 Routing Tables The gateway provides two different routing tables: Tel to IP Routing Table: configured for routing incoming Tel calls to IP addresses (refer to Section 'Tel to IP Routing Table' on page 106) IP to Tel Routing Table: configured for routing incoming IP calls to groups of channels called ISDN interfaces (refer to Section 'IP to Tel Routing Table' on page 108)
Page 107: Figure 6-14: Tel To Ip Routing Table Screen
User's Manual 6. Configuring the MediaPack To configure the Tel to IP Routing table: Open the ‘Tel to IP Routing Table’ screen (Protocol Management menu > Routing Tables submenu > Tel to IP Routing option). Figure 6-14: Tel to IP Routing Table Screen From the ‘Position' drop-down list, select the entry that you want to edit.
Page 108: Ip To Tel Routing Table
MediaPack BRI Series 6.2.3.2 IP to Tel Routing Table The IP to Tel Routing Table is used to route incoming IP calls to groups of channels called ISDN interfaces. Calls are assigned to ISDN interfaces according to any combination of the following three options (or using each independently): Destination phone prefix Source phone prefix...
Page 109: Table 6-13: Ip To Tel Routing Table Parameters
User's Manual 6. Configuring the MediaPack Table 6-13: IP to Tel Routing Table Parameters Parameter Description Position Determines the priority of the configured routing rule, where "0" has the highest priority. Destination Number Match the destination number [prefix, suffix, number]. [dest-num-match <num>] Source Number Match the source number [prefix, suffix, number].
Page 110: Profile Definitions
MediaPack BRI Series 6.2.4 Profile Definitions As described in 'Routing Tables' on page 106, the call routing assigns a profile to each call. The profile defines specific properties used for this call. The system uses the following two profiles: IP profiles for ISDN-to-SIP calls (refer to Section Profiles' on page 110) Tel profiles for SIP-to-ISDN calls (refer to Section 'ISDN...
Page 111: Table 6-14: Ip Profile Parameters
User's Manual 6. Configuring the MediaPack From the 'IP Profiles' drop-down list, select the entry that you want to edit. Configure the IP profile according to Table 6-14. Click the Add button to apply the settings. To save the changes to the flash memory, refer to Section 'Saving Configuration Settings on the MediaPack' on page 146.
Page 112 MediaPack BRI Series Table 6-14: IP Profile Parameters Parameter Description DTMF Transport Defines the method for transporting DTMF. [dtmf-transport<in- Valid options include: band|nte>] In-band = DTMF events are transported using the current voice codec. Note: DTMF events are transported using named tone events according to RFC 2833.
Page 113: Isdn Profiles
User's Manual 6. Configuring the MediaPack 6.2.4.2 ISDN Profiles ISDN Profiles describe the properties of an IP-to-ISDN call. The ISDN Profiles option opens the ‘ISDN Profile' screen. This screen is used to define Fax handling, DTM handling, and codec groups. To configure the ISDN Profiles: Open the ‘ISDN Profiles' screen (Protocol Management menu >...
Page 114: Table 6-15: Isdn Profile Parameters
MediaPack BRI Series Table 6-15: ISDN Profile Parameters Parameter Description Profile ID. Valid range is 1 to 4. Profile Name The profile name is listed as comment. It is not relevant for configuration. The name is a string of no more than 20 characters. Fax signaling method Defines how fax is handled.
Page 115: Coder Group Profiles
User's Manual 6. Configuring the MediaPack Table 6-15: ISDN Profile Parameters Parameter Description Using CLI To define the ISDN Profile parameters: Log on to the system. From the main configuration mode, change to the “profile voice isdn” mode. To enter the “profile voice isdn” mode, use the command: profile voice ip <1..4>...
Page 116: Figure 6-18: Coder Groups Screen
MediaPack BRI Series To configure the gateway’s coders: Open the ‘Coder Groups' screen (Protocol Management menu > Protocol Definitions submenu > Coder Group Profiles option). Figure 6-18: Coder Groups Screen From the Coder Groups drop-down list, select the coder group number (1 through 5). For the '1 Codec', perform the following: From the drop-down list, select the coder you want to use.
Page 117: Table 6-16: Coder Group Parameters
User's Manual 6. Configuring the MediaPack Table 6-16: Coder Group Parameters Parameter Description Defines the coder group ID. Valid range is 1 to 5. Coder Defines the coder. For a list of valid options see the list above. Packetization Defines the packetization time. For a list of valid options see the list above.
Page 118: Advanced Configuration
MediaPack BRI Series Advanced Configuration The Advanced Configuration menu is used to configure the gateway’s advanced configuration parameters, and includes the following submenus: Network Settings (refer to Section 'Network Settings' on page 118) User Management (refer to Section 'User Management' on page 140) 6.3.1 Network Settings From the Network Settings you can define the following networking parameters:...
Page 119: Figure 6-19: Ip Interfaces Screen
User's Manual 6. Configuring the MediaPack Note: If the DHCP server denies the use of the gateway's current IP address and specifies a different IP address (according to RFC 1541), the gateway must change its networking parameters. If this happens while calls are in progress, they are not automatically rerouted to the new network address (since this function is beyond the scope of a VoIP gateway).
Page 120 MediaPack BRI Series Table 6-17: WAN and LAN IP Settings Parameters Parameter Description [medium [10 full |10 half | 100 Defines the interface mode. full | 100 half | auto] Valid options include: Note: In the current version, Auto = enables auto negotiation Media settings can only be 10T = interface configured for 10 Mbps Half duplex configured using CLI.
Page 121 User's Manual 6. Configuring the MediaPack Table 6-17: WAN and LAN IP Settings Parameters Parameter Description Using CLI To change the Tel -> IP interfaces parameters: Log on to the system. From the main configuration mode, change to the “ip_interface” mode. To enter the “ip_interface”...
Page 122: Pppoe
MediaPack BRI Series 6.3.1.2 PPPoE The PPPoE option enables you to configure the Point-to-Point Protocol over Ethernet (PPPoE) settings. To configure the PPPoE parameters: Open the ‘PPPoE' screen (Advanced Configuration menu > Network Settings > PPPoE option). Figure 6-20: PPPoE Screen Configure the PPPoE settings according to Table 6-18.
Page 123: Static Routes
User's Manual 6. Configuring the MediaPack Table 6-18: PPPoE Settings Parameters Parameter Description Defines the lowest accepted Maximum Receive unit (MRU). [mru min <num> max <num>] During PPPoE link negotiation, the two peers can announce an MRU defining the largest packet they can accept in one piece. If the peer announces an MRU lower than this value, the gateway doesn't establish the link.
Page 124: Figure 6-21: Static Routing Table Screen
MediaPack BRI Series To add static routes: Open the ‘Static Routing Table' screen (Advanced Configuration menu > Network Settings > Static Routes option). Figure 6-21: Static Routing Table Screen Configure the static routes (refer to Table 6-19). Click the Insert button to add the static rules. To save the changes to the flash memory, refer to Section 'Saving Configuration Settings on the...
Page 125: Dynamic Routes
User's Manual 6. Configuring the MediaPack Table 6-19: Static Routing Table Parameter Description Column Name Description CLI Example Static Routes are stored as a list of route entries. Each entry has the following format: “route <destination-ip> <destination-mask> <gateway-ip> <metric>”. If PPPoE is used on the WAN interface, the parameter <gateway-ip> must be replaced by “WAN”. For online configuration, the mode-specific prompt is “(ctx-ip)[router]”.
Page 126: Qos
MediaPack BRI Series From the ‘Dynamic Routing Table' screen you can view the static routes (i.e., access the 'Static Routing Table' screen), by clicking the Edit Static Routes button. Table 6-20: Dynamic Routing Table Parameter Description Column Name Description Dest IP IP address of the destination host / network.
Page 127: Figure 6-23: Qos Source Classes Screen
User's Manual 6. Configuring the MediaPack To configure QoS: Open the ‘QoS Profiles' screen (Advanced Configuration menu > Network Settings > QoS Source Classes option). Figure 6-23: QoS Source Classes Screen In the Rate Limit Setting of the WAN Interface group, define the rate limit of the WAN link in the 'Rate Limit' field.
Page 128 MediaPack BRI Series Table 6-21: QoS Parameters Description Parameter Description For more information see: access control list In the CLI the name is used to enter the configuration mode for the specified profdile. Priority If set to yes, packets bypass the WFQ scheduler and are sent with absolute priority over all other classes handled by the scheduler.
Page 129: Qos Source Classes And Packet Tagging
User's Manual 6. Configuring the MediaPack 6.3.1.6 QoS Source Classes and Packet Tagging Every packet has a source class or Class of Service (CoS). The available source classes are listed below: local-voice: locally generated RTP packets local-default: other locally generated traffic default: default for all routed packets (packets are assigned a class of service based on their origin) user-define: a user defined source class...
Page 130: Figure 6-24: Tos/Preference And Dscp Bits
MediaPack BRI Series The bits used for TOS/Preference and DSCP are shown in Figure 6-24 Figure 6-24: TOS/Preference and DSCP Bits User's Manual Document #: LTRT-83702...
Page 131: Access Control List
User's Manual 6. Configuring the MediaPack 6.3.1.7 Access Control List The Access Control List option allows you to add an Access Control List that can be used for the following: Block (Deny) inbound and outbound WAN traffic based on several match criteria Assign a Class of Service (CoS) to allowed (Permit) packets To configure the Access Control List parameters: Open the ‘Access Control List (ACL)' screen (Advanced Configuration menu >...
Page 132: Figure 6-26: Access Control List (Acl) Screen Displaying Acl Rules
MediaPack BRI Series When ACL rules have been added, the top part of the screen displays these rules, as shown below: Figure 6-26: Access Control List (ACL) Screen Displaying ACL Rules To remove a rule, select the radio button corresponding to the rule, and then click Remove.
Page 133 User's Manual 6. Configuring the MediaPack Table 6-22: Access Control List Parameters Description Parameter Description Port Match Criteria It the rule applies to TCP or UDP packets, the user can specify a TCP or UDP port match criteria. The following criteria can be defined: None: no port matching is performed Equal: The rule matches if the port specified in Port Number is used.
Page 134: Nat
MediaPack BRI Series Table 6-22: Access Control List Parameters Description Parameter Description permit ip host 10.0.0.1 any cos local-default # permit packets to 10.0.0.1 permit tcp any eq 80 any # permit all TCP packets to port 80 For more information on CLI, refer to Chapter on page 68.
Page 135 User's Manual 6. Configuring the MediaPack Table 6-23: NAT Profile Static Entry CLI Parameters Parameter Description Local IP Defines the IP address of the internal host to where external traffic is routed. Local Port Defines the port to where external traffic is routed. The valid range is 0 to 65,535.
Page 136: Rip
MediaPack BRI Series 6.3.1.9 The RIP option is used to configure Routing Information Protocol (RIP) settings for LAN and WAN interfaces. To configure the RIP parameters: Open the ‘RIP Settings' screen (Advanced Configuration menu > Network Settings > RIP option). Figure 6-28: RIP Settings Screen Configure the RIP settings.
Page 137: 6.3.1.10 Services
User's Manual 6. Configuring the MediaPack 6.3.1.10 Services The Services option enables you to configure Dynamic Host Configuration Protocol (DHCP) server, domain name system (DNS), and SNTP client settings. To configure the DHCP server, DNS, and SNTP parameters: Open the ‘Network Settings' screen (Advanced Configuration menu > Network Settings >...
Page 138: Table 6-24: Dhcp Server, Dns, And Sntp Clients Parameters
MediaPack BRI Series Table 6-24: DHCP Server, DNS, and SNTP Clients Parameters Parameter Description DHCP Server Parameters State Define if the DHCP server is enabled or disabled. [context ip Interface LAN [no] use profile dhcp-server <name>] Start IP Define the start of the IP address pool that the DHCP server can use to assign IP addresses to clients requesting an IP address.
Page 139: Figure 6-30: Dns Static Entries Screen
User's Manual 6. Configuring the MediaPack Table 6-24: DHCP Server, DNS, and SNTP Clients Parameters Parameter Description Primary server Defines the IP address of the primary SNTP server. [sntp-client server primary] Secondary server Defines the IP address of the secondary SNTP server. [sntp-client server secondary] Note: This option is not available trough the WEB interface Any-cast address...
Page 140: User Management
MediaPack BRI Series 6.3.2 User Management Access to the Embedded Web Server is controlled by dual access-level username and password. To prevent unauthorized access to the Embedded Web Server, two levels of security are available: Administrator (also used for Telnet access) and Monitoring. Each employs a different username and password.
Page 141: Table 6-25: User Management Cli Parameters
User's Manual 6. Configuring the MediaPack In the Access group, define the access rights for the user by selecting one of the following options: • Read: the user can only view configuration settings, but cannot modify or delete them. • Read/Write: the user has full rights, i.e., can view, modify, and delete configuration settings.
Page 142: Status & Diagnostics
MediaPack BRI Series Status & Diagnostics You can view the MediaPack's general system information using the Status & Diagnostic menu on the main menu bar. 6.4.1 System Information To view the MediaPack's system information, take the following step: Open the 'System Information' screen (Status & Diagnostics menu > System Information submenu >...
Page 143: Isdn Ports Status
User's Manual 6. Configuring the MediaPack Boot Loader Version: Boot Loader Version Board Descriptor Version: Board Descriptor Version DSP Kernel Version: SW Version of the DSP Kernel DSP Program Version: SW Version of the DSP PCB Version: Version of the PCB 6.4.2 ISDN Ports Status To view the MediaPack's ISDN Port State:...
Page 144: Software Upgrade
MediaPack BRI Series Software Upgrade The Software Upgrade menu enables you to upgrade the MediaPack software by loading a new image file to the gateway using TFTP. To upgrade the MediaPack software: Terminate all traffic on the MediaPack. Open the ‘Software Upgrade' screen (Software Upgrade menu > Software Upgrade).
Page 145: Table 6-26: Software Upgrade Cli Parameters
User's Manual 6. Configuring the MediaPack Table 6-26: Software Upgrade CLI Parameters Parameter Description copy tftp Loads the new software using TFTP to the MediaPack. The format is: copy tftp://<IP address of your TFTP server>/<name of the directory in which the new SW files are located>...
Page 146: Load & Save Configuration
MediaPack BRI Series Load & Save Configuration The Load & Save Configuration menu on the main menu bar enables you to perform the following: Save configuration settings to the MediaPack's flash memory (refer to Section 'Saving Configuration Settings on the MediaPack' on page 146) Save the Configuration file to a folder on your PC (refer to Section 'Saving a...
Page 147: Figure 6-34: Load & Save Configuration Screen
User's Manual 6. Configuring the MediaPack To save the configuration changes to the flash memory: On the main menu bar, click the Load & Save Configuration button; the ‘Load & Save Configuration' screen is displayed. Figure 6-34: Load & Save Configuration Screen Click the Save Configuration button;...
Page 148: Saving A Configuration File To A Pc
MediaPack BRI Series 6.6.2 Saving a Configuration File to a PC You can save the configuration settings to a file on your PC using TFTP. To save a configuration file to a PC: On the main menu bar, click the Load & Save Configuration menu; the ‘Load & Save Configuration' screen is displayed.
Page 149 User's Manual 6. Configuring the MediaPack Table 6-27: Save CLI Parameters Parameter Description <target> Valid options include: “tftp://<ip>/<path>/<name>”: copy the configuration to a TFTP server “startup-config”: copy the configuration to the startup configuration Using CLI To save the configuration via CLI: Open a CLI session using Telnet or a serial connection.
Page 150: Loading A Configuration File
MediaPack BRI Series 6.6.3 Loading a Configuration File You can load a configuration file, saved on your PC, to the MediaPack using TFTP. To load a configuration file to the MediaPack: On the main menu bar, click the Load & Save Configuration menu; the ‘Load & Save Configuration' screen is displayed.
Page 151 User's Manual 6. Configuring the MediaPack Table 6-28: Load CLI Parameters Parameter Description Using CLI To load the configuration via CLI: Open a CLI session using Telnet or a serial connection. Log on to the system. Default username and password: user=”Admin”; password=”Admin”. Type the enable command to acquire administrative privileges.
Page 152: Restoring Factory Default Configuration
MediaPack BRI Series 6.6.4 Restoring Factory Default Configuration You can restore the MP-40x to factory default settings using the Web interface, CLI, or Reset button. To restore factory default settings using the Web interface: On the main menu bar, click the Load & Save Configuration menu; the ‘Load & Save Configuration' screen is displayed.
Page 153 User's Manual 6. Configuring the MediaPack Load your previously backed-up configuration file (refer to the Section 'Loading a Configuration File' on page 150). Press again on the Reset button (this time for a short period). Version 2.2 July 2007...
Page 154: Resetting The Mediapack
MediaPack BRI Series Resetting the MediaPack The Reset menu enables you to remotely reset the gateway. Before resetting the gateway, you can choose to save the gateway configuration to flash memory. To reset the MediaPack: On the main menu bar, click the Reset menu; the 'Reset the Device' screen is displayed.
Page 155: A Mediapack Applications
User's Manual A. MediaPack Applications MediaPack Applications This appendix provides step-by-step instructions for configuring the MediaPack for the following typical applications in which the MediaPack can be implemented: Connecting the MediaPack to a PBX (refer to Section 'Connecting the MediaPack to a PBX' below) Lifeline and Fallback Setup (refer to Section 'Lifeline and Fallback...
Page 156: Using Point-To-Point Connection, Pbx Subscriber Interface
MediaPack BRI Series The subsections below provide a detailed description of the four MediaPack-PBX connection options: 'Using Point-to-Point Connection, PBX Subscriber Interface' on page 156. This configuration connects remote SIP clients to a PBX. 'Using Point-to-Point Connections, PBX Trunk Interface' on page 158. This configuration attaches an ISDN PBX to a VoIP network.
Page 157 User's Manual A. MediaPack Applications Figure B 2: ISDN Ports Screen From the 'ISDN Ports' list, select an ISDN port. From the 'Uni-Side' drop-down list, select 'User'. From the 'Layer 2 Mode' drop-down list, select 'Point to Point'. From the 'ISDN Interface' drop-down list, select the ISDN interface to which the configured port binds.
Page 158: Using Point-To-Point Connections, Pbx Trunk Interface
MediaPack BRI Series A.1.2 Using Point-to-Point Connections, PBX Trunk Interface A Point-to-Point connection between the PBX and the MediaPack is illustrated in the network architecture diagram below (Figure A-2). The MediaPack is connected to the PBX’s Trunk interface. In other words, the MediaPack provides an ISDN Network and the PBX is a User/Terminal device.
Page 159 User's Manual A. MediaPack Applications Figure B 2: ISDN Ports Screen From the 'ISDN Ports' list, select an ISDN port. From the 'Uni-Side' drop-down list, select 'Net'. From the 'Layer 2 Mode' drop-down list, select 'Point to Point'. From the 'ISDN Interface' drop-down list, select the ISDN interface to which the configured port binds.
Page 160: Using Point-To-Multipoint Connections, Pbx Subscriber Interface
MediaPack BRI Series A.1.3 Using Point-to-Multipoint Connections, PBX Subscriber Interface A Point-to-Multipoint connection between the PBX and the MediaPack is illustrated in the network architecture diagram below (Figure A-3). The MediaPack is connected to the PBX’s Subscriber interface. In other words, the PBX provides an ISDN Network and the MediaPack is a User/Terminal device.
Page 161 User's Manual A. MediaPack Applications Figure B 2: ISDN Ports Screen From the 'ISDN Ports' list, select an ISDN port. From the 'Uni-Side' drop-down list, select 'User'. From the 'Layer 2 Mode' drop-down list, select 'Point to Multipoint'. From the 'ISDN Interface' drop-down list, select the ISDN interface to which the configured port binds.
Page 162: Using Point-To-Multipoint Connections, Pbx Trunk Interface
MediaPack BRI Series From the 'ISDN Interfaces' list, select the ISDN interface that is bind to the ISDN port configured above. Configure the MSN Suffix (Identical to an ISDN Phone MSN configuration). For additional information regarding MSN, refer to Section 'MSN' on page 172. Click Submit to apply your changes.
Page 163: Lifeline And Fallback Setup
User's Manual A. MediaPack Applications To configure the MediaPack connection to the PBX: Perform the initial configuration of the MediaPack’s IP interfaces and network settings (refer to Section 'Connecting MediaPack's LAN Interface to your PC' on page 40). Access the ‘ISDN Ports’ screen (Protocol Management menu > ISDN submenu > ISDN Port Settings option).
Page 164: Configuring Fax And Modem
MediaPack BRI Series Configuring Fax and Modem This section describes the configuration setup for Fax (refer to Section 'Configuring Fax Transfer over IP' on page 164) and modem (refer to Section 'Configuring Modem Transfer over IP' on page 167) over IP. A.3.1 Configuring Fax Transfer over IP The following example demonstrates a FAX setup between two MediaPack gateways.
Page 165: Figure A-7: Fax Transfer Enabled (E.g., T.38 Relay)
User's Manual A. MediaPack Applications The procedure below describes the Fax configuration. This configuration applies to both Unit A and Unit B. To configure the FAX parameters: Complete the initial settings configuration (refer to Section 'Initial Configuration' on page 39). Configure the MediaPack ISDN-to-IP FAX settings: •...
Page 166: A.3.1.1 Fax Without Sip Re-Invite
MediaPack BRI Series Figure A-8: Fax Transfer Enabled for IP-to-ISDN (e.g., T.38 Relay) A.3.1.1 Fax without SIP RE-INVITE The use fax without a SIP RE-INVITE transaction (fax autotransition), the user can add T.38 as coder. If T.38 is added a coder it is negotiated in the SDP exchange. If Fax is successfully negotiated, the system will switch to fax (T.38) without an additional SIP RE- INVITE transaction.
Page 167: Configuring Modem Transfer Over Ip
User's Manual A. MediaPack Applications A.3.2 Configuring Modem Transfer over IP The general system configuration for call routing is the same as that described in Section 'Configuring Fax Transfer over IP' on page 164. For using the Modem Bypass, in the 'IP Profiles' and 'ISDN Profiles' screens, the parameter ‘Allow Modem Bypass’...
Page 168: Configuring Supplementary Services
MediaPack BRI Series Configuring Supplementary Services The MediaPack SIP gateway supports the following supplementary services: Call Hold / Retrieve; refer to Section 'Call Hold and Retrieve' on page 168. Transfer (Refer and Replaces); refer to Section 'Call Transfer' on page 169. Call Forward (3xx Redirect Responses);...
Page 169: A.4.1.2 Call Hold From The Sip Side
User's Manual A. MediaPack Applications A.4.1.2 Call Hold from the SIP Side Call hold from the SIP side is similar to call hold on the ISDN side. The SIP user can use a SIP RE-INVITE to put the call on hold. The following SDP attributes indicate a hold: a=sendonly, a=inactive or IP = 0.0.0.0, or any combination of these parameters.
Page 170: A.4.2.2 Call Transfer Initiated By The Isdn User
MediaPack BRI Series Figure A-11: Call Transfer Initiated by the SIP Peer A.4.2.2 Call Transfer Initiated by the ISDN User Call Transfer initiated by the ISDN user is not supported. A.4.3 Call Forward The MediaPack supports call forward using 3xx responses. If the MediaPack receives a 3xx response to an invite, the call is forwarded to the new destination.
Page 171: Call Waiting / Call Queued
User's Manual A. MediaPack Applications A.4.4 Call Waiting / Call Queued A.4.4.1 ISDN-to-SIP Call Queued by the SIP User In this scenario, the MediaPack receives a 182 Call Queued instead of an alerting message. If the MediaPack receives a call queued, the MediaPack plays the Queued tone to the ISDN user instead of the alerting tone.
Page 172: Overlap Receiving
MediaPack BRI Series A.4.5 Overlap Receiving Overlap receiving means that the call initiator does not have to send the complete number in the initial setup. The user can send an empty ISDN setup message and then dial digit by digit. Overlap receiving is supported if the MediaPack is configured as Network side (point- to-point and point-to-multipoint), or if the MediaPack is configured as point-to-point user side.
Page 173: B Mediapack Startup Process
User's Manual B. MediaPack Startup Process MediaPack Startup Process The startup process (illustrated in the figure below) begins when the gateway is reset (physically or from the Web / CLI), and ends when the operational software is running. In the startup process, the network parameters, and software and configuration files are obtained.
Page 174 MediaPack BRI Series Loading Ipinterface ... -> OK Loading NAPT ... -> OK Loading RIP ... -> OK Loading TelnetDaemon ... -> OK Loading ConfigurationAccess ... -> OK Loading TFTP Client ... -> OK Loading FileTransfer ... -> OK Loading Download ... -> OK Loading SynchronTimer ...
Page 175: C Technical Specifications
User's Manual C. Technical Specifications Technical Specifications Table C-1: MediaPack Technical Specifications (continues on pages 175 to 176) Interfaces ISDN BRI Interface Up to 4, ISDN BRI S/T, RJ45 connectors Up to 8 voice sessions NT or TE mode configurable per port Point-point and Point-multipoint “Lifeline”...
Page 176 MediaPack BRI Series Table C-1: MediaPack Technical Specifications (continues on pages 175 to 176) Physical Power 100-240 VAC/47-63 Hz Environmental Operational: 5 to 40°C (41 to 104°F) Storage: -25 to 70°C (-77 to 158°F) Humidity: 10 to 90% non-condensing Dimensions (H x W x D) 44 x 218 x 240 mm (1.7 x 8.6 x 9.4 in.) Mounting Rack Mount, Desktop...
Page 177: Dsip / Isdn Release Reason Mapping
User's Manual D. SIP / ISDN Release Reason Mapping SIP / ISDN Release Reason Mapping Mapping of ISDN Release Reason to SIP Response Table D-1: Mapping of ISDN Release Reason to SIP Response (continues on pages 177 to 178) ISDN Description Description Release...
Page 178 MediaPack BRI Series Table D-1: Mapping of ISDN Release Reason to SIP Response (continues on pages 177 to 178) ISDN Release Description Description Response Reason Bearer capability not presently available Service unavailable 503* Service/option not available Service unavailable Bearer capability not implemented Not implemented Channel type not implemented 480*...
Page 179: Mapping Of Sip Response To Isdn Release Reason
User's Manual D. SIP / ISDN Release Reason Mapping Mapping of SIP Response to ISDN Release Reason Table D-2: Mapping of SIP Response to ISDN Release Reason ISDN Release Description Description Response Reason Bad request Normal, unspecified Unauthorized Call rejected Payment required Call rejected Forbidden...
