ELMA Switch Hook-up

Copyright © 2007, 2008 AudioNote Kits
www.AudioNoteKits.com
audionotekits@rogers.com
Repeat this for the other RCA and you should have two
pairs of wires as shown to the left.
The next step is to wire up the ELMA
selector switch.
You may want to add the knob to it
with the little hex wrench so you can
stand it up for easy soldering!

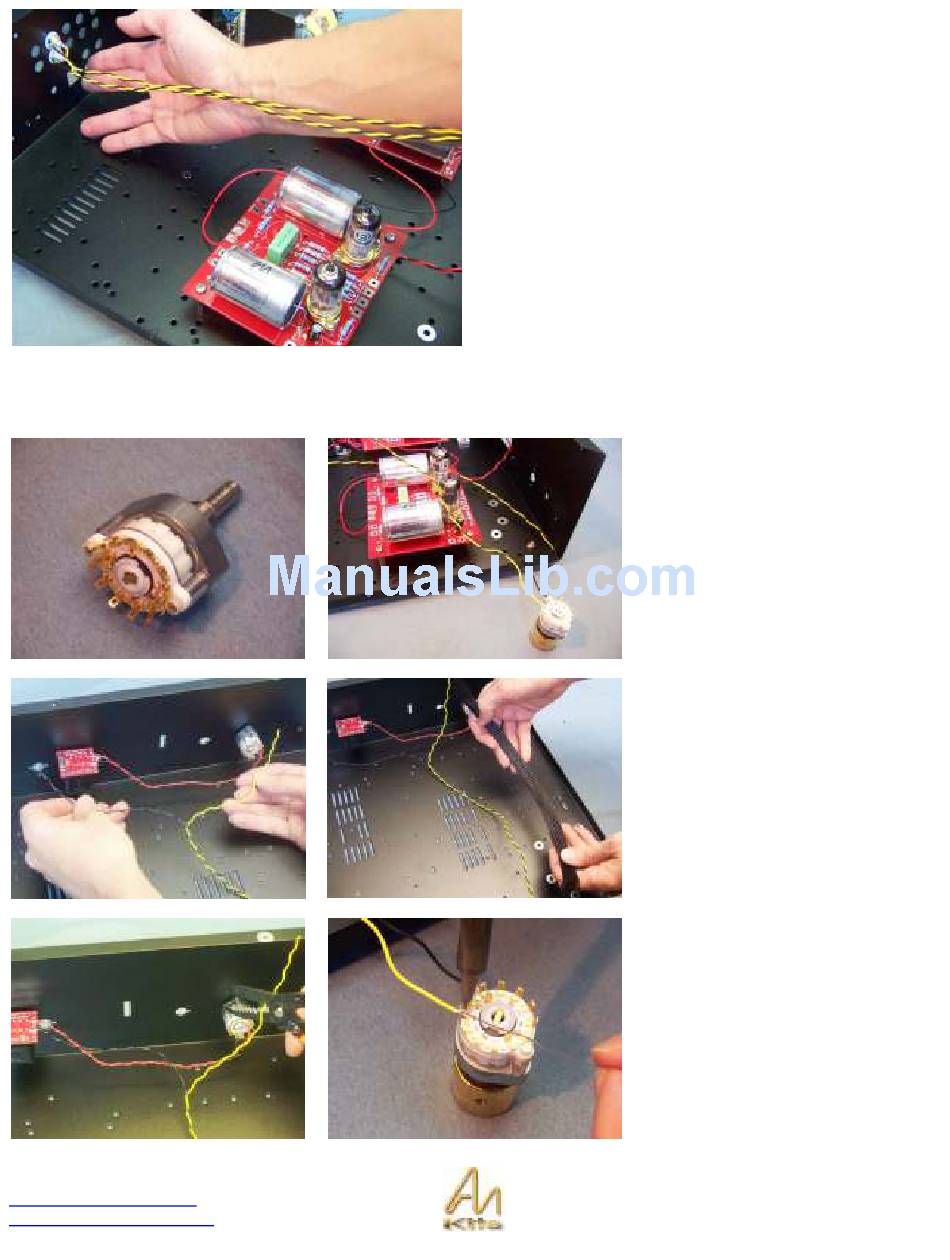

The pictures opposite show that the
colored wire prepared to solder to the
ELMA selector.
OPTIONAL: At this stage you may
also want to put your wire through the
BRAID provided which keeps things
clean – another option is to just tie
wrap then.
Trim the colored wire to the correct
length – give yourself plenty of slack!
On each side of the ELMA you can
see 6 short leads – there are a total of
12 around the outside perimeter.
See the following diagram.
