Installing the Spacers and Valve Bases
Copyright © 2007, 2008 AudioNote Kits
www.AudioNoteKits.com
audionotekits@rogers.com

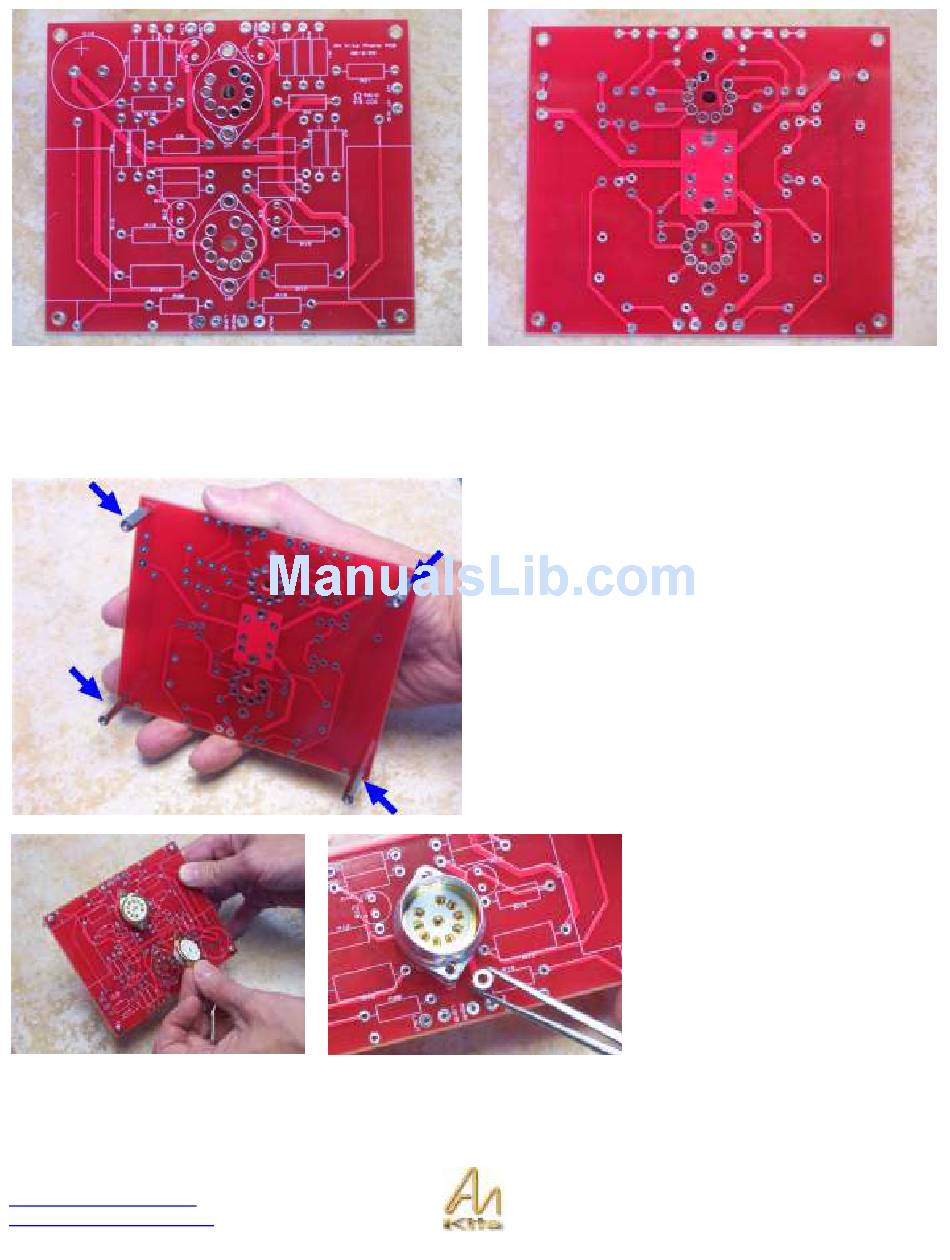

Above we have a view of the top and underside of the board.
First install the M3 Hex spacers into position at the four
corners of the board.
Position the 9-pin valve bases onto the
board – they can only go in one way!
For each valve base, install the bottom
of the metallic tube shield over top of
the valve base – then using a small
round washer from the hardware bag –
place in position for the M3 screw to
thread through.
Page 70
