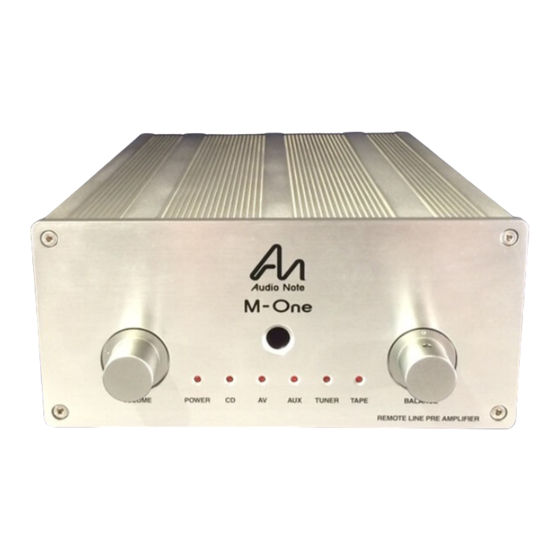

Congratulations on your purchase of the Audio Note™ M-One Line remote control pre -
amplifier.
The M-One is a component upgraded version of the already well proven and regarded
M-Zero and provides even more outstanding performance for line level playback systems,
representing both excellent value and compact size.
The M-One differs from the M-Zero in the component choices in the power supply and
the signal path, where we have used Black Gate Graphite electrolytic capacitors and
Audio Note™ paper in oil signal capacitors to improve the already fine sound quality of
the M-Zero, otherwise the circuit is the same.
Please read over this manual carefully in order to obtain the best possible performance
and longevity from the M-One.
UNPACKING & INSTALLATION
We recommend that you store the packaging materials in case the unit requires shipping
at a later date. Also, check that no transit damage has occurred before installing the pre
amplifier.
Next, select a suitable location for the unit, ensuring that some ventilation is provided, as
a little heat is generated by the pre amplifier during normal operation.
Worthwhile improvements may be obtained by locating the pre amplifier on a support
system specifically designed to reduce and absorb any vibrations.
AFTER CARE
Cleaning: No special maintenance is required for the M-One. A soft cloth or brush
similar to those sold by photographic stores for cleaning lenses is best used for cleaning.
Use a cloth dampened with a mildly warm, weak soap solution to clean off grease or oily
substances. Strong or alcohol based solvents may damage the finish of this amplifier.
Tube replacement: The vacuum tube used in the M-One should provide about ten
years of continuous operation. With twenty four hours of use per day, they should
provide a 100,000 hour life span.
- - 1
Advertisement
Related Manuals for Audio Note M One Line
Summary of Contents for Audio Note M One Line
- Page 1 The M-One differs from the M-Zero in the component choices in the power supply and the signal path, where we have used Black Gate Graphite electrolytic capacitors and Audio Note™ paper in oil signal capacitors to improve the already fine sound quality of the M-Zero, otherwise the circuit is the same.
- Page 2 Audio Note™ has taken considerable care in selecting and matching vacuum tubes specially for the M-One, and so we recommend that you contact your Audio Note dealer, who will be able to provide the correct tube should replacement be required.
- Page 3 Special Note: For best performance, use an Audio Note™ interconnect. Although several companies manufacture good quality interconnects, those manufactured by Audio Note are best suited, as we design our entire range within a systems philosophy that ensures compatibility across the range.
- Page 4 USING THE M-One. Once all connections are completed and checked, flip the main on/off switch located next to the mains input socket to the “on” position. The red `POWER` indicator on the front panel should now be glowing. Being vacuum tube, the pre amplifier will take about 45 seconds before it is ready for operation.
-
Page 5: Technical Overview
WARRANTY AND SERVICING Audio Note™ warrants this product free from defects in materials and workmanship for one year from original date of purchase from an appointed Audio Note dealer. The vacuum tubes are warranted for three months. In the event that your Audio Note™ product requires servicing, please contact your Audio Note dealer. -
Page 6: Specifications
Output impedance Output noise < 0.5MV Tube compliment 6111 WA Valve Line Stage Note: Due to Audio Note’s ongoing research and development programme, specifications are subject to change without notice. THIS PRODUCT COMPLIES WITH RELEVANT CE STANDARDS. - - 6...
