Audio Note Quest Installation Manual

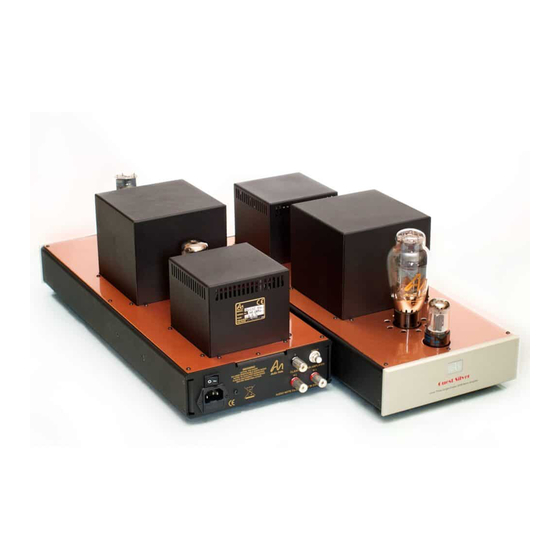

Congratulations and thank you for your purchase of the Audio Note Quest mono power
amplifiers. The Quest is a Pure Class A Parallel Singled Ended valve amplifiers that uses
the highly regarded 300B directly heated triode valve. The Quest produces a level of
performance that is radically superior to current designs and was specifically designed for
sonic performance rather than technical specifications. It also fulfills all Level 3 criteria.
-Pure Class A operation.
-Zero negative feedback.
-Single ended output stage.
-Valve rectification.
-Directly heated Triode.
-Materials and component quality.
This Level 3 amplifier features Audio Note copper and silver wiring and Audio Note
capacitors.

UNPACKING AND INSTALLATION

These amplifiers are shipped without the valves installed. It is necessary to install
the valves first. It is essential that the valves are installed correctly or serious
damage that is not covered by the warranty will result. We recommend that your
dealer does this for you.

Installing the valves

Please take care when unpacking the amplifiers as they are fairly heavy and place on a
suitable clean space (table or floor) it is recommend that you store the packaging
materials in case the unit requires shipping at a later date.
Carefully unwrap all the valves. You will find 1x 6SN7WGTA, 1 x 300B and 1x 5U4G
valves for each amplifier.
Looking from the front of the amplifier, the first valve to insert is the 6SN7WGTA valve
which goes into the first valve base at the front of the amplifier.
Inspect the locating pin on the bottom center of the valve and align with the valve base
(the locating pin can only go in one way round due to a locating spigot) and with gentle
but firm pressure insert the valve.
Looking from the front of the amplifier, the next valve to plug in is the 5U4G valve
which goes into the last valve base at the back of the amplifier.
See Diagram 1 below:
