- Page 1 CONQUEST Low Gain MONO POWER AMPLIFIERS OWNER’S INFORMATION...
- Page 2 CONTENTS 1) IMPORTANT SAFETY INFORMATION 2) CE DECLARATION OF CONFORMITY DISPOSAL POWER REQUIREMENTS 3) INTRODUCTION 4) OVERVIEW UNPACKING AND INSTALLATION 5) VALVE INSTALLATION 6) CONNECTION 7) OPERATION 8) TECHNICAL SPECIFICATIONS 9) WARRANTY INFORMATION CONTACT INFORMATION...
- Page 3 ! IMPORTANT SAFETY INFORMATION ! RISK OF SHOCK OR ELECTROCUTION! INTERNAL OPERATING VOLTAGES ARE LETHAL! Do not remove top cover, unless specifically instructed to do so in the user manual. This unit contains fuses and other safety components in accordance with BS60065 requirements.
- Page 4 BS EN 60065 in accordance with the regulations 73/23/EEC, 89/336/EEC (from 1 January 1997) CE 94 Peter Qvortrup, Director Audio Note (UK) Limited 25 Montefiore Road Hove East Sussex BN3 1RD United Kingdom...
- Page 5 INTRODUCTION Thank you for purchasing this Audio Note (UK) product. With the correct care it should give you many years of pleasure and enjoyment. Please take the time to read all of the information in this manual before connecting your new component to an electrical supply or your system, to ensure both your safety and satisfaction.

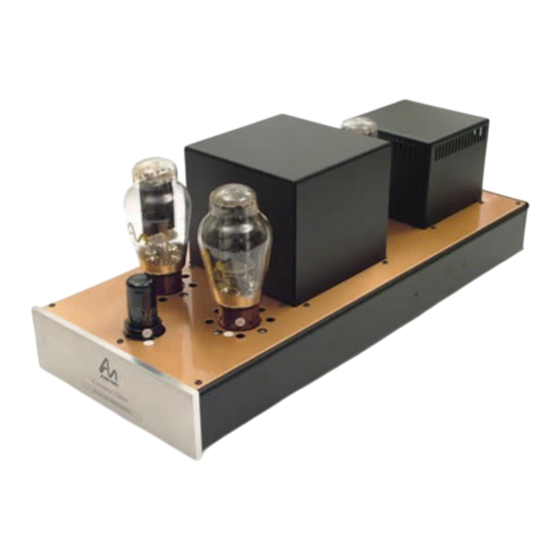

- Page 6 CONQUEST LOW GAIN MONO POWER AMPLIFIERS Congratulations on your purchase of the Audio Note (UK) CONQUEST Low Gain mono power amplifiers. They are Pure Class A Parallel Singled Ended valve amplifiers that use a pair of the highly regarded 300B triode valves per channel, producing a level of performance that is radically superior to the vast majority of current designs.
- Page 7 VALVE INSTALLATION The amplifiers are shipped without their valve compliment installed. It is necessary to install the valves before operation. It is essential that the valves are installed correctly or serious damage that is not covered by the warranty will result. We recommend that your dealer perform this procedure for you if you are in any way unsure.
- Page 8 Mains The CONQUEST Low Gain are equipped with an IEC 320 mains inlet socket for each amplifier. Use the supplied mains cables to connect the units to the local mains supply. The mains fuse and a spare are located in the inlet socket fuse drawer.
- Page 9 Once all the connections are completed and checked, ensure that the volume control of your preamplifier / source is at the minimum setting. Turn on all components in the signal chain BEFORE the CONQUEST Low Gain; they should always be the LAST components to be switched ON, and the FIRST to be switched OFF.
- Page 10 TECHNICAL SPECIFICATIONS 100k ohm INPUT IMPEDANCE 3.3V for full output INPUT SENSITIVITY 18 watts RMS per channel into 4 or 8 Ohm MAXIMUM OUTPUT loads +/- 0.3dB CHANNEL BALANCE 2 x 5U4GB VALVE COMPLIMENT 4 x 300B 2 x 6J5 Metal 20KG (per amplifier) UNIT WEIGHT 30KG (per amplifier)
- Page 11 Audio Note (UK) warrants this product to be free from defects in materials and workmanship for two years from the original date of purchase from an appointed Audio Note (UK) dealer, and agrees to cover the cost of parts and associated labour required to correct such defects, subject to terms & conditions.
- Page 12 CONTACT INFORMATION If in the future your Audio Note (UK) product requires servicing, or if you require technical support or have any questions regarding this or any of our other products, please contact your local Audio Note (UK) dealer. Alternatively, please feel free to contact us directly: -...
