Wiring the Output of the PHONO Stage into the ELMA selector

Copyright © 2007, 2008 AudioNote Kits
www.AudioNoteKits.com
audionotekits@rogers.com

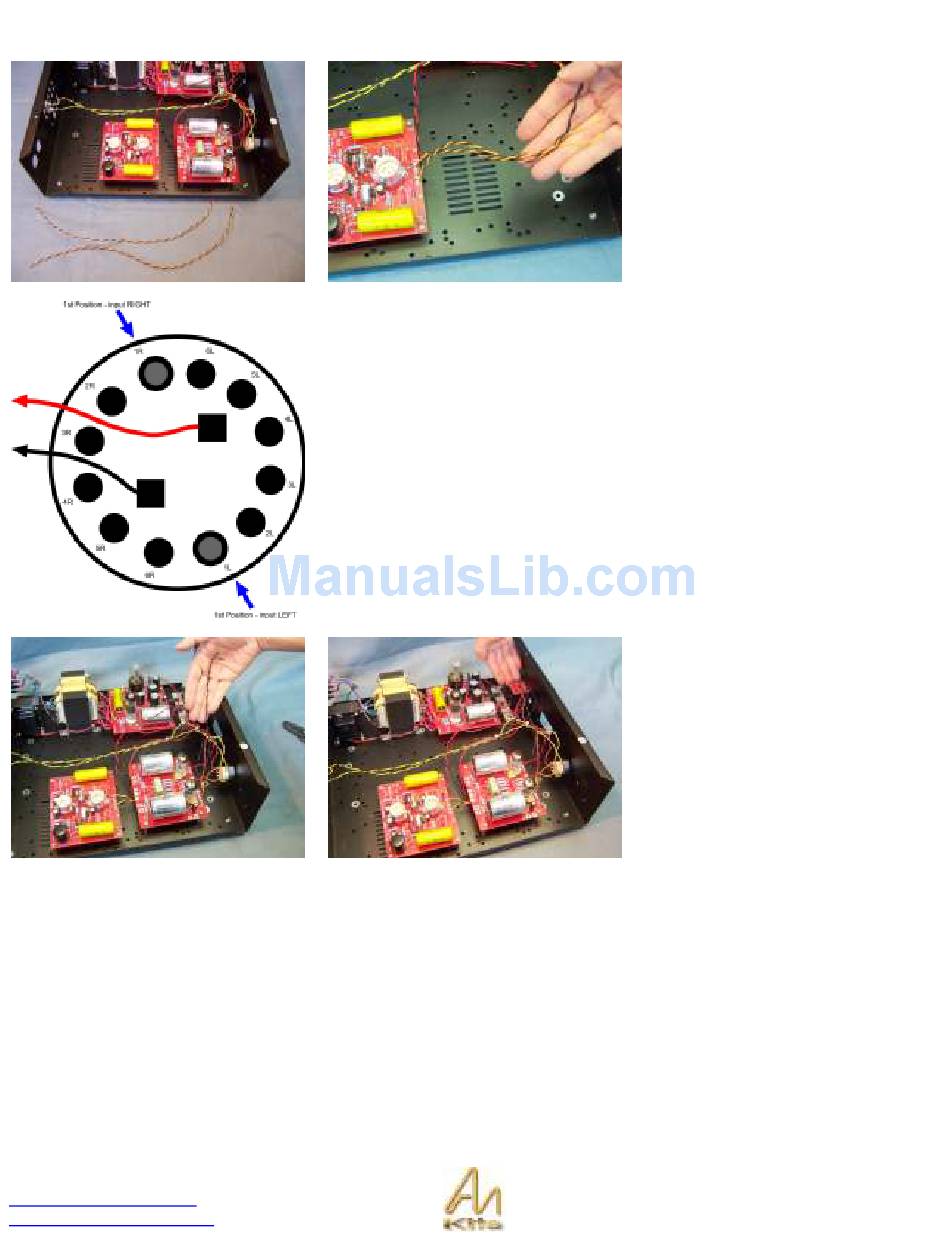

The blue arrows in this diagram indicate the correct pins to wire the phono leads
to.
The orange wires (in this case) will be cut to length to then be soldered into
position on the ELMA selector.
You may wish to position the line board so that the wires go underneath it - see
the following pictures.
Take the two 12" lengths of PTFE wire
and connect the Signal and ground for
the left and right output channels of
the Phono Board.
Then unwind about 6" of the color and
black wires and then twist the black
wires together.
The first picture shows the line board
positioned over the phono output
wiring.
Take the twisted lengths of Black wire
and connect to the GND on the Noble
PCB.
Once this is completed then you have
successful wired the Phono Board
outputs to the ELMA selector.
