Installing the Choke

Installing the Mains Transformer

Copyright © 2007, 2008 AudioNote Kits
www.AudioNoteKits.com
audionotekits@rogers.com

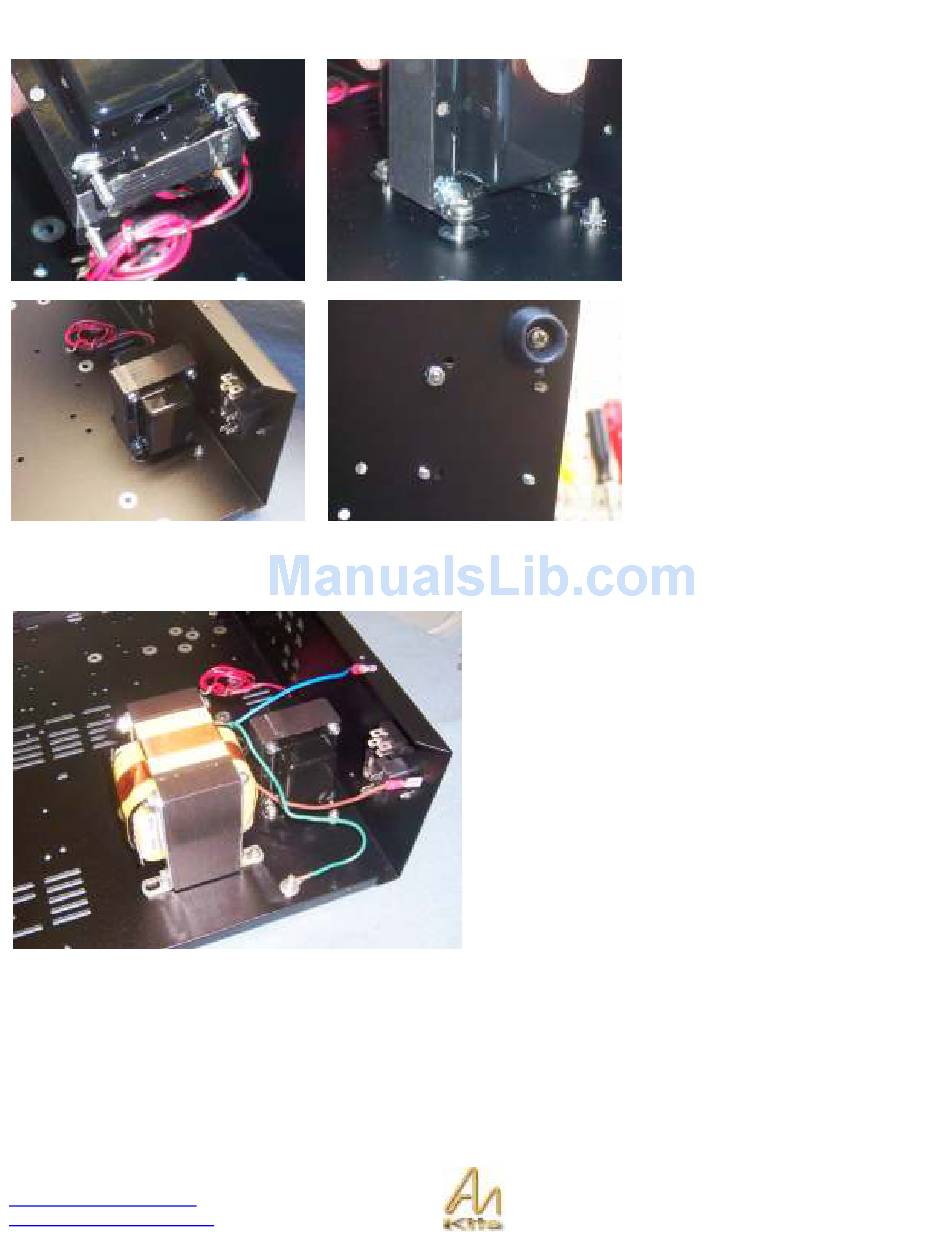

Since the Choke fits into a tight
location we suggest you put the
screws and washers into position
through the holes in the choke covers
– then lower the choke into position
making sure that you align with the
non painted hole - see opposite.
Note the wires at the back of the
choke.
The left-most picture shows the final
position of the choke from inside the
chassis.
The central picture shows its position
under the chassis where you will now
secure the 4 holes of the choke with
serrated M4 washers and M4 nuts.
The picture opposite shows the correct orientation for the
Mains Transformer.
The following instructions will show how this is achieved.
Page 13
