Section 9: Audio Signal Test
Copyright © 2007, 2008 AudioNote Kits
www.AudioNoteKits.com
audionotekits@rogers.com
Then turn the volume pot all the way to the LEFT again (counter clockwise) - this
would be zero volume level - turn the pot all the way to the right for FULL
volume and then leave in this position.
We are now going to test our audio signal to make sure that
all our wiring is correct!

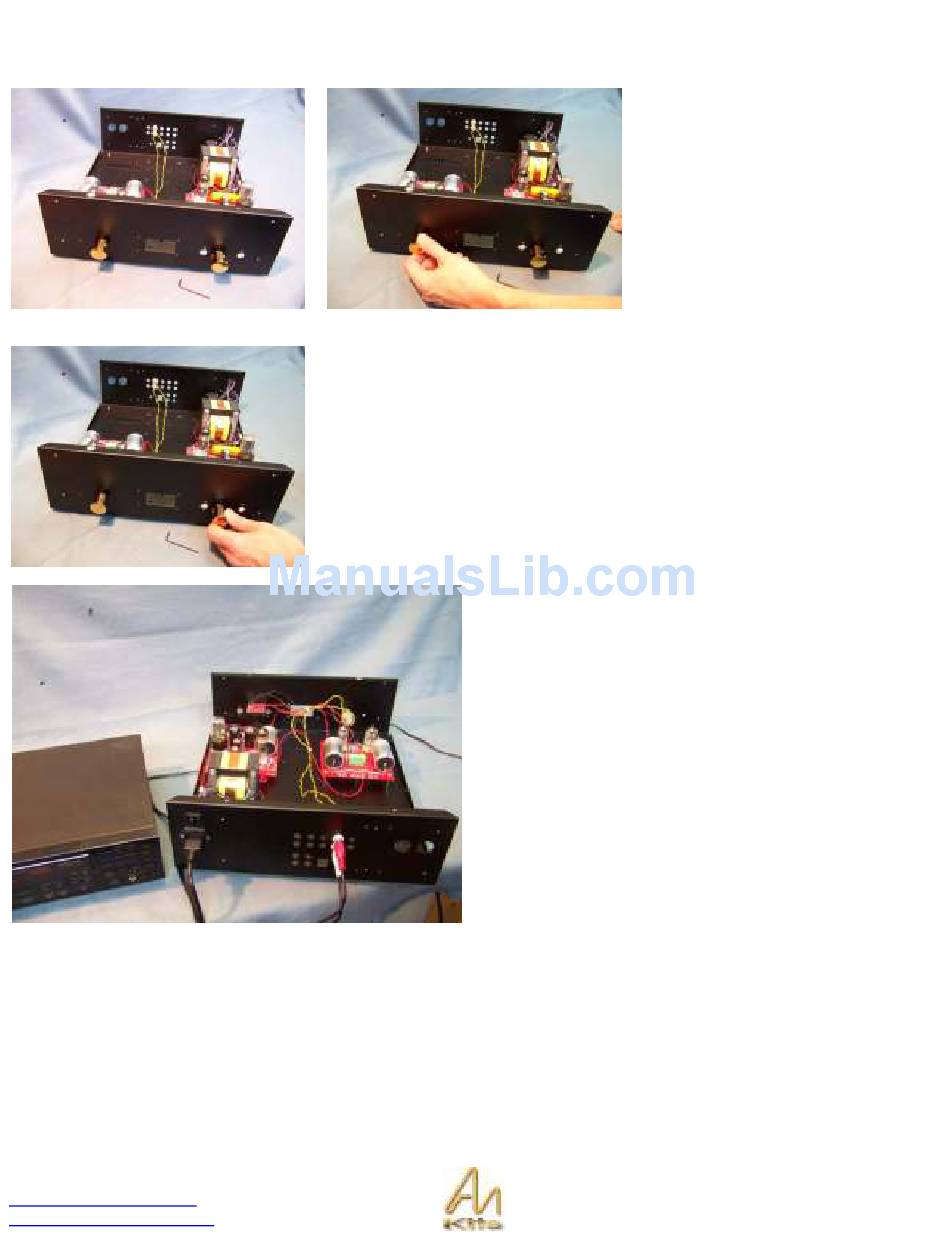

Use a CD player and connect the inputs into the installed
RCA pair.
Power on the Pre-amplifier unit and make sure tubes are
glowing – then play track 1 of the AUDIO Test CD
provided.
I would suggest adding the knobs to
the front panel with the ALLEN Key
provided so that you can make
adjustments.
With the selector switch, turn the knob
all the way to the LEFT or counter
clockwise - Once it has reached this
position then turn it ONE position to
the RIGHT - This is the correct
position for our first line stage signal to
be selected.
Page 65
