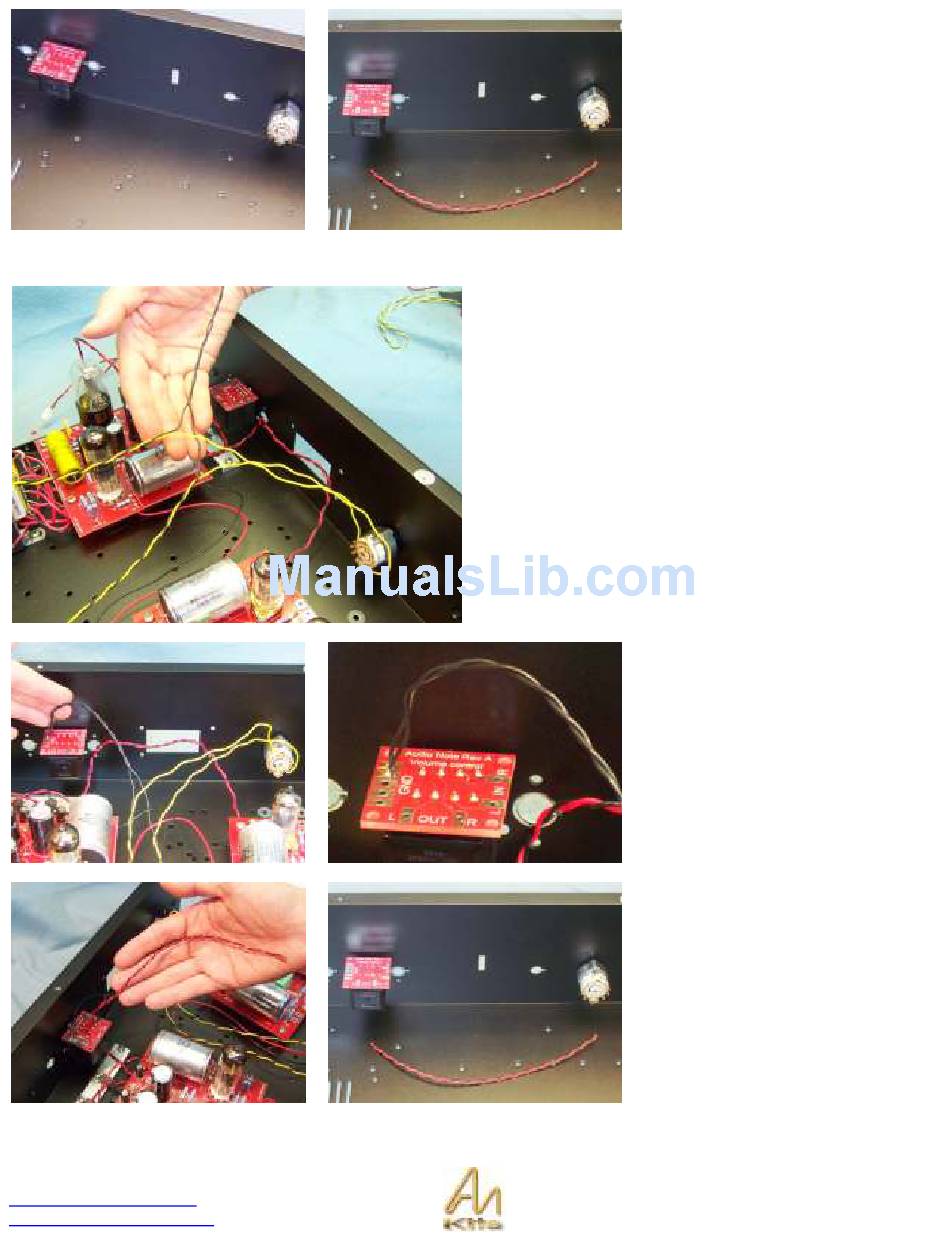

Install the Volume pot in the center
hole.
TIP: You may want to scrape off the
Black paint on the Noble pot where the
pot comes in contact with the chassis -
this would be on the inside of the
chassis - use a flat headed screw
driver and just take off some of the
black paint - this way the pot makes a
good ground connection with the
chassis (this will avoid hum caused by
touching the Volume Knob).
Now with the colored wires connected correctly to the
ELMA selector you can now twist the two remaining Black
ground wires together – these are going to be soldered to
the Noble PCB.
See the GND pads on the left side of
the Noble PCB – you can take your
two black wires and solder them into
this board as shown in the pictures
opposite.
Next step is to cut a length of red/black
twisted wire and we will connect the
Output of the ELMA selector to the
INPUT of the Noble Volume PCB.
We will use the RED wire as the
RIGHT and the Black wire as the
LEFT.
