Audio Note L2 Line Preamplifier Instruction Manual page 11

Now we must configure our Mains transformer for the World Voltage that we reside in. For this example we will show
120V Operation.
Copyright © 2007, 2008 AudioNote Kits
www.AudioNoteKits.com
audionotekits@rogers.com

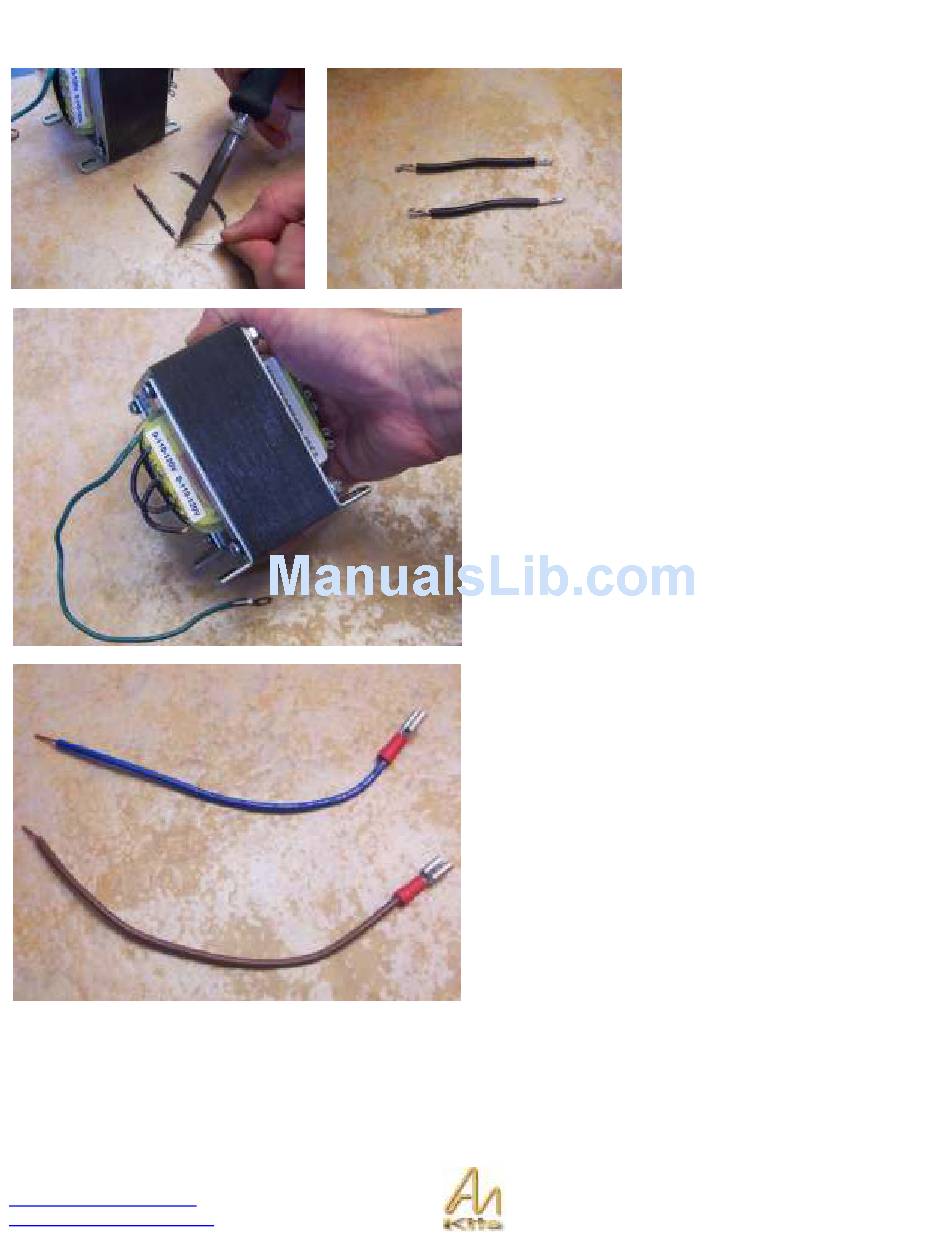

Start by cutting two short pieces of
wire approx 2" in length each, stripping
the insulation off the ends and tinning
the wire.
Then we will inter-wire the Mains transformer primaries.
Remember, we are wiring here for 120v - if your region is
different then you will need to consult the wiring chart on
the previous page to determine how you inter-wire for your
region.
From the IEC bag we want to take the brown and blue
wires with the crimps on one end.
Trim the wires to about _____ inches in length and then
solder on to the correct Mains transformer primary tags for
your region.
Page 11
