Connecting the HT and Power Supply Ground

Phono Input Connections

Copyright © 2007, 2008 AudioNote Kits
www.AudioNoteKits.com
audionotekits@rogers.com

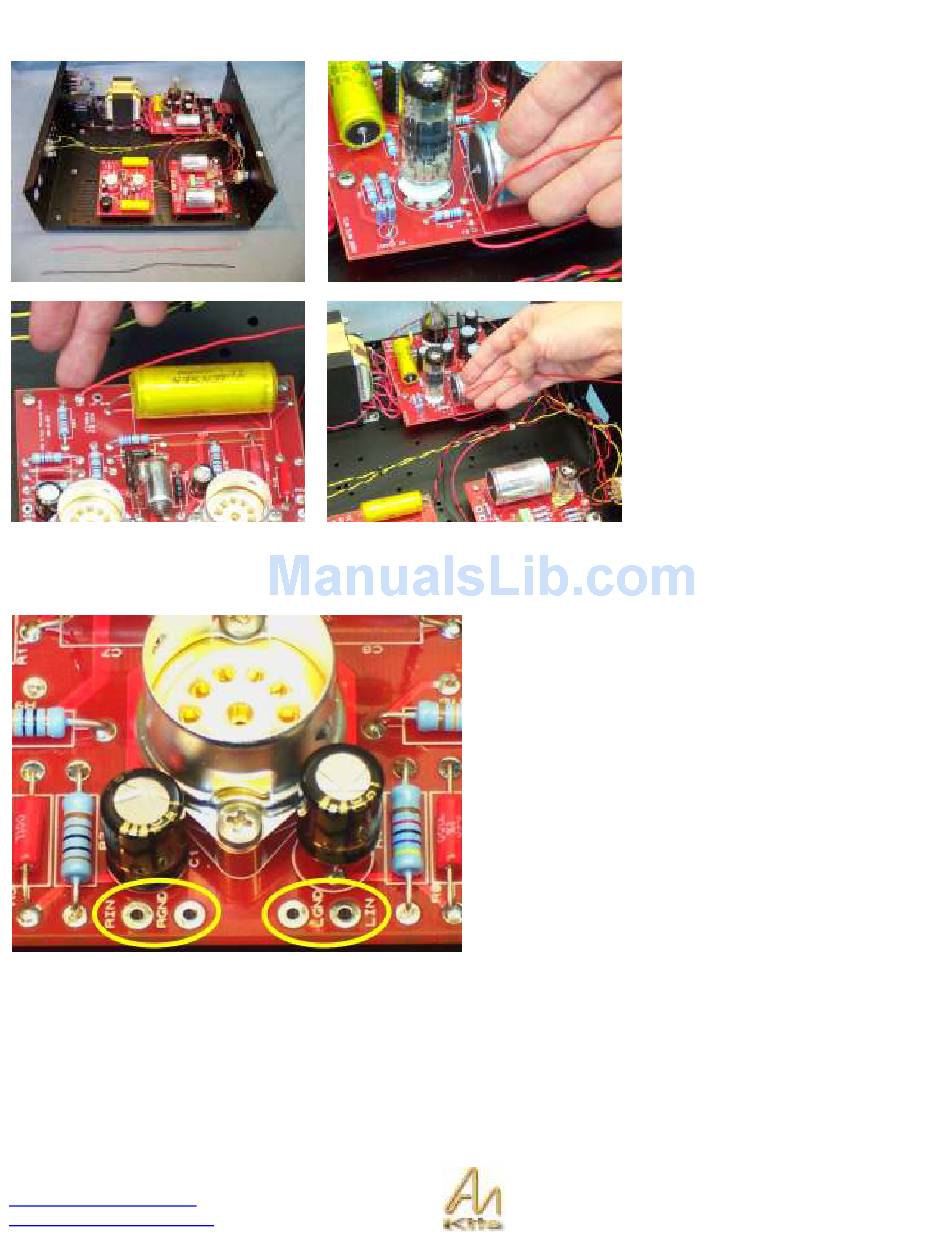

Now we are going to take the two
lengths of PTFE wire for the HT and
GND.
Let's begin by connecting one end of
the red cable to one of the B+ pads on
the M2 power supply board.
Now let's hook up the B+ to the
PHONO Board's HT pad.
Once the HT is connected then also
connect a Black PTFE wire from the
GND in the corner of the M2 Power
Supply to the HT GND on the Phono
Board - You can twist the black wire
around the red wire (HT & HT GND).
Begin by installing two RCA's in the back panel in the
phono position.
Here is a close up of the input section of the PHONO board
- you will connect the signal and GND to the RIN and
RGND.
