Installing the IEC Socket (AC Socket) and Rocker Switch

www.AudioNoteKits.com

audionotekits@rogers.com

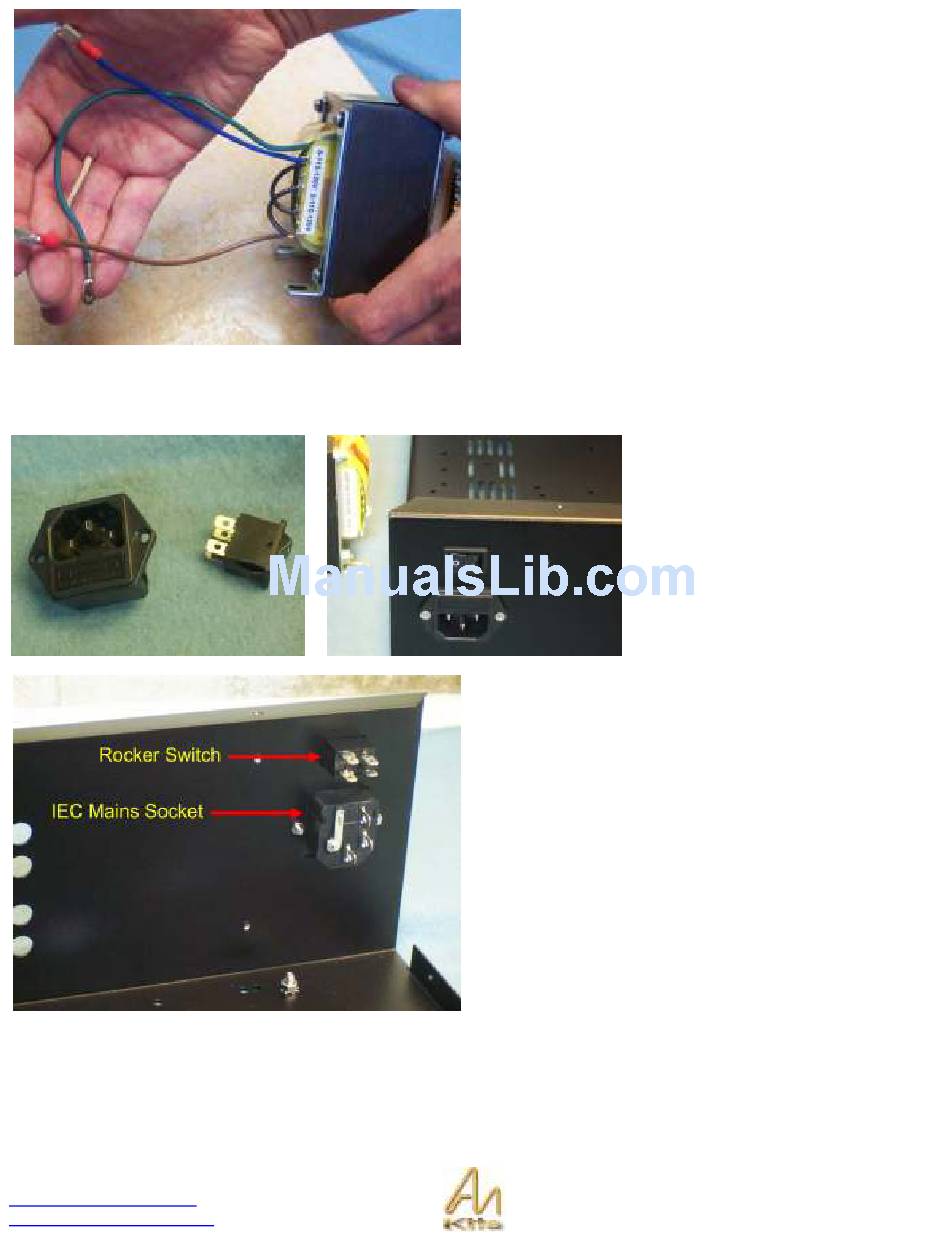

Here, the wires are soldered onto the top-most 0v and the

bottom-most 120v for North American/Canadian 120v.

Remember, we are wiring here for 120v - if your region is

different then you will need to consult the regional wiring

chart to determine how you inter-wire for your region.

The rocker switch simply snaps into

pace in the chassis slot.

Use the CSK M3 10mm screw and M3

nut to secure the IEC socket into

position.

Here you can see the correct installation of the IEC socket

and rocker switch from inside the chassis.

Page 12
