Installing the Resistors

Resistors
Copyright © 2007, 2008 AudioNote Kits
www.AudioNoteKits.com
audionotekits@rogers.com
2
2
1
2
2
2
2
2
2
2

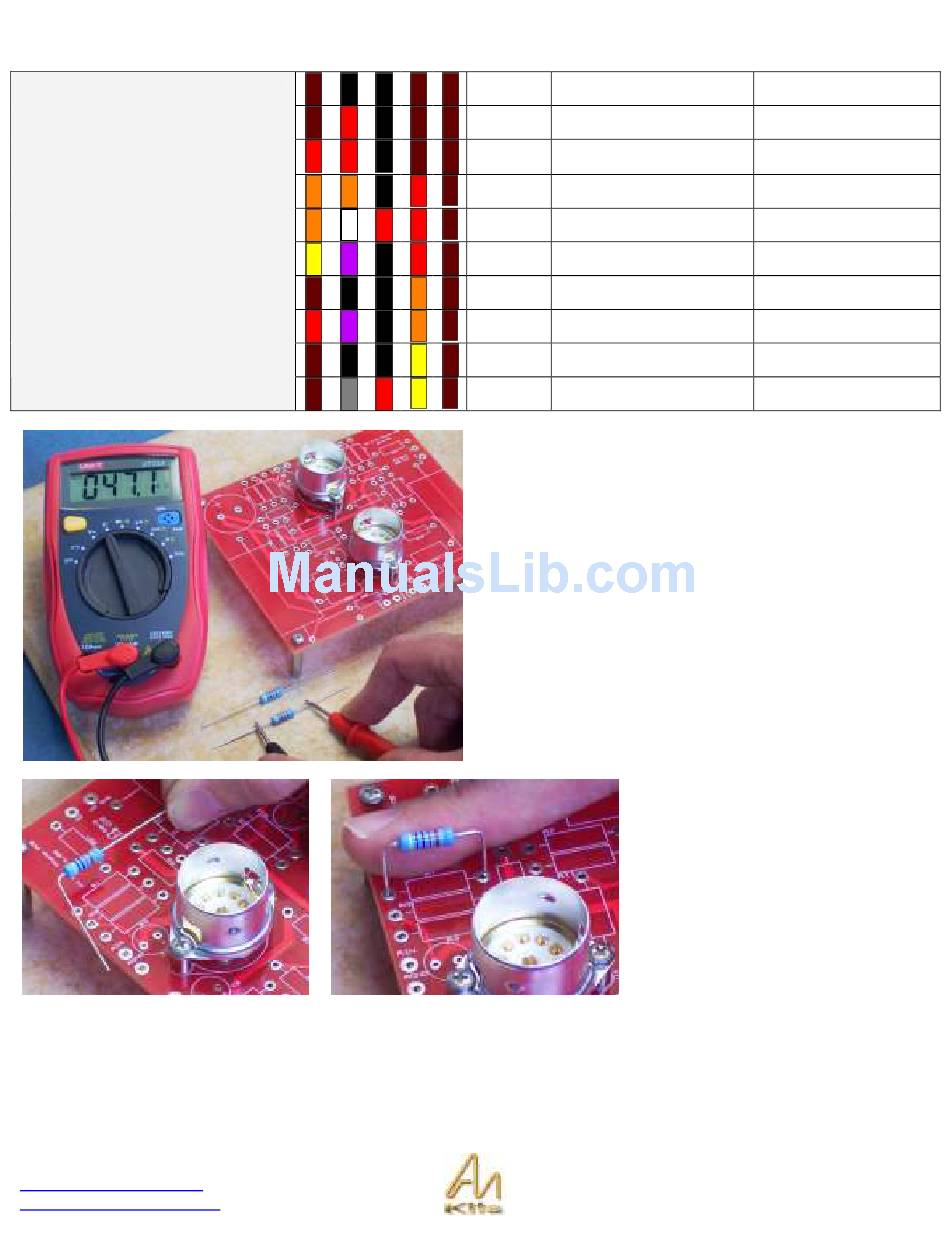

You can check out the color code chart for the resistors or
use an ohmmeter to verify the value prior to insertion.
Lets start by installing R1 & R2, which are the 47K input
resistors.
Could be time to get out your schematic and see which
resistors you are installing – this is a good way to double
check your work.
Do a nice gentle bend on the resistor
so that it can be placed neatly through
the holes in the PCB in the correct
designation location.
1K R3, R4, R15, R16
1K2 R5, R6
2K2
33K R18, R19
39K2 R11, R12
47K R1, R2
100K R9, R10
270K R7, R8
1M R19, R20
1M82 R13, R14
Page 72
R21
