Audio Note L2 Line Preamplifier Instruction Manual page 74

Capacitors (Electrolytic)
Lets install the electrolytic capacitors now – these are polarized and must be installed the correct way around.
Copyright © 2007, 2008 AudioNote Kits
www.AudioNoteKits.com
audionotekits@rogers.com

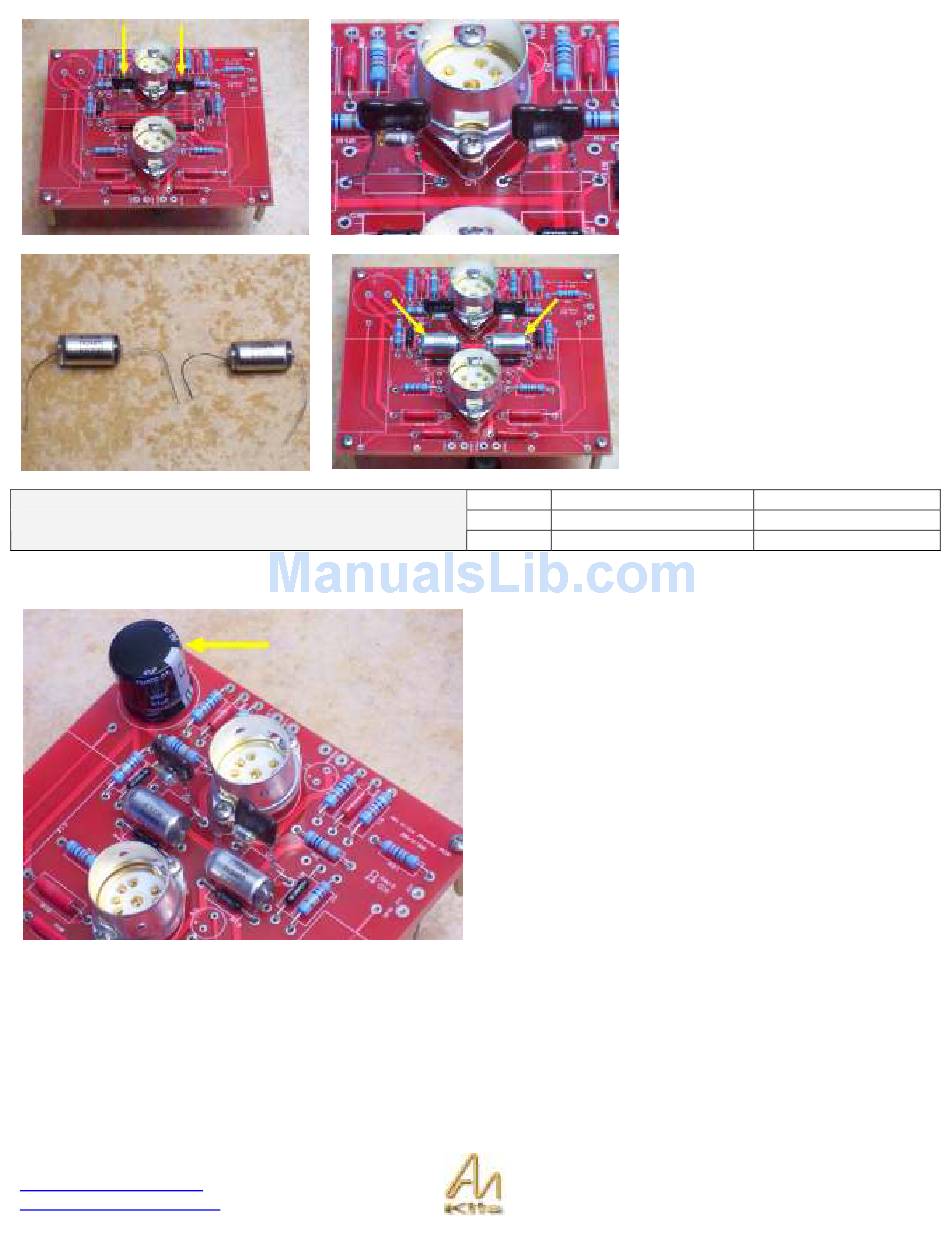

Here are C7 and C8 installed on the
board.
Now go ahead and install the 8200p or
8N2 farad capacitors into positions C5
and C6.
The remaining film capacitors will be
dealt with later.
2
2
1
Here you can see we have installed the first of the
electrolytics - It's a 47uf snap in capacitor - note the
NEGATIVE stripe on the side of the cap - this is facing into
the board.
You will see a + designator on the board itself.
470uf 16v
100uf 10v
47uf 450v
C9, C10
C1, C2
C13
Page 74
