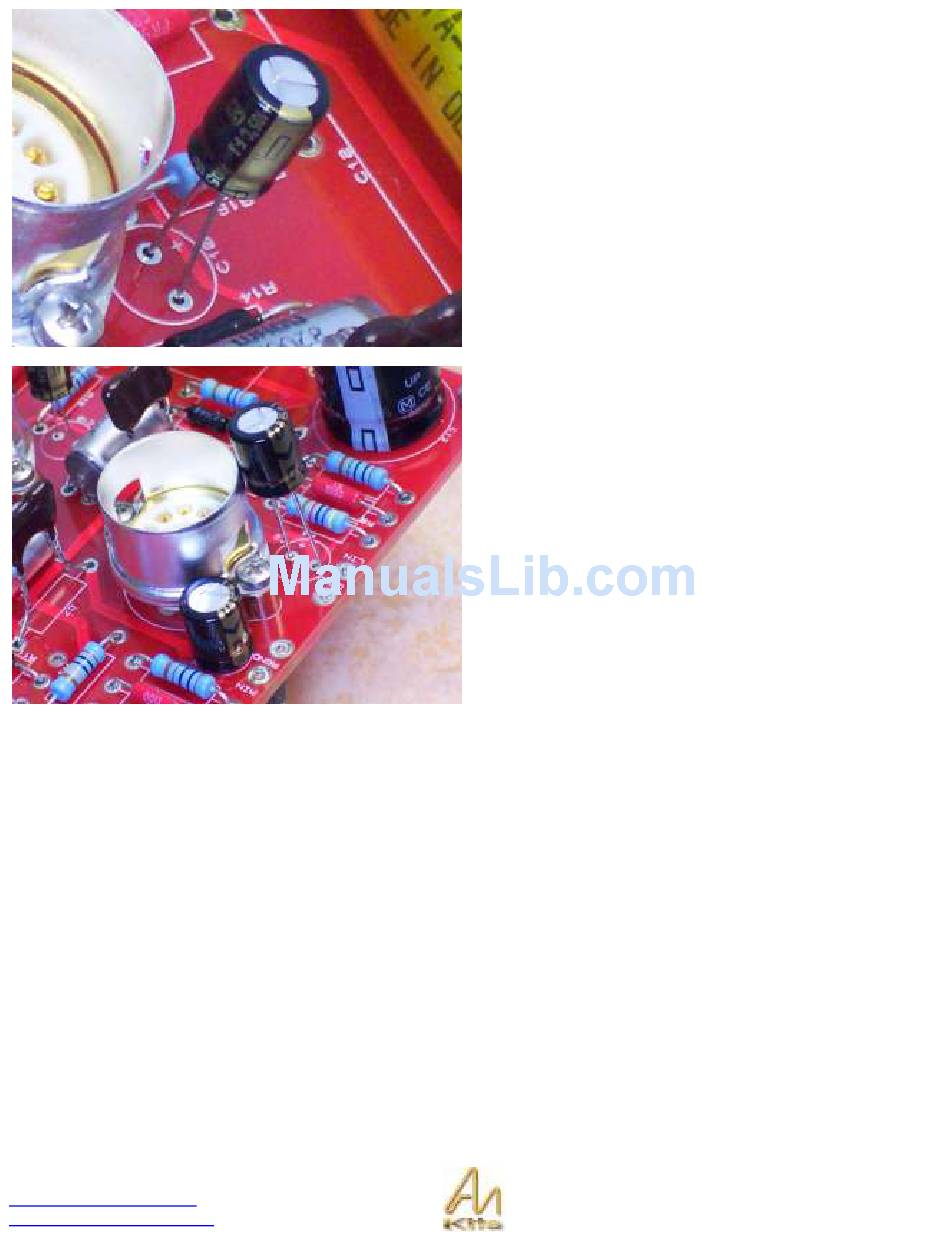

Here we are installing the electrolytic capacitor 470uf 16v in
C10 – note the + stenciled on the board and the negative
stripe of the capacitor on the opposite side – These value
capacitors are used on the cathodes on the tubes.
Go ahead and install C9 also; again taking care to get the
polarity right.
And finally we can install the 100uf 10V caps into C1 and
C2 – note the location of the stripe – the cap standing up is
to show you the + stencil on the board!
