Installing resistors in the HT ADJUST position

Copyright © 2007, 2008 AudioNote Kits
www.AudioNoteKits.com
audionotekits@rogers.com
Once the joints have been made, give them a quick
inspection and touch up any that look suspicious in any
way.

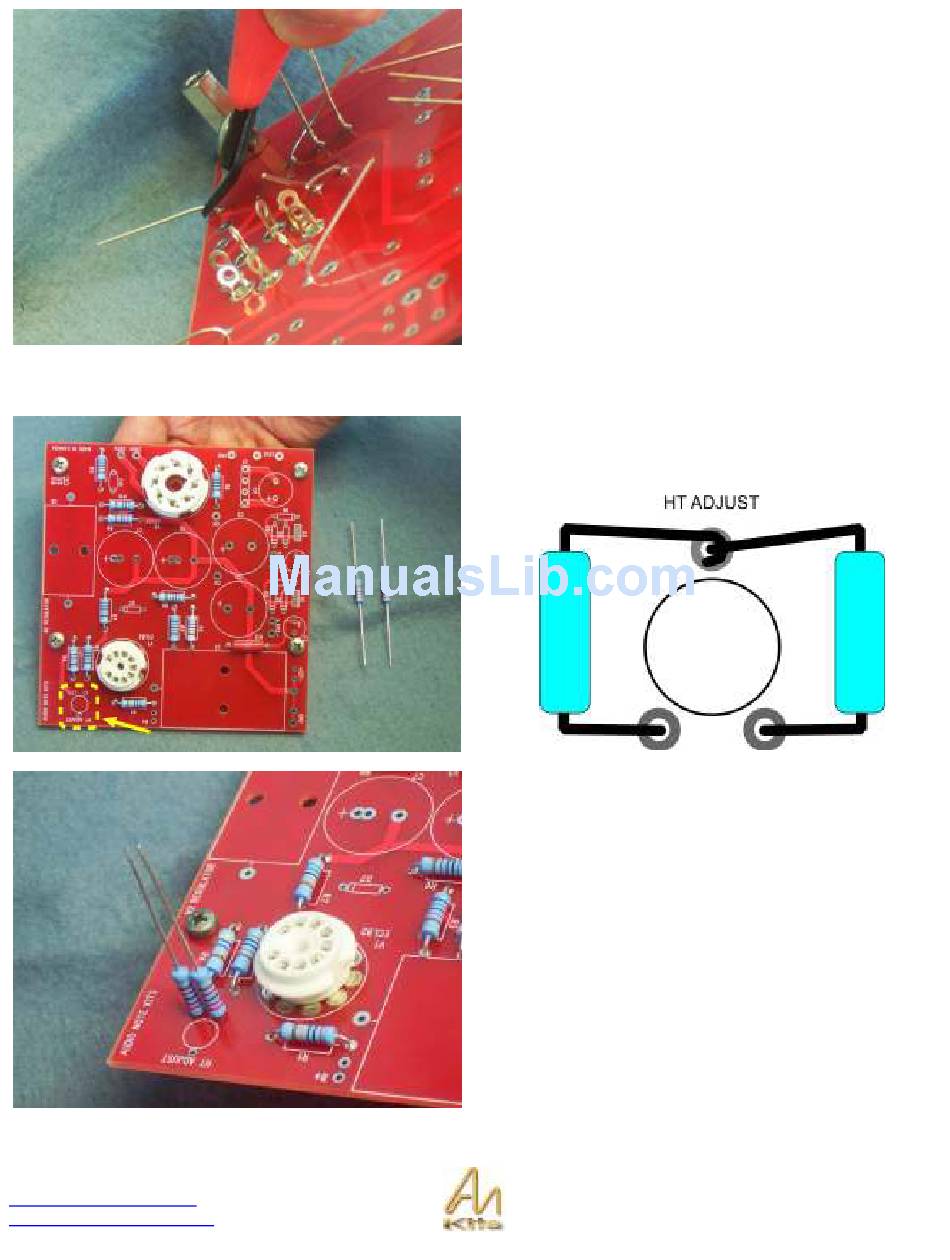

Next step is to clip the leads - you want to do this but be
careful not to clip off too close to the board where you
endanger the pad – see picture opposite for a good
example.
We used to use a little trim pot in this position – but due to
its unavailability we are now using a resistor combination to
do this. The diagram below illustrates what we are about to
do:
Insert the resistors into position as shown.
Page 23
