3.7.5. REMOVING THE GAS SOLENOID VALVE (electronic versions only)

In order to remove the gas thermostat, first disconnect the appliance from the electrical power
supply and the shut off the gas supply. The remove the upper panels from the oven. To so,
proceed as follows:
1. Remove the gas inlet coupling (figG. 67 and 68, pos. 2).
2. Remove the two screws which secure the solenoid valve assembly to the side of the oven
(fig. 66, pos. 2).
3. Unscrew the tube which delivers gas to the oven burner (fig. 68, pos. 3).
4. Detach the wiring from the main solenoid valve and the flame control solenoid valve (fig.
67, pos. 3 and 5).

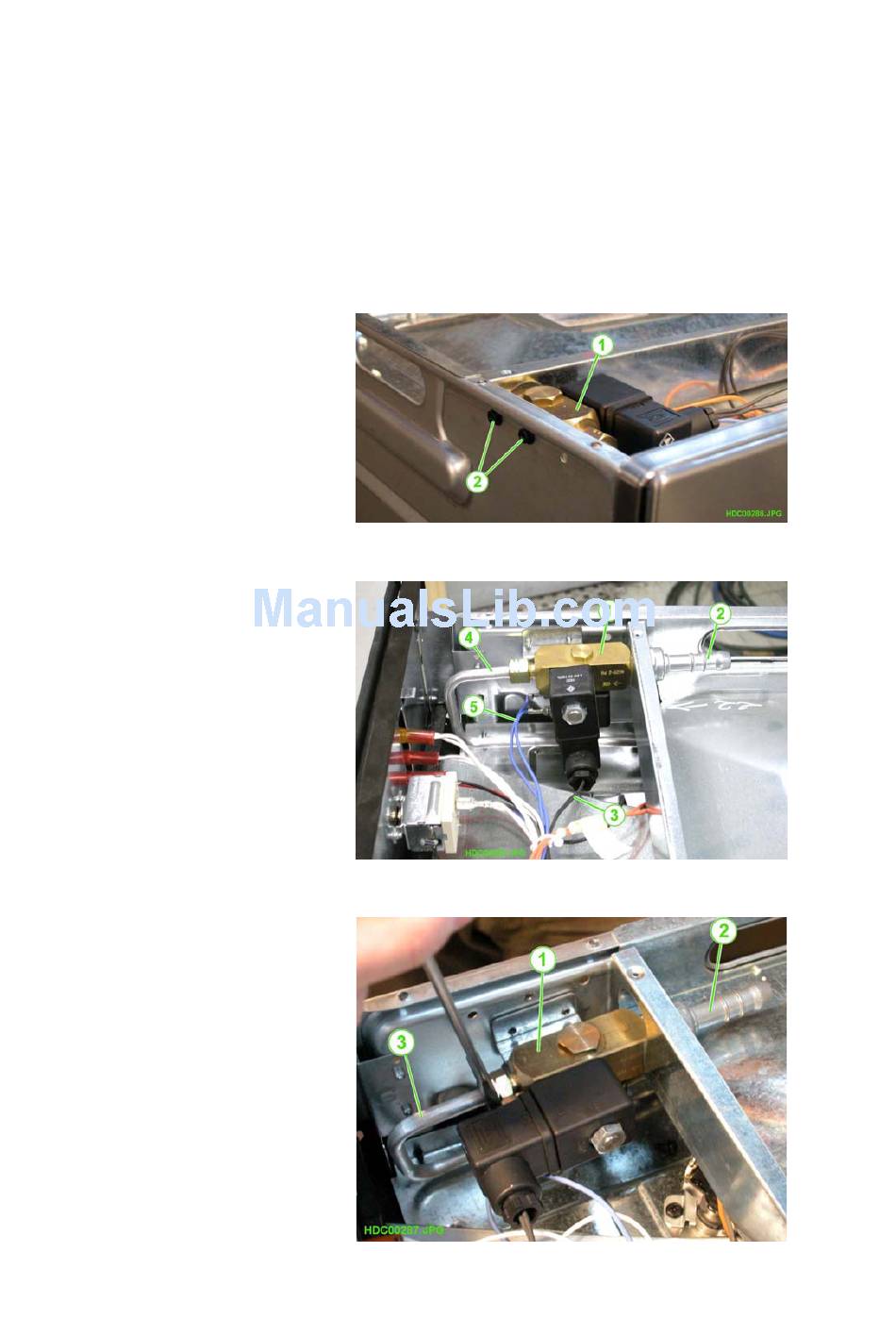

1. SOLENOID VALVE ASSEMBLY
2. SCREWS
Fig. 67
1. SOLENOID VALVE ASSEMBLY
2. GAS INLET COUPLING
3. WIRING TO SOLENOID VALVE
(MAIN SECTION)
4. GAS DELIVERY PIPE TO
OVEN BURNER
5. WIRING TO SOLENOID VALVE
(FLAME CONTROL)
1. SOLENOID VALVE ASSEMBLY
2. GAS INLET COUPLING
3. GAS DELIVERY PIPE TO
OVEN BURNER
