VoiceFinder AP1200 VoIP Gateway Installation Guide Version 1.0
[Ethernet Cable Assemble (RJ-45 to RJ-45) Pinout]
In order to connect the gateway with other equipments (i.e. HUB), the RJ-45 to RJ-45
Ethernet Cable is used. The RJ-45 Connector Pin sequence is provided below and the
transferred signal and Pinout specifications are enlisted at the below table.

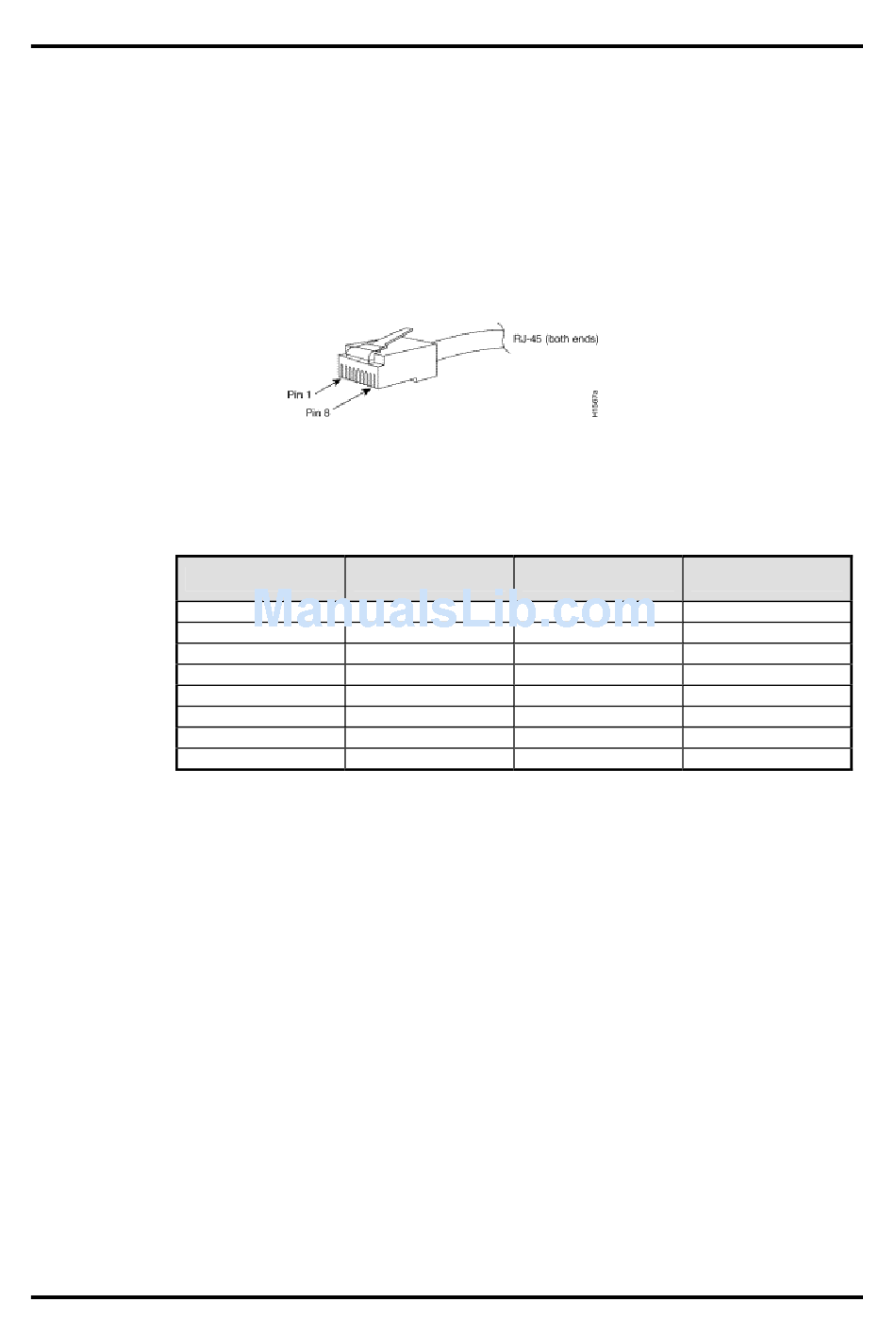

Figure 4-1: 10Base-T RJ-45 Connector

Table 4-2: Signal and Pinout of Direct Ethernet Cable

1. These specifications are for serial cables connecting the gateway and the HUB.
2. For gateway to gateway or gateway to PC connection, the Cross Cable must be
used.
AddPac Technology Co., Ltd.
RJ-45 Signal
1
2
3
4
5
6
7
8
Direction
Tx +
Tx -
Rx +
-
-
Rx -
-
-
RJ-45 Pin
→
→
←
-
-
←
-
-
1
2
3
4
5
6
7
8
44
- -
