VoiceFinder AP1200 Interfaces and Cable connection

Install VoiceFinder AP1200 Gateway at the suitable place illustrated at Chapter 2.

Async Serial Interface Connection

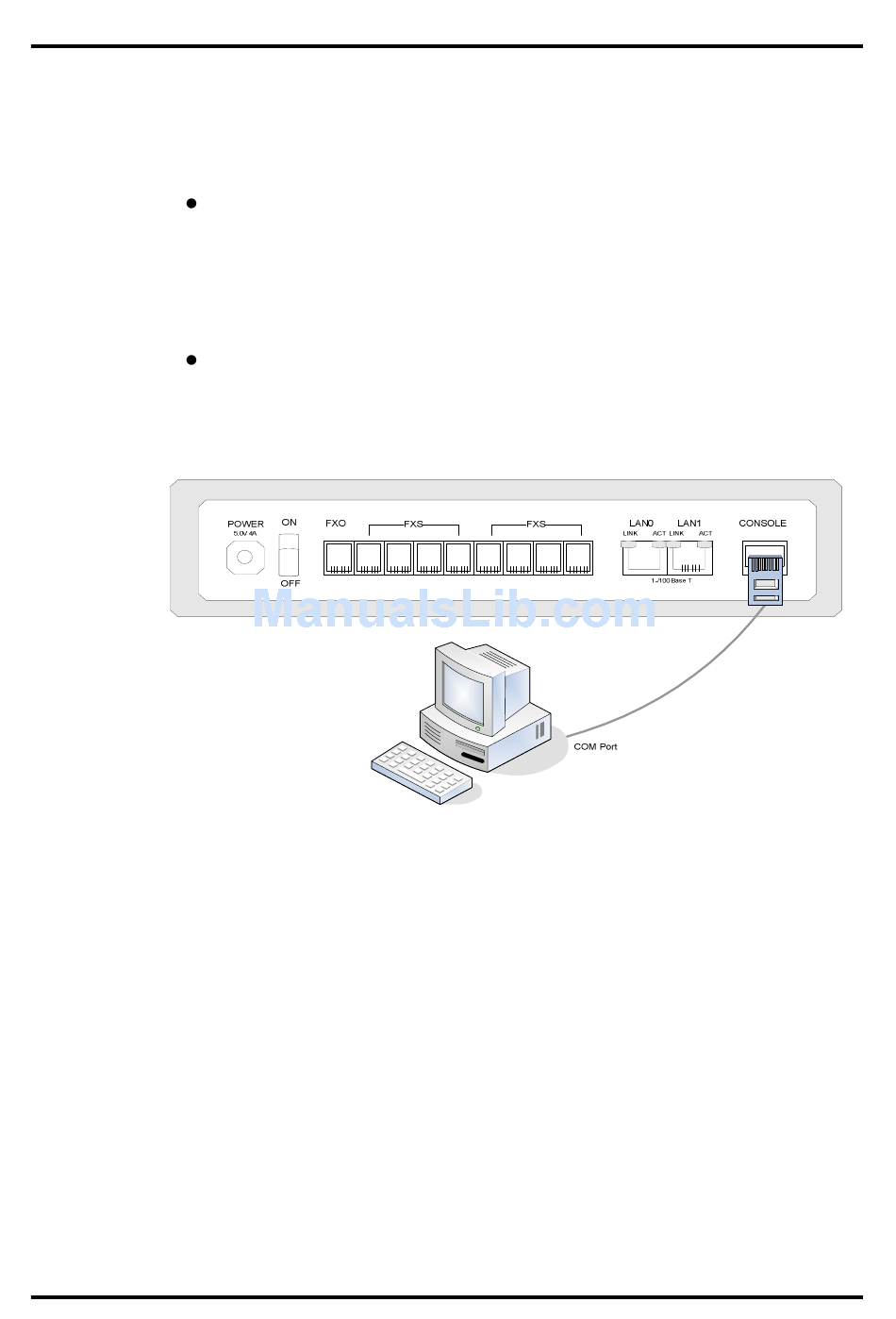

Figure 3-1: RS-232C Console port interface diagram between AP1200 VoIP
Gateway and PC or notebook computer
AddPac Technology Co., Ltd.
Connect RJ45 connector of RS-232C serial console cable to the Console port and
connect the other side of the cable at the serial port of the PC.
