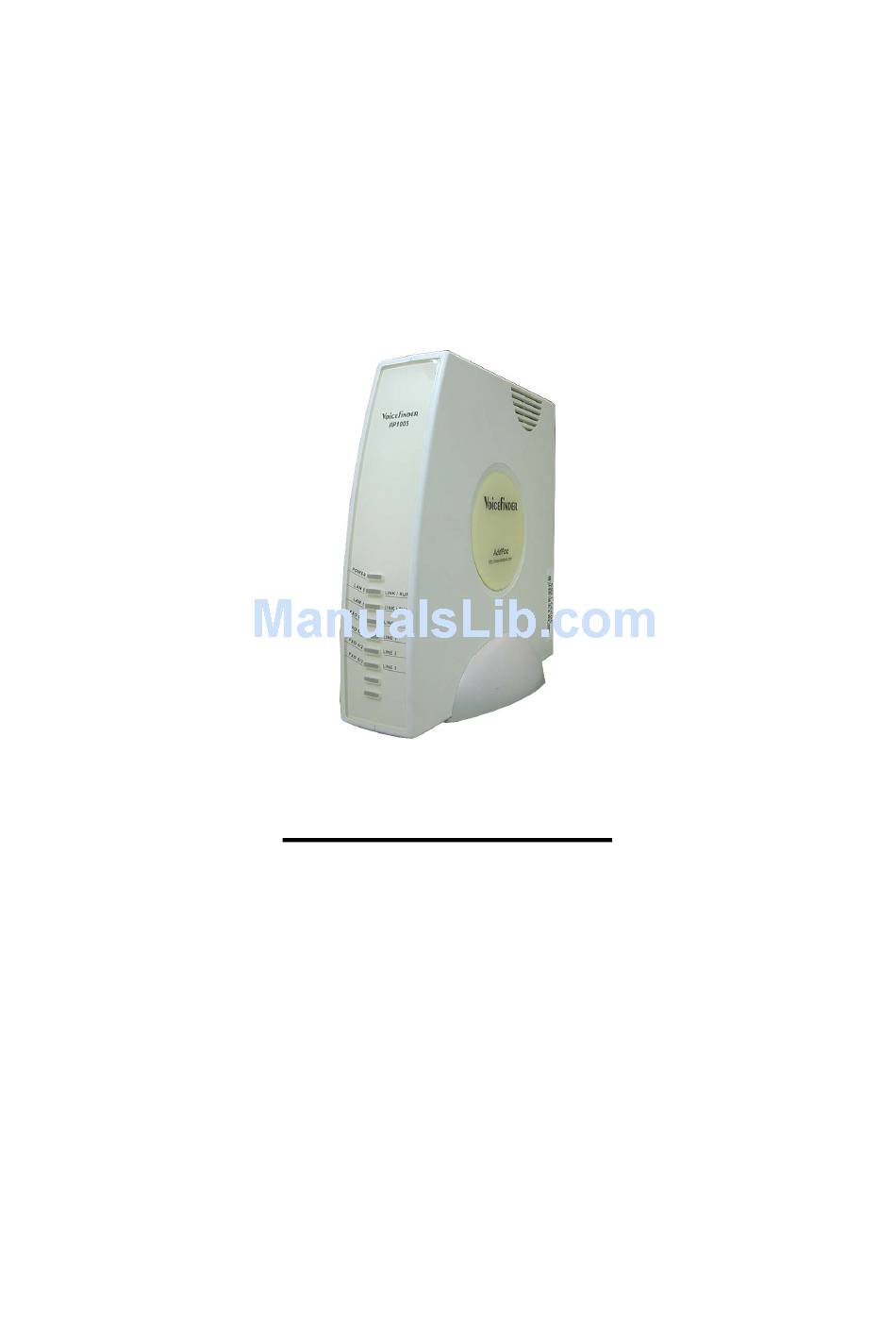

Page 1: Voip Gateway
VoiceFinder AP1005 VoIP Gateway Installation Guide Release 1.0 June. 2003 AddPac Technology Co., Ltd. 2/ 3F, Jeong-Am Bldg, Kangnam-Gu, Seoul, Korea. Zip 135-080 Phone (82 2) 568-3848 Fax (82 2) 568-3847 E-mail: info@addpac.com http://www.addpac.com... -
Page 2: Table Of Contents
VoiceFinder AP1005 VoIP Gateway Installation Guide Version 1.0 [Contents] About This Guide Chapter 1. VoiceFinder AP1005 VoIP Gateway Overview ..............10 Introduction to VoiceFinder AP1005 VoIP Gateway................10 Main Features .............................12 Hardware Description ........................12 Voice over IP Service........................13 IP Routing Protocols ........................13 Network Managements .........................14... - Page 3 VoiceFinder AP1005 VoIP Gateway Installation Guide Version 1.0 Chapter 4. Appendix ..........................38 VoiceFinder AP1005 Gateway Technical Description..............38 Cable Specification ..........................41 AddPac Technology Co., Ltd.
- Page 4 [Table of Figures] Figure 1-1: The network diagram using VoiceFinder AP1005 Gateway .............10 Figure 1-2: The exterior view of VoiceFinder AP1005 Gateway ..............11 Figure 1-3: VoiceFinder AP1005 Gateway front view..................16 Figure 1-4: The rear panel picture of VoiceFinder AP1005 Gateway............18 Figure 3-1: Connect VoiceFinder AP1005 Gateway and Console PC ............26...
- Page 5 [Table of Tables] Table 1-1: The Front panel LEDs of VoiceFinder AP1005 Gateway ............17 Table 1-2: The parts and description on the rear panel of VoiceFinder AP1005 Gateway......18 Table 3-1: VoiceFinder AP1005 Gateway package ..................25 Table 3-2: The LEDs and description of VoiceFinder AP1005 Gateway .............30 Table 4-1: The transferred signal and Pinout specification .................41...
-
Page 6: About This Guide
Chapter 1 『VoiceFinder AP1005 VoIP Gateway Overview』provides an introduction to the H/W and S/W of VoiceFinder AP1005 Series VoIP Gateway and how to apply for the technical supports. Chapter 2 『Before Installation』provides an explanation on the installation environment and cable requirements along with recommendations for safe operation of the equipment. - Page 7 VoiceFinder AP1005 VoIP Gateway Installation Guide Version 1.0 For technical supports, please contact AddPac Technology Co. Ltd. AddPac Technology Co., Ltd 2/ 3 Fl. Jeong-Am Bulding, 769-12 Yeoksam- Dong, Kangnam-Ku, Seoul, Korea Phone (02) 568-3848 Fax (02) 568-3847 E-mail: info@addpac.com http://www.addpac.com...
- Page 8 VoiceFinder AP1005 VoIP Gateway Installation Guide Version 1.0 The revision history of VoiceFinder AP1005 VoIP Gateway Installation Guide is as follows. Revision No. Date Comments Written by AddPac Version 1.0 June 2003 Edition R&D Center AddPac Technology Co., Ltd.
- Page 9 VoiceFinder AP1005 VoIP Gateway Installation Guide Version 1.0 [Symbols and Legends] The symbols and legends used in this User’s Manual are as follows: Commands and Keywords are typed in Bold. Variables that require user inputs are typed in Italic. Square brackets ([]) are optional values.
-
Page 10: Chapter 1. Voicefinder Ap1005 Voip Gateway Overview
Introduction to VoiceFinder AP1005 VoIP Gateway Information VoiceFinder AP1005 VoIP Residential Gateway offers Voice over IP service by connecting Local Area Networks, Wide Area Network or broadband network of ADSL. The below is the network diagram using VoiceFinder AP1005 Gateway. -

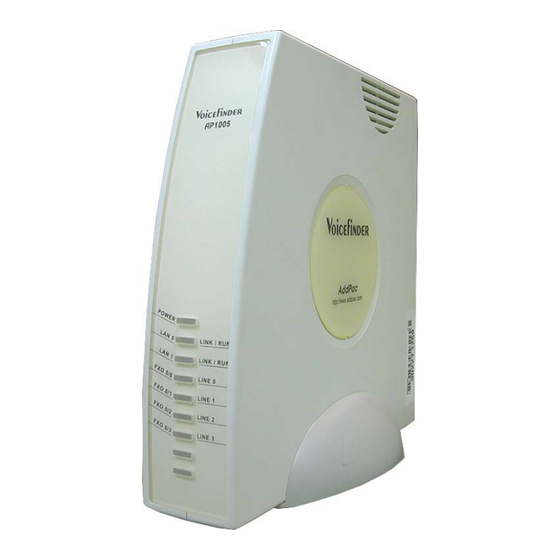

Page 11: Figure 1-2: The Exterior View Of Voicefinder Ap1005 Gateway
(DHCP server mode) and can receive a dynamically assigned IP address from a DHCP Server (DHCP client mode). VoiceFinder AP1005 Gateway solves the IP address shortage problem by using NAT (Network Address Translation) protocol. AddPac Technology Co., Ltd. -
Page 12: Main Features
Internet subscribers of ADSL and cable modem. Also, VoiceFinder AP1005 Gateway is easy to install and operate, even for first time users and offers Static, RIP v1/2 and OSPF v2 routing function. -
Page 13: Voice Over Ip Service
Interoperable with SIP Proxy Servers Interoperable with MGCs IP Routing Protocols VoiceFinder AP1005 Gateway supports various IP routing protocols. The main IP routing features are followings. Supports various IP routing and bridging protocol Static, RIP v1/v2, OSPF v2 routing protocols Transparent Bridging (IEEE Spanning Tree Protocol) AddPac Technology Co., Ltd. -
Page 14: Network Managements
VoiceFinder AP1005 VoIP Gateway Installation Guide Version 1.0 Network Managements VoiceFinder AP1005 Gateway supports various network management protocols and functions. Standard SNMP Agent (MIB v2), MIB II, Bridge MIB Support Consols function with Async. Port. Remote Management using Console, Rlogin, Telnet. -
Page 15: Operation And Managements
VoiceFinder AP1005 VoIP Gateway Installation Guide Version 1.0 Operation and Managements VoiceFinder AP1005 Gateway supports following operation and maintenance features. System Performance Analysis for Process, CPU, Connection I/F Configuration Backup & Restore for APOS Managements Debugging, System Auditing, and Diagnostics Support... -
Page 16: Hardware Configuration And Network Interfaces
Gateway. VoiceFinder AP1005 Gateway Part & Description VoiceFinder AP1005 Gateway is made by the high intensity ABS with compact design. The front panel of VoiceFinder AP1005 Gateway includes various LEDs indicating the operational status of the device. On the rear panel, there is a LAN0 interface for WAN connection and LAN1 interface for LAN connection. -
Page 17: Rear View Of Ap1005
VoiceFinder AP1005 VoIP Gateway Installation Guide Version 1.0 Table 1-1 shows the functional explanation about each LED of VoiceFinder AP1005 VoIP Residential Gateway. Table 1-1: The Front panel LEDs of VoiceFinder AP1005 Gateway Explanation Power LED, display whether external power is supplied normally or not. -
Page 18: Figure 1-4: The Rear Panel Picture Of Voicefinder Ap1005 Gateway
VoiceFinder AP1005 VoIP Gateway Installation Guide Version 1.0 Figure 1-4: The rear panel picture of VoiceFinder AP1005 Gateway Following Table 1-2 explains the standard interface configuration of AP1005 VoIP Residential Gateway. Table 1-2: The parts and description on the rear panel of VoiceFinder AP1005 Gateway Interface Explanation... -
Page 19: Network Interface
It is a RJ45 type standard interface. 1-Port 10Mbps Ethernet LAN Interface (RJ45) VoiceFinder AP1005 VoIP Gateway offers one (1) 10Mbps Ethernet interface to form Local Area Network (LAN). It is a RJ45 type standard interface. 1-Port Async. Serial Interface for Console Port (RJ45) VoiceFinder AP1005 Gateway provides network management features using an RS- 232C asynchronous serial interface port. -
Page 20: Voice Processing Interfaces
VoiceFinder AP1005 VoIP Gateway Installation Guide Version 1.0 Voice Processing Interfaces The fixed voice interface of VoiceFinder AP1005 Gateway can be connected to the PBX. FXO Interface voice processing port VoiceFinder AP1005 Gateway is a network device offering not only data service, but also voice service at one device. -
Page 21: Chapter 2. Before Installation
Ensure VoiceFinder AP1005 Gateway is in a dust-free environment before and after installation. Make sure to install VoiceFinder AP1005 Gateway on a flat and safe surface. To prevent accidents, be careful with ties, scarf, sleeves, and any other loose clothing from entangling with the chassis. -
Page 22: General Requirements
If no wrist strap is available, earthening by holding a metal part of the Chassis will help prevent static electricity. General Requirements VoiceFinder AP1005 Gateway is ready for use where other electronic products can be Warning used. However, the following conditions are recommended for maximum performance. -
Page 23: Network Connection Requirements
Consider EMI Standard and distance limitation while installing VoiceFinder AP1005 Warning Gateway. The below explains PSTN cable, Ethernet cable, Console Cable of VoiceFinder AP1005 Gateway. Necessaries Unless ordered in advance, the tools and certain cables are not provided in the package. -
Page 24: Ethernet Port
VoiceFinder AP1005 VoIP Gateway Installation Guide Version 1.0 Ethernet Port VoiceFinder AP1005 Gateway offers two (2) RJ45 type 10BaseTX Ethernet Ports on the rear panel and LEDs are indicating the port status are on the front panel. The PIN information of the Ethernet cable, refer to Chapter 4. -
Page 25: Chapter 3. Gateway Installation
Item Contents Q’ty VoiceFinder AP100X Gateway Main Body Ethernet Cable (RJ45 to RJ45) Console Cable (RJ45 to DB9) Power supply External Adapter (110V/220V) If any item is missing, immediately contact AddPac Technology Co. Ltd. customer support. AddPac Technology Co., Ltd. -
Page 26: Voicefinder Ap1005 Interfaces And Cable Connection
VoiceFinder AP1005 VoIP Gateway Installation Guide Version 1.0 VoiceFinder AP1005 Interfaces and Cable connection Install VoiceFinder AP1005 Gateway at the suitable place illustrated at Chapter 2. Async Serial Interface Connection Connect RJ45 connector of RS-232C serial console cable to the Console port and connect the other side of the cable at the serial port of the PC. -
Page 27: Ethernet Interface Connection
VoiceFinder AP1005 VoIP Gateway Installation Guide Version 1.0 Ethernet Interface Connection Connect LAN0 port of VoiceFinder AP1005 Gateway and WAN port of the LAN device with RJ45 UTP cable. Also, connect LAN1 interface with LAN interface of PC. Figure 3-2: Connect VoiceFinder AP1005 Gateway with WAN and normal PC... -
Page 28: Fxo Interface Connection
VoiceFinder AP1005 VoIP Gateway Installation Guide Version 1.0 FXO Interface Connection Connect FXO Interfaces to PBX (Private Branch eXchange) with RJ11 cable. RJ11 to RJ11 Phone Cable Figure 3-3: Connect VoiceFinder AP1005 Gateway and PBX AddPac Technology Co., Ltd. -
Page 29: Booting
Booting When power is supplied, the system is booted as described below VoiceFinder AP1005 Gateway performs a self-test and checks basic operations of the CPU, the memory and interfaces. The boot loader is executed, and the boot loader seeks for proper software image files. -
Page 30: Figure 3-4: The Front Panel Of Voicefinder Ap1005 Gateway
Danger After connecting all the interfaces, supply the power to VoiceFinder AP1005 Gateway. Supply the power after connecting the adapter to VoiceFinder AP1005 Gateway. Do not connect the adapter to the power supply before connecting it to the gateway. Also, use 110V adapter in case the power supply is 110V. - Page 31 (Orange) LINE 3 Display the Operation Status of the number “3” Line Port To check the operation status of VoiceFinder AP1005 Gateway, check the ‘(1) POWER LED’ and ‘(2)LAN0 LED & (3)LAN1 LED’ indicating Ethernet Link. AddPac Technology Co., Ltd.
-
Page 32: Use Console Terminal With Hyperterminal
VoiceFinder AP1005 VoIP Gateway Installation Guide Version 1.0 Use Console terminal with HyperTerminal To use a PC as a Console terminal, the communication emulator application should be installed. When the PC is MS-Windows line, use the HyperTerminal Application. Figure 3-5: MS-Windows Communication Emulator HyperTerminal... -
Page 33: Figure 3-6: Assign A Name For The New Connection
VoiceFinder AP1005 VoIP Gateway Installation Guide Version 1.0 Assign a name to the connection. “AddPac” is used at the below example. Figure 3-6: Assign a name for the new connection AddPac Technology Co., Ltd. -
Page 34: Figure 3-7: Select The Interface For Console Cable
VoiceFinder AP1005 VoIP Gateway Installation Guide Version 1.0 Select the interface whether the Console cable is connected. Typically, the Console cable is connected to the RS-232C 9Pin Serial Port, so select the right port according to the user environment. “COM1” is selected at the below example. -
Page 35: Figure 3-8: Com1 Properties
VoiceFinder AP1005 VoIP Gateway Installation Guide Version 1.0 Set the port information. The below examples is based on “COM1” port. Figure 3-8: COM1 Properties AddPac Technology Co., Ltd. - Page 36 VoiceFinder AP1005 VoIP Gateway Installation Guide Version 1.0 After the configuration, press “Enter” button, then the below message will be displayed on the HyperTerminal. This message shows the routing S/W version, Gateway H/W test result, memory and etc. System Boot Loader, Version 1.4.6/MEM Copyright (c) by AddPac Technology Co., Ltd.
-
Page 37: Figure 3-9: The Hyperterminal Message Of Voicefinder Ap1005 Gateway
After the log-in process, the prompt “router#” is displayed on the console terminal. There are two types of prompts used for VoiceFinder AP1005 Gateway: “router>” and “router#”. The “ > ” prompt indicates that the user is not an administrator. With this prompt, the user is unable to use certain commands: particularly the configuration commands. -
Page 38: Chapter 4. Appendix
VoiceFinder AP1005 VoIP Gateway Installation Guide Version 1.0 Chapter 4. Appendix VoiceFinder AP1005 Gateway Technical Description This Chapter explains the supported Technical Specification of VoiceFinder AP100X VoIP Gateway. (* means that the item is not yet implemented.) IP Routing Service... - Page 39 VoiceFinder AP1005 VoIP Gateway Installation Guide Version 1.0 Network Managements SNMP Standard SNMP Agent MIB v2 Web Based Management using HTTP Server Interface Traffic Queuing Others Frame-Relay Flow Control Security Functions IP Access List Standard and Extended IP Access List, IP Packet Filtering...
-
Page 40: Hardware Specification
VoiceFinder AP1005 VoIP Gateway Installation Guide Version 1.0 User Interface Industry Standard Command Line Interface (CLI) Others Network Time Protocol (NTP) Support Hardware Specification 32bit RISC Microprocessor Microprocessor 1-Port 10Mbps Ethernet Interface for WAN (RJ45) 1-Port 10Mbps Ethernet Interface for LAN (RJ45) -
Page 41: Table 4-1: The Transferred Signal And Pinout Specification
VoiceFinder AP1005 VoIP Gateway Installation Guide Version 1.0 Cable Specification This Appendix provides information about the Pinout specifications of the following cables used with VoiceFinder AP100X Gateway. Console Port Signal and Pinout (RJ-45 to DB9) Ethernet Cable Assemble (RJ-45 to RJ-45) Pinout [Console Port Signal &... -
Page 42: Figure 4-1: 10Base-T Rj-45 Connector
VoiceFinder AP1005 VoIP Gateway Installation Guide Version 1.0 [Ethernet Cable Assemble (RJ-45 to RJ-45) Pinout] In order to connect the gateway with other equipments (i.e. HUB), the RJ-45 to RJ-45 Ethernet Cable is used. The RJ-45 Connector Pin sequence is provided below and the transferred signal and Pinout specifications are enlisted at the below table.
