- Page 1 AP-GS2800 Multi-Port GSM Gateway High Performance GSM Gateway Solution H/W Design Concept AddPac Technology 2012, Sales and Marketing www.addpac.com...
- Page 2 • AP-N1-GSM4 Module Diagram • AP-N1-GSM4 H/W Block Diagram • 28-Port GSM Service Configuration 28 Port GSM Service Configuration • 24-Port GSM + Digital E1/T1 Service Configuration • 28-Port GSM Service Network Diagram 28 Port GSM Service Network Diagram www.addpac.com...
- Page 3 • Two(2)10/100Mbps Fast Ethernet • One(1) RS-232C Port for Command Line Interface • Firmware Upgradeable Architecture • VPMS (VoIP Plug&Play Management System) & NMS for Large Scale Deployment • Advanced Voice QoS Mechanism • Rack Mountable Chassis with Internal Power Supply www.addpac.com...
- Page 4 – 8-Port FXO Module (AP-N1-FXO8) – Digital E1/T1 Module (AP-N1-E1) • Network Interface -Two(2) 10/100Mbps Fast Ethernet (RJ45) Two(2) 10/100Mbps Fast Ethernet (RJ45) • RS232C Console Interface for CLI • Run LED, LAN LED, Port LEDs • Internal Power Supply www.addpac.com...

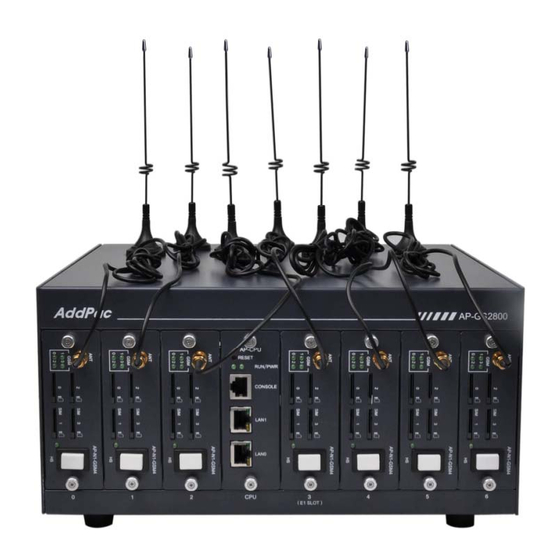

- Page 5 RISC Hardware Specification High-end Hardware Specification Hardware Specification Front Side View GSM Antenna Internal 4Ch Combiner Port LEDs Hot-Swap Switch CPU Module 4-Port GSM Module www.addpac.com...
- Page 6 RISC Hardware Specification Hardware Specification High-end Hardware Specification Hardware Specification Back Side View Cooling FAN Power Switch Power Inlet (110~220V) www.addpac.com...
- Page 7 RISC AP-N1-GSM4 Module Diagram High-end SIM Card Slot AP-N1-GSM4 (4-Port GSM Module) GSM Antenna Hot-Swap Switch Internal 4Ch Combiner Port LEDs www.addpac.com...
- Page 8 IP-PBX Module RISC Network Antenna Combiner Module RJ45 UART Flash Flash GSM Phone Module SDRAM Analog Phone to GSM Phone Analog Phone to GSM Phone IP Phone to GSM Phone IP Phone IP Phone Analog Phone to IP Phone www.addpac.com...
- Page 9 GSM Gateway Service Diagram 28-Port GSM Gateway Service Diagram AP-N1-GSM4 GSM Module Antenna IP-PBX Combiner AP-N1-GSM4 RISC Network GSM Module Antenna Combiner RJ45 Flash Flash AP-N1-GSM4 SDRAM GSM Module GSM Module GSM Ph GSM Phone Antenna Combiner IP Phone IP Phone www.addpac.com...
- Page 10 GSM Gateway Service Diagram 24-Port GSM + Digital E1/T1 Gateway Service Diagram GSM Phone AP-N1-GSM4 GSM Module Antenna IP-PBX Combiner RISC Network AP-N1-GSM4 GSM Module Antenna RJ45 Combiner Flash AP-N1-E1/T1 SDRAM Digital E1/T1 E1/T1 RJ45 Framer Framer IP Phone IP Phone www.addpac.com...
- Page 11 Network Service Diagram GSM Phone 10/100M Internet Network Media PSTN [WAN Router] Gateway 10/100M AP-GS2800 (28-Port GSM) Hybrid IP-PBX IPNext180 Analog Phone 10/100M 10/100M 10/100M Smart Web Manager www.addpac.com...
- Page 12 GSM Gateway Series GSM Gateway Series Thank you! AddPac Technology Co., Ltd. Sales and Marketing Sales and Marketing Phone +82.2.568.3848 (KOREA) FAX +82.2.568.3847 (KOREA) E-mail sales@addpac.com www.addpac.com...
