Device and Measuring Parameters

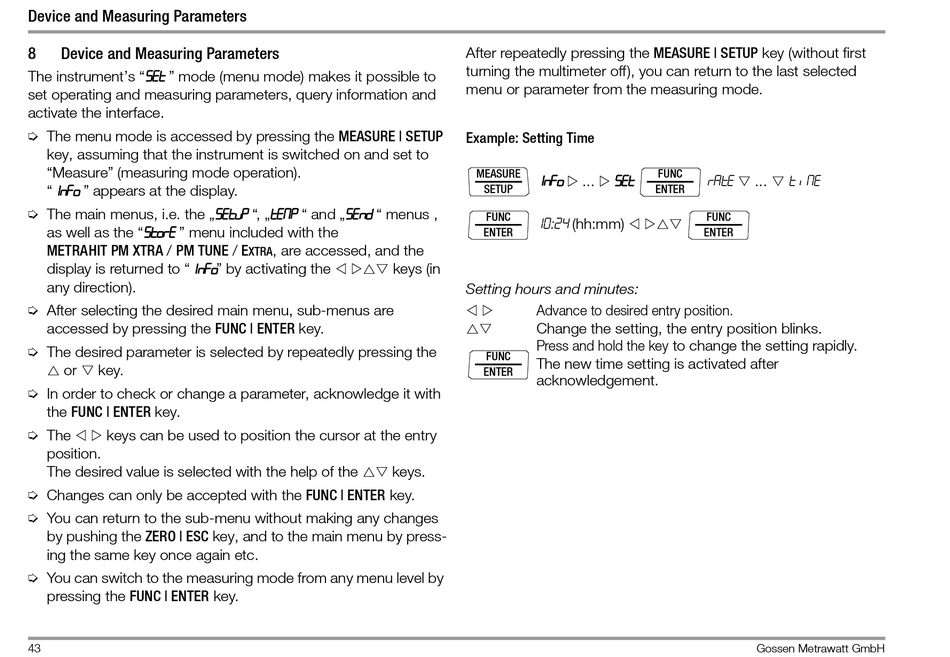

8 Device and Measuring Parameters
The instrument's "SET " mode (menu mode) makes it possible to
set operating and measuring parameters, query information and
activate the interface.
➭ The menu mode is accessed by pressing the MEASURE | SETUP
key, assuming that the instrument is switched on and set to
"Measure" (measuring mode operation).
"1nFo " appears at the display.
➭ The main menus, i.e. the „SETUP ", „tEMP " and „SEnd " menus ,
as well as the "StorE " menu included with the
METRAHIT PM XTRA / PM TUNE / E
display is returned to "1nFo" by activating the
any direction).
➭ After selecting the desired main menu, sub-menus are
accessed by pressing the FUNC | ENTER key.
➭ The desired parameter is selected by repeatedly pressing the
or key.
 
➭ In order to check or change a parameter, acknowledge it with
the FUNC | ENTER key.
➭ The keys can be used to position the cursor at the entry
 
position.
The desired value is selected with the help of the
➭ Changes can only be accepted with the FUNC | ENTER key.
➭ You can return to the sub-menu without making any changes
by pushing the ZERO | ESC key, and to the main menu by press-
ing the same key once again etc.
➭ You can switch to the measuring mode from any menu level by
pressing the FUNC | ENTER key.
43
, are accessed, and the
XTRA
keys (in
 
keys.

After repeatedly pressing the MEASURE | SETUP key (without first
turning the multimeter off), you can return to the last selected
menu or parameter from the measuring mode.
Example: Setting Time
MEASURE
...
1nFo   set
SETUP
FUNC
10:24 (hh:mm)
 
ENTER
Setting hours and minutes:
Advance to desired entry position.
 
Change the setting, the entry position blinks.

Press and hold the key to change the setting rapidly.
FUNC
The new time setting is activated after
ENTER
acknowledgement.
FUNC
...
rAte   t iME
ENTER
FUNC
ENTER
