VAR8 and Variants Operation, Commissioning, Fault Finding, and Maintenance Guide
19

Volume Control Configuration

Volume Controls allow remote control of the volume of specific input sources within a specific zone or zones.
Volume Controls are connected to Remote I/O Unit analogue inputs.
In order to configure a Volume Control proceed as follows.
To Connect a Volume Control to a Remote I/O Unit:

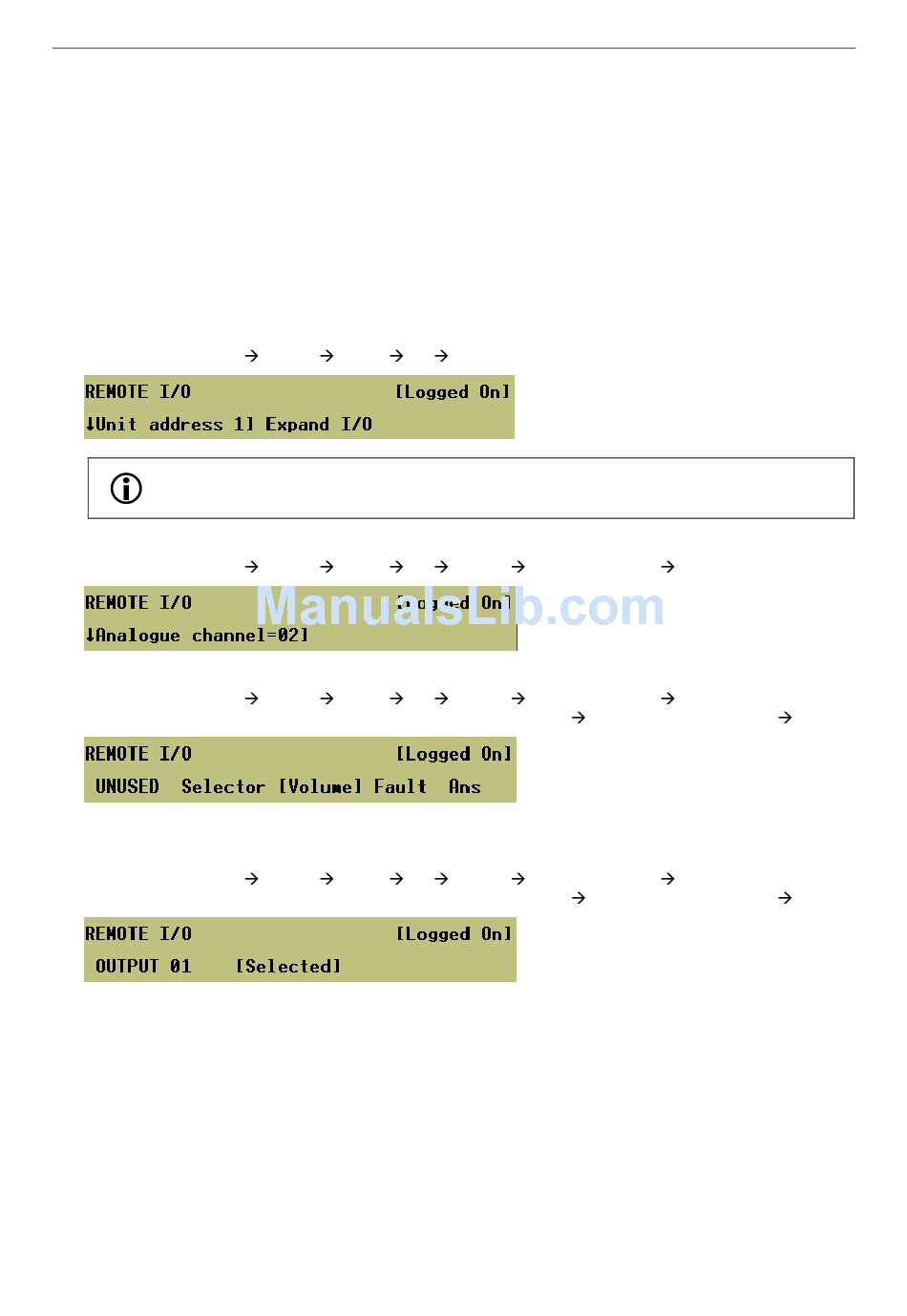

1. Select the Remote I/O Unit to be programmed by selecting its unit address on the RS485 bus.
Menu: Configuration System Router Ctrl Remote
The unit address should match the address set by a switch internal to the unit.
2. Select the Remote I/O Unit analogue input to which the Volume Control is connected.
Menu: Configuration System Router Ctrl Remote Unit address <n> Analogue
3. Select 'Volume'.
Menu: Configuration System Router Ctrl Remote Unit address <n> Analogue
The currently configured option (UNUSED in the example) is displayed in upper-case letters.
4. Select the Router outputs associated to the Volume Control.
Menu: Configuration System Router Ctrl Remote Unit address <n> Analogue
-
Is sue: 02 complete, approved
Page 99 of 166
Analogue channel=<nn> Volume
Analogue channel=<nn> Volume
