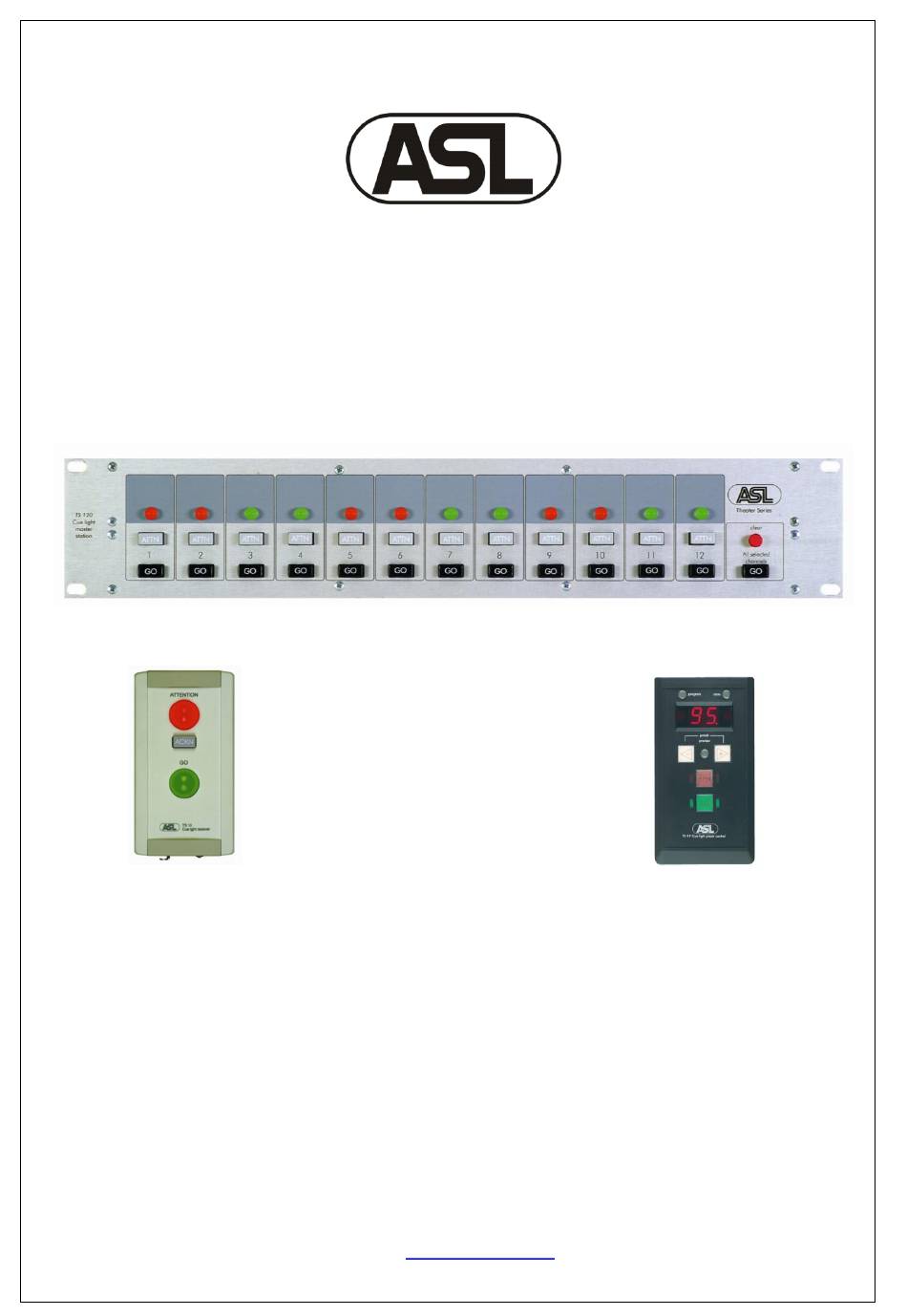

TS-120 CUE LIGHT MASTER STATION
TS-10 CUE LIGHT RECEIVER
TS-99 PRESET CONTROL
USER MANUAL
March 2011 © ASL Intercom BV
DESIGNED AND MANUFACTURED BY:
ASL INTERCOM B.V.
ZONNEBAAN 42
3542 EG UTRECHT
THE NETHERLANDS
PHONE: +31 (0)30 2411901
FAX: + 31 (0)30 2667373
E-MAIL: info@asl-inter.com
WEB:
www.asl-inter.com
Advertisement
Related Manuals for ASL INTERCOM TS-120
Summary of Contents for ASL INTERCOM TS-120
- Page 1 TS-120 CUE LIGHT MASTER STATION TS-10 CUE LIGHT RECEIVER TS-99 PRESET CONTROL USER MANUAL March 2011 © ASL Intercom BV DESIGNED AND MANUFACTURED BY: ASL INTERCOM B.V. ZONNEBAAN 42 3542 EG UTRECHT THE NETHERLANDS PHONE: +31 (0)30 2411901 FAX: + 31 (0)30 2667373 E-MAIL: info@asl-inter.com...
- Page 2 OPERATING A CUE LIGHT SYSTEM ..........5 TS-120 INTERNAL CONTROLS ............6 10.0 TS-120 TECHNICAL SPECIFICATIONS .......... 6 11.0 THE TS-99 PRESET CONTROL ............6 12.0 USING THE TS-99 PRESET CONTROL .......... 7 PAGE 2 User Manual TS 120 / March 2011 © ASL Intercom BV...
-
Page 3: Installation
XLR-3 connectors. “CLEAR” button. Use high quality microphone cable only ! Up to twelve TS-120 units can be linked to each other, resulting in 144 cue light channels. The Cue light receivers are powered (30V DC) by a units are linked via the D-connectors on the rear TS 120, via the microphone cable. - Page 4 0 V / ground shield TS-120‟s : the TS Link Cable coming from another +30 V power wire TS-120 goes to this LINK IN connector signalling line PAGE 4 User Manual TS 120 / March 2011 © ASL Intercom BV...
- Page 5 OPERATING A CUE LIGHT SYSTEM Described below is how to operate a cue light system consisting of one TS-120 master station and a number (max. 12) of TS-10 cue light receivers. For a description of how to operate a cue light system with the TS-99 preset control unit, see section “The TS 99”...
- Page 6 The TS-99 connects to the TS-120 via a cable of 1.5m which is fixed to the TS-99. One may lengthen this cable to max. 10 m. The TS-99 is powered by the TS-120 via this cable (5V DC).
- Page 7 TS-10‟s. One can store up to 99 „Cue‟ presets and control the ATTN, GO and CLEAR button of the TS-120‟s using the ATTN and GO buttons of the TS-99. When several TS-120‟s are linked one has to operate such a system with the TS-99 to make it a one multi- channel (max. 144) cue light system.
