Music Input Configuration

The Router provides one unbalanced input typically for background music. Background music can be
connected to any of the Mic/Line inputs, in addition to or instead of this dedicated music input.
The following table summarises the configurable input parameters, and indicates those parameters available
for the Music input with a tick ( ). Each parameter configuration is described in the following steps.
Table 7 Configurable Music Input Parameters
Input Type Surv
Music X
1) High Pass Filter is not available for Music Input.
11.1

Input Type and Name Configuration

To Configure the Music Input Type and Name:
1. If using the unbalanced input, select Input 9, which is the Music input.

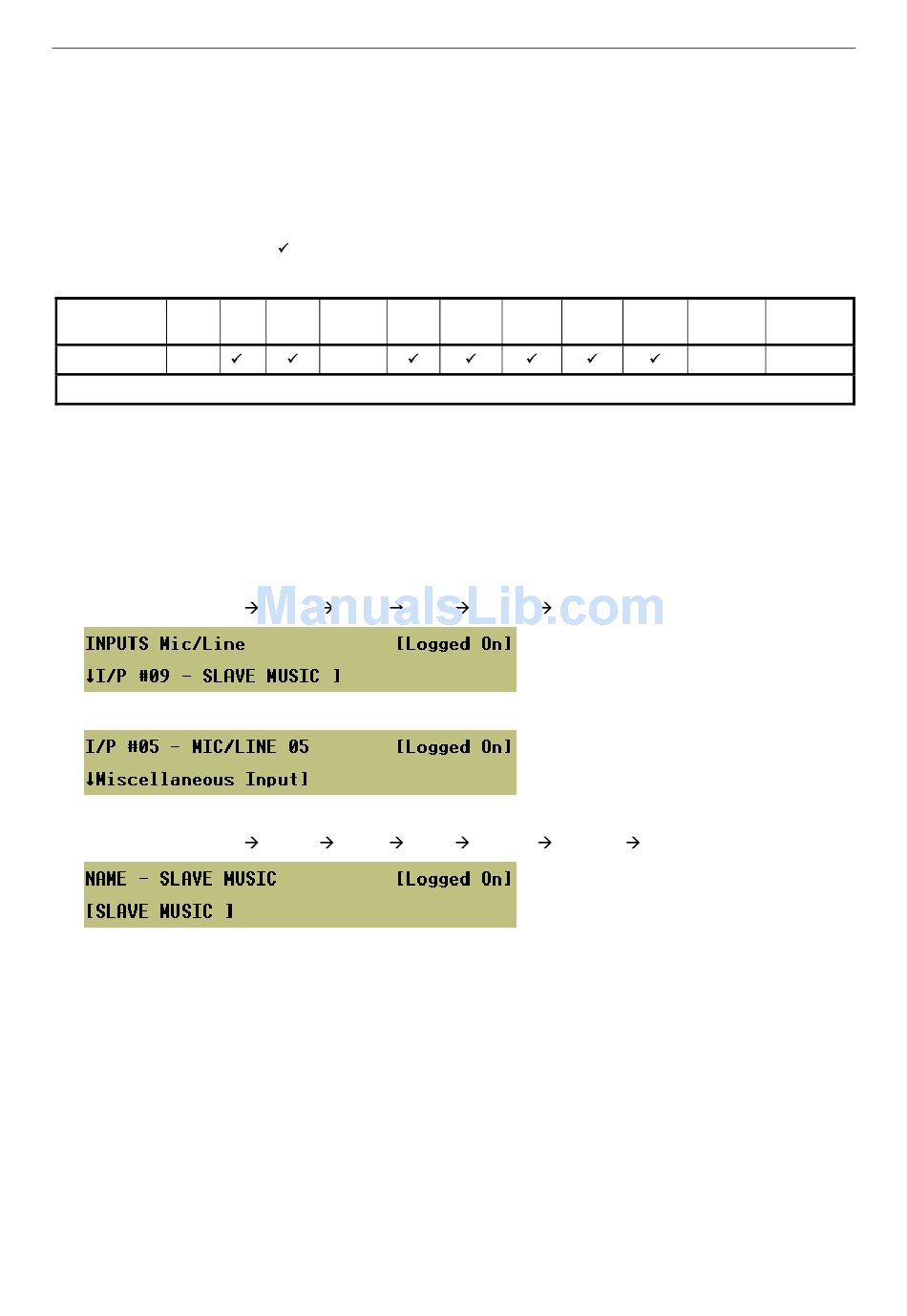

Menu: Configuration System Router Inputs Mic/Line I/P #<nn>
If using one of the balanced inputs, select the input, and then program it as 'Miscellaneous Input'.
2. Change the Music input name as required. It is for reference only, and it is shown in input related menus.
Menu: Configuration System Router Inputs Mic/Line I/P #<nn> Name
-
EQ Fade Chime Gain
1)
X
