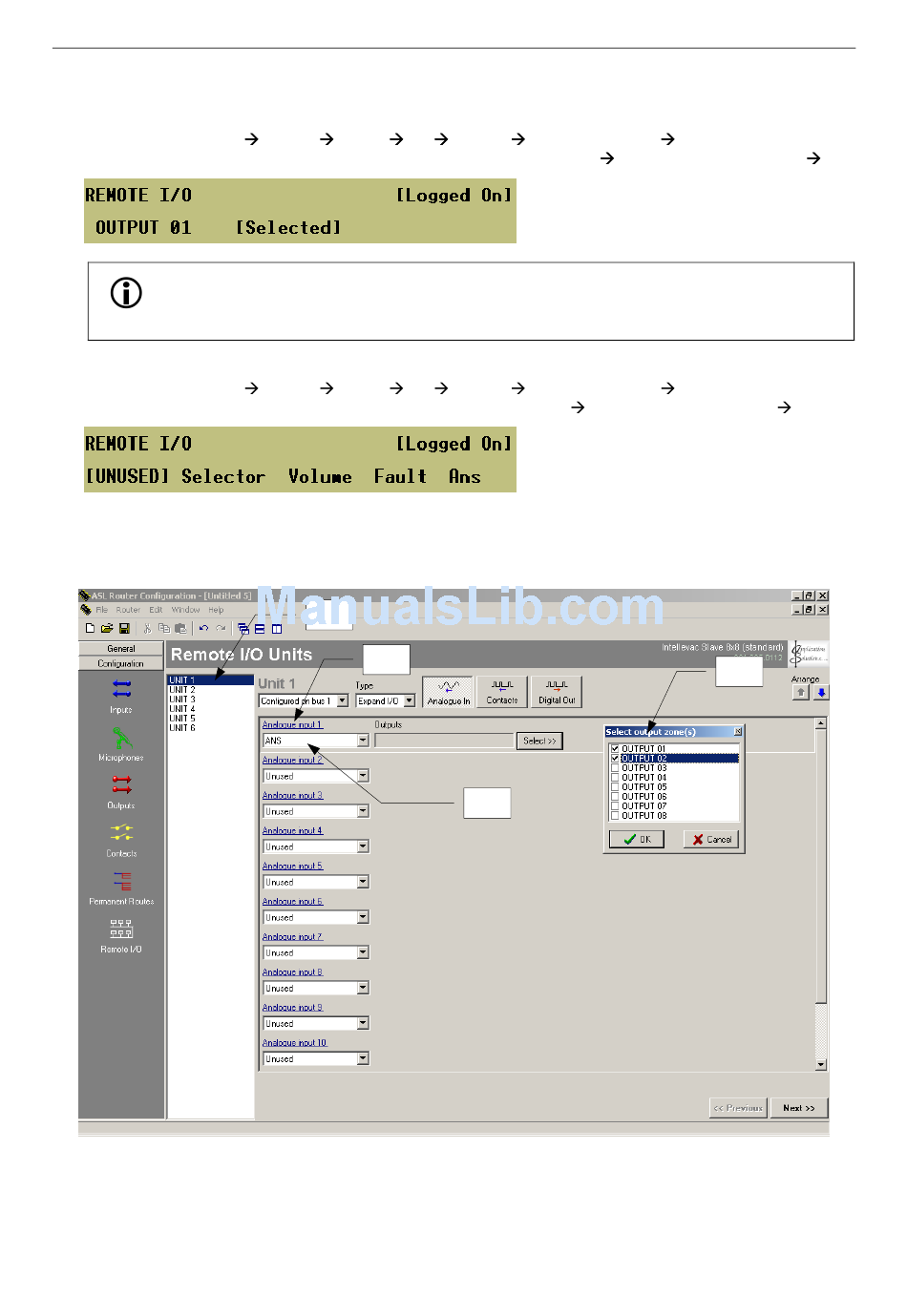

4. Select the Router outputs controlled by this ANS sensor. 4. Select the Router outputs controlled by this ANS sensor.
Menu: Configuration System Router Ctrl Remote Unit address <n> Analogue Menu: Configuration System Router Ctrl Remote Unit address <n> Analogue
It is possible to assign multiple (up to 12) ANS sensors to a single Router output provided
that they are connected to the same Remote I/O Unit. Where this is done the highest of the
received ANS values is used.
5. Any analogue input that is not used should be configured as 'Unused'.
Menu: Configuration System Router Ctrl Remote Unit address <n> Analogue
Reference to Configuration Tool
-
1
2
Is sue: 02 complete, approved
Page 92 of 166 Page 92 of 166
Analogue channel=<nn> Ans Analogue channel=<nn> Ans
Analogue channel=<nn> Unused
3
4
