25.6.11 Amplifier Type and Revision Level

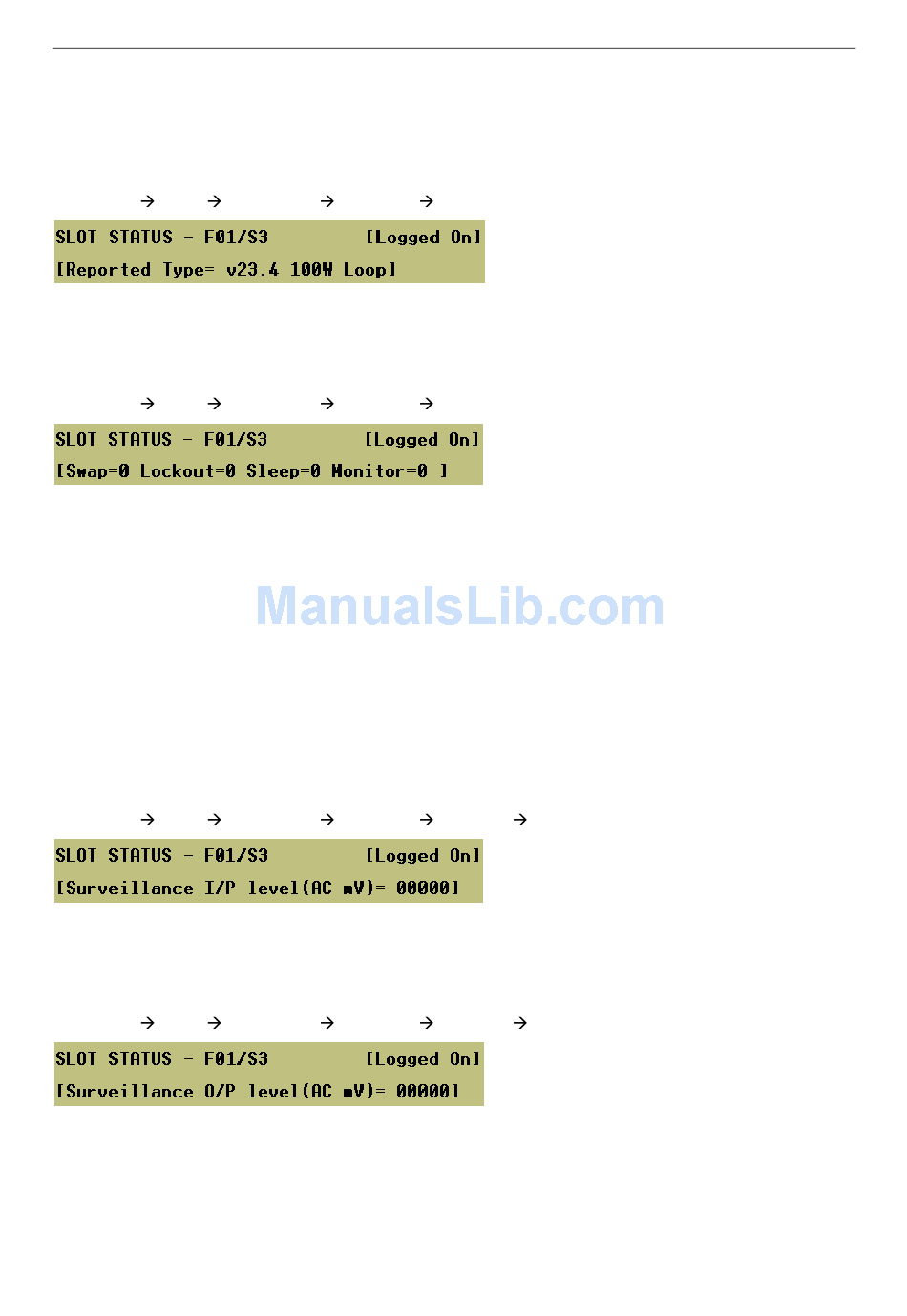

The type, revision level, and surveillance mode of the amplifier installed in the selected slot can be displayed
via the following menu.
Menu: Test Status Frame#<nn> Slot #<nn> Type

25.6.12 Amplifier Detailed Status

The status of the amplifier in the selected slot can be displayed via the following menu.
Menu: Test Status Frame#<nn> Slot #<nn> I/O
Swap 1 (swapped to standby amplifier)
0 (in use)
Lockout 1 (locked out from accessing the standby amplifier)
0 (can access the standby amplifier)
Sleep 1 (in power saving sleep mode)
0 (not in sleep mode)
Monitor 1 (amplifier is connected to the audio monitor bus)
0 (amplifier is disconnected from the audio monitor bus)

25.6.13 Amplifier Input Surveillance Tone Level

The input surveillance tone limits in millivolts can be displayed via the following menu.
Menu: Test Status Frame#<nn> Slot #<nn> Measured Surv In

25.6.14 Amplifier Output Surveillance Tone Level

The output surveillance tone limits in millivolts can be displayed via the following menu.
Menu: Test Status Frame#<nn> Slot #<nn> Measured Surv Out
-
