Summary of Contents for ASL INTERCOM WMC01

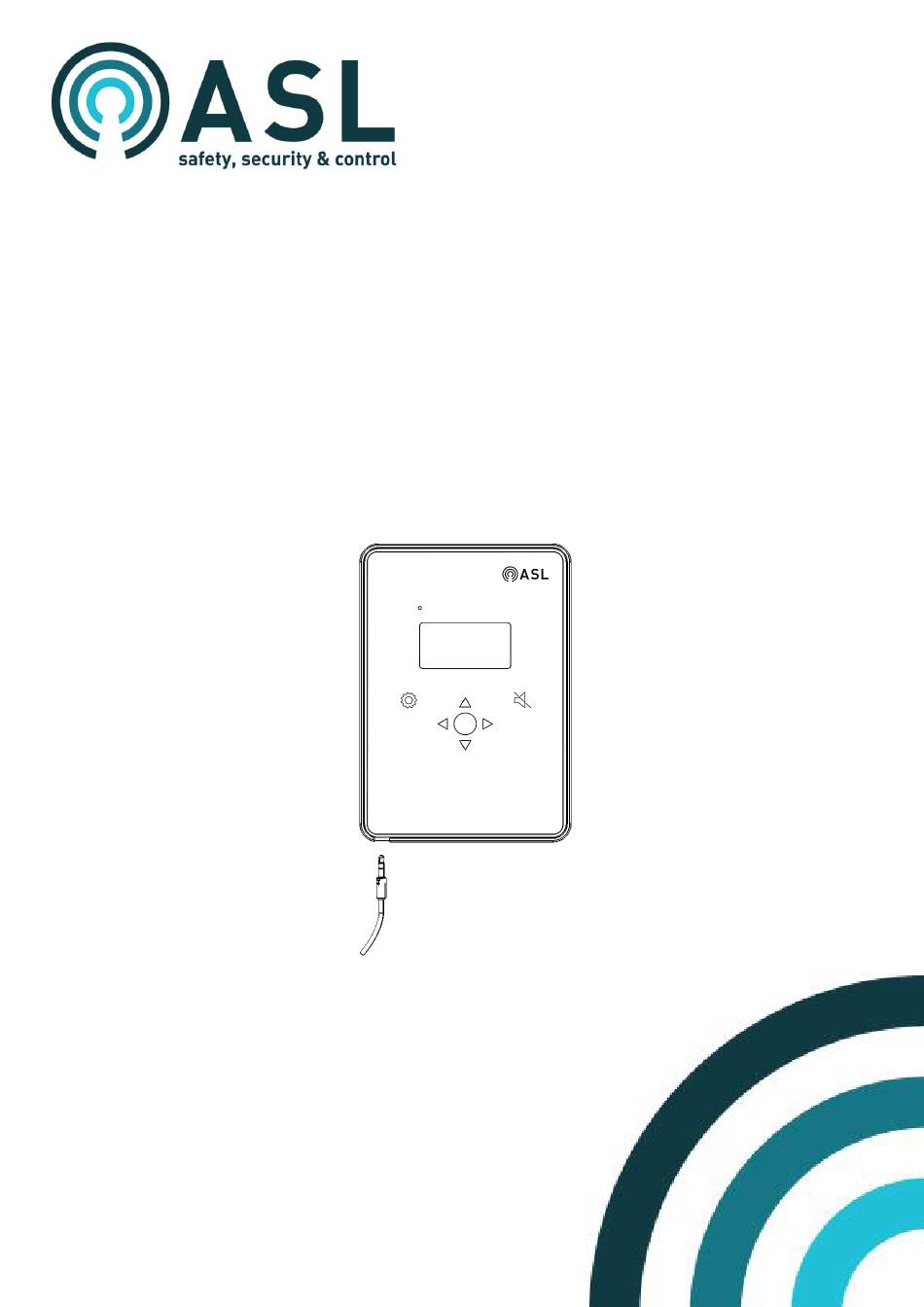

- Page 1 WMC01 Wall Mount Controller Source Select and Volume Control (Black, white or gold finish) User's Manual ASL Document Ref.: U-0664-0833-WMC_User_Manual.docx Issue: 02 complete, approved - Date: 31/08/17...
- Page 2 WMC01 – User's Manual This page is intentionally blank...
- Page 3 A “Declaration of Conformity” statement to the above Directives, listing the applicable harmonised standards to which the equipment conforms, is available on request. The WMC01 is assessed for safety as suitable for pollution degree 2 environments. Failure to use the equipment in the manner described in the product literature will invalidate the warranty.
-
Page 4: Table Of Contents
WMC01 – User's Manual Contents Overview ..................................5 Features ..............................5 Important Notes ............................5 Connections ................................6 Set Up ..................................7 Mode ................................7 Power ................................. 7 Connections ............................... 8 Configuration (Analogue Mode) ......................... 9 Configuration (IP Mode) ........................... 12 Indications and Controls ............................ -
Page 5: Overview
In systems with multiple WMC01 units, each device must control a unique set of audio outputs. It is not possible to control the audio routed to any single or group of outputs from more than one device. -
Page 6: Connections
WMC01 – User's Manual Connections MUSIC INPUT U-0664-0833-WMC_User_Manual.docx – Issue: 02 complete, approved Page 6 of 20... -
Page 7: Set Up
PoE. The unit can either be connected directly to one of VIPEDIA-12’s Ethernet ports, or through an by external/3 existing network. Power Set the power jumpers on the rear side of the WMC01 for to the selected mode (analogue or IP) as shown in Figure 1 below. Figure 1 - Power Jumper Settings Analogue Mode... -
Page 8: Connections
In IP Mode, two options for powering the WMC01 are available. Both require a PoE network connection – option 1 requires a PoE capable network switch, option 2 requires an inline PoE power injector e.g. e.g. RS Stock No.873-0737... -
Page 9: Configuration (Analogue Mode)
WMC01 – User's Manual Configuration (Analogue Mode) This section describes the configuration of the WMC01 device to operate in analogue mode. For IP mode follow steps 1 to 4, then see section 3.5 Configuration (IP Mode) 1. Connect the cable between VIPEDIA-12 or INTEGRA and WMC01 as shown in Figure 2 or Figure 3 above. - Page 10 For IP mode, please now go to section 4b. 5. Add WMC01-485 to an unused audio input. Note: this audio input will be connected to the local 3.5mm jack socket on the front panel of the WMC01 and will be available in the list of selectable inputs if required.
- Page 11 8. Set the priority at which the WMC01 will route audio sources within the system. If the system contains multiple devices those which should be able to override the WMC01 selection should have their priority set to a smaller (more important) value.
-
Page 12: Configuration (Ip Mode)
1. Configure the system as described in 3.4 Configuration (Analogue Mode) - steps 1 to 4. 2. Add a WMC01-IP to an unused audio input. Note: this audio input will be connected over IP to the local 3.5mm jack socket on the front panel of the WMC01 and will be available in the list of selectable inputs if required. - Page 13 192.168.1.x addressing these values can be left as default. 6. Select the WMC01 device in the tree. For each source which the WMC will select, change the “Source” dropdown to the required input and enter a name. The name entered will be shown in the WMC01 LCD user interface.
- Page 14 WMC01 – User's Manual 8. Set the priority at which the WMC01 will route audio sources within the system. If the system contains multiple devices those which should be able to override the WMC01 selection should have their priority set to a smaller (more important) value.
-
Page 15: Indications And Controls
WMC01 – User's Manual Indications and Controls SELECT SOURCE.. Standard operation menu Select Source (Bargraph indicates analogue ⊲ ⊳ Music 1 source level.) LOCAL MUSIC IP Local music input volume 12dB adjustment tab (Left-side bargraph indicates local music input level.) ’o’... -
Page 16: Troubleshooting
Once the device reboots move the cable to the Router 1 connection. IP Mode WMC01 displays “HOST COMMS Check the WMC01 unit is in the same network as the host VIPEDIA-12. LOST” Verify the MAC address is entered correctly in the PAVA SCT WMC01 stuck in “Please wait”:... -
Page 17: Reference Documents
Ref. No Title Filename Ref Origin WMC01 Wall Mount Controller Installation Guide U-0664-0758 The above documents are the user documentation available (or planned) at the time of the publication of this document. The website has the latest releases of the user documentation for each product. If you find any difficult in locating any document, please refer to Applications Solutions (Safety and Security) Limited. -
Page 18: Technical Specification
WMC01 – User's Manual Technical Specification Supply Voltage Range/Power ............15 - 40 V DC or PoE (42 - 57 V DC) / 2.5 W Serial Connection to ASL PAVA System ................. RJ45 (ROUTER 2 port) Audio Output (background music) ........ analogue audio / balanced / 0 dBu nominal / 220 ... - Page 19 WMC01 – User's Manual This page intentionally left blank. U-0664-0833-WMC_User_Manual.docx – Issue: 02 complete, approved Page 19 of 20...
