Remote I/O Unit Analogue Input as External Fault

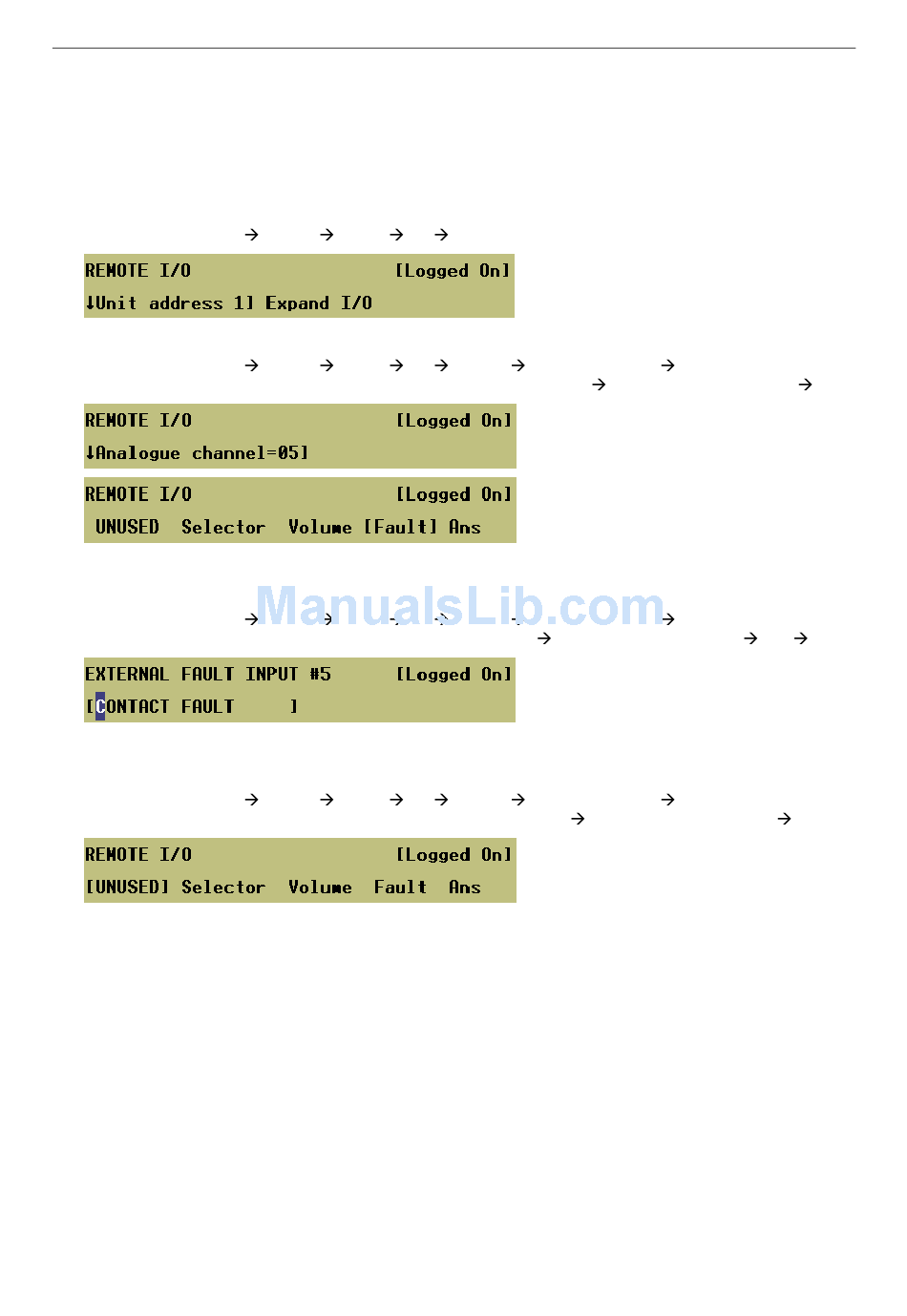

In order to program a Remote I/O Unit analogue input as external fault input proceed as follows.
1. Select Remote I/O Unit's address on the RS485 bus.
Menu: Configuration System Router Ctrl Remote
2. Select input and program it for 'Fault'.
Menu: Configuration System Router Ctrl Remote Unit address <n> Analogue
The currently configured option (UNUSED in the example) is displayed in upper-case letters.
3. Change fault description as required.
Menu: Configuration System Router Ctrl Remote Unit address <n> Analogue
Possible values: 18-character alphanumeric string
4. Any input that is not used should be configured as 'Unused'.
Menu: Configuration System Router Ctrl Remote Unit address <n> Analogue
-
Is sue: 02 complete, approved
Page 107 of 166
Analogue channel=<nn> Fault
Analogue channel=<nn>
Analogue channel=<nn> Unused
ault Desc.
