Remote I/O Unit or Fire Loop Interface Configuration

The VAR8 supports Remote I/O Units and Fire Loop Interfaces connected to its RS485 port. Each of these
units has an address on the RS485 bus.
To Configure a Remote I/O Unit or Fire Loop Interface connected to the RS485 Port:
1. Select the unit address.

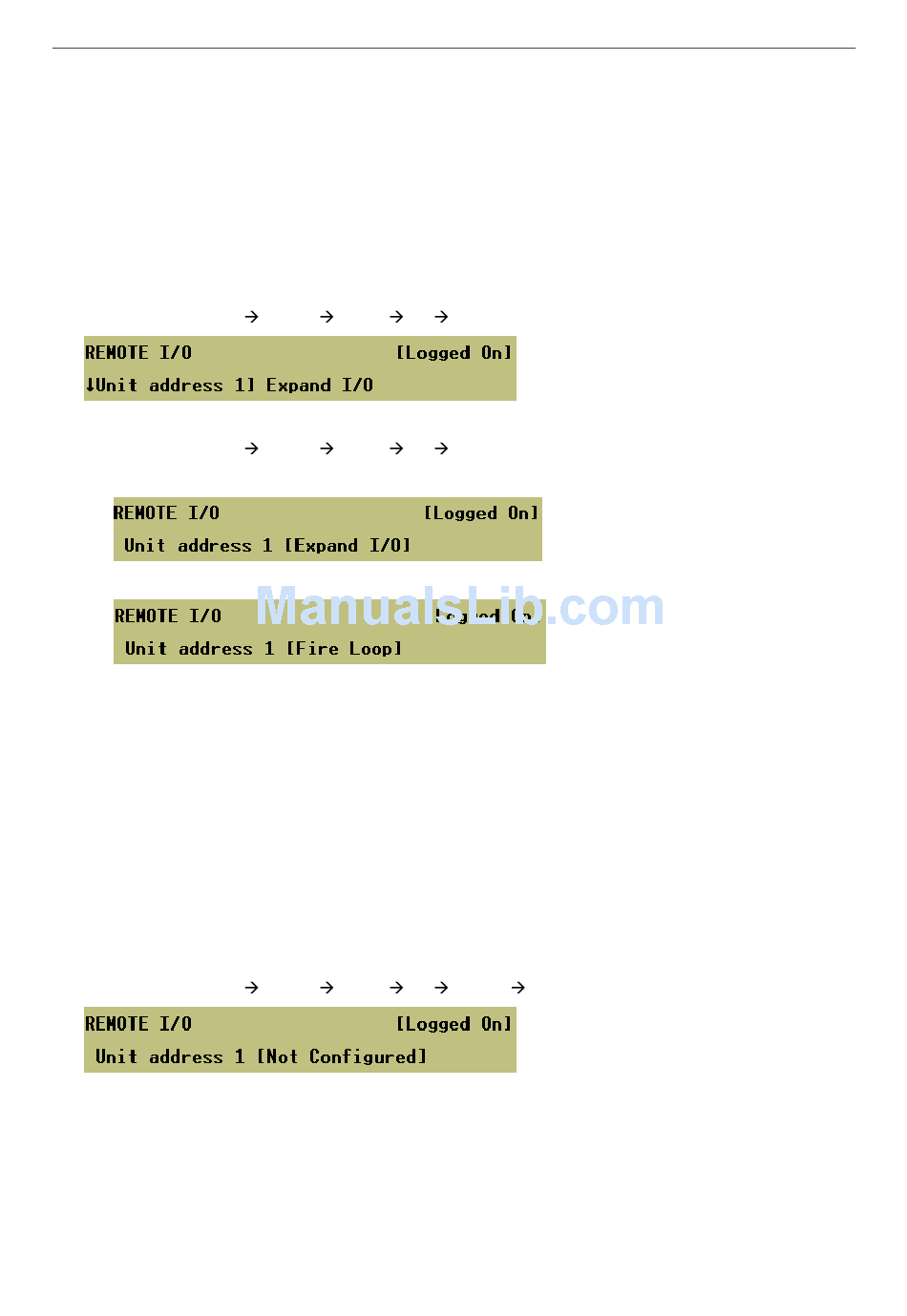

Menu: Configuration System Router Ctrl Remote
2. Select the unit type.
Menu: Configuration System Router Ctrl Remote
a. Remote I/O Unit
b. Fire Loop
3. Pressing the SELECT key will configure the unit at the selected address and display the unit
configuration menu, which enables the user to program the selected unit type:
a. For Remote I/O Unit see Sections:
"16 DVA or Route Triggers via Contact
"18 Ambient Noise Sensor (ANS)
"19 Volume Control
"20 Programme Selector
"21 External Fault
"22 Busy Indication
b. For Fire Loop Interface see Section:
"17 DVA or Route Triggers via Third Party Fire Loop
4. Any address on the RS485 bus that is not used should be configured as 'Not Configured'.
Menu: Configuration System Router Ctrl Remote
-
