M1 M2 M3 M4
P1 P2 P3 P4 Status

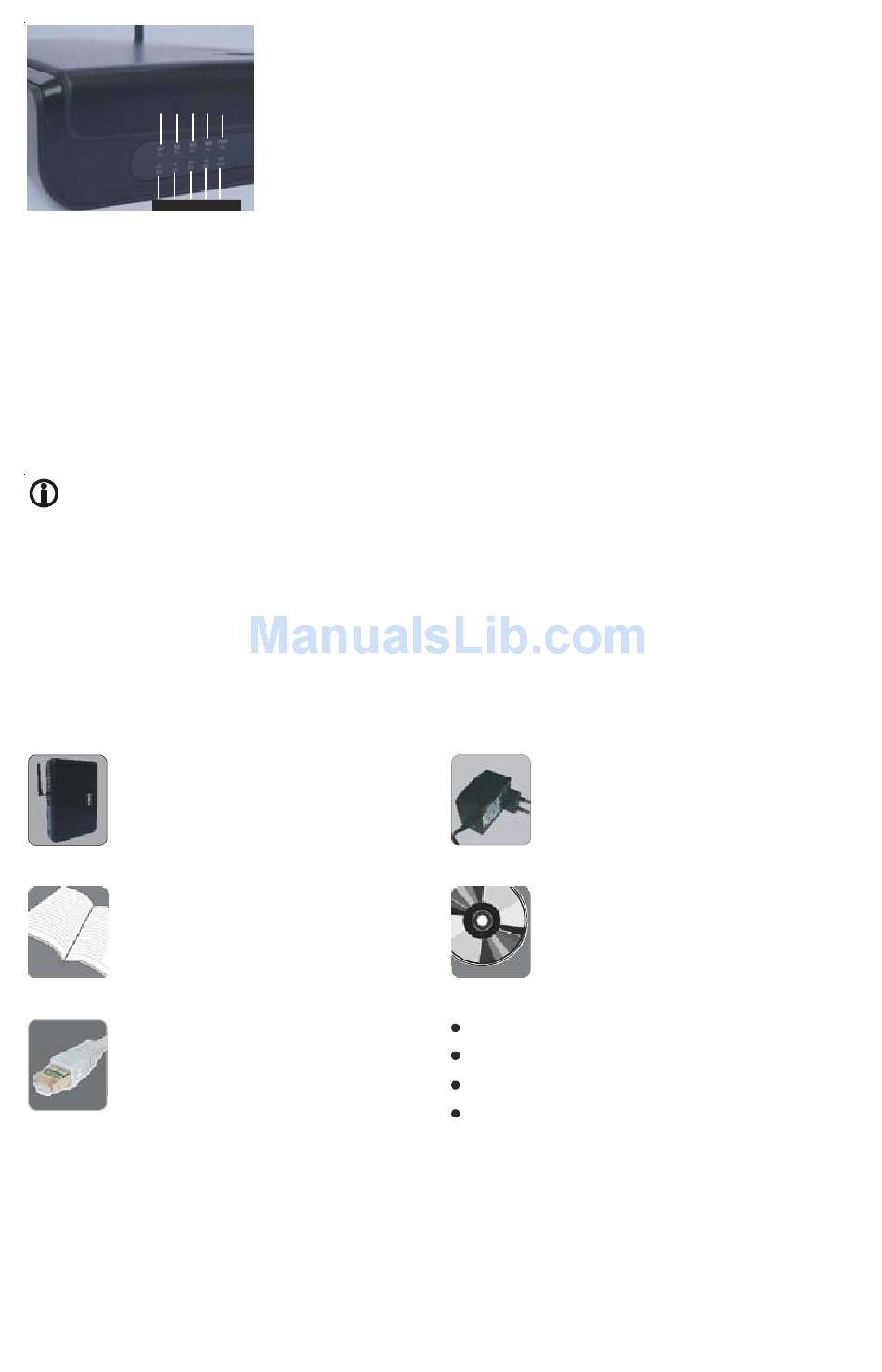

All LEDs are of dual colour (Red/Green) except Power LED which is of single
colour (Red). Power (PWR) and Status (STS) LEDs are non-programmable
whereas all port LEDs are programmable.
By default, LEDs labeled as M1, M2, M3 and M4 show status of Mobile
Ports. LEDs labeled as P1 and P2 show status of FXO Ports and P3 and P4
show status of FXS Ports.
Port LEDs can be programmed for showing the status of SIP Trunks also.
You can program LEDs for showing status of maximum 8 SIP Trunks
simultaneously. (Refer "Step 10" for more details)
Before You Start
Verify Package Contents
SETU VGFX with Antenna
(Rubber ducky SMA)
Quick Start and User Card
Ethernet Cable (RJ45)
Make sure that all the above mentioned components are present when you open
the Sales Kit of SETU VGFX. In case any of the part is missing or damaged,
contact the source from where you have purchased your VGFX.
Power
Adaptor 12VDC, 2A
(Country Specific)
CD containing System Manual,
Quick Start and User Card
Two Screws M 7/30 with Grips
External Antenna SMA with cable
A Mounting Template
A Warranty Card Set
