Matrix SETU VGFX Quick Start Manual page 7

Connecting SETU VGFX

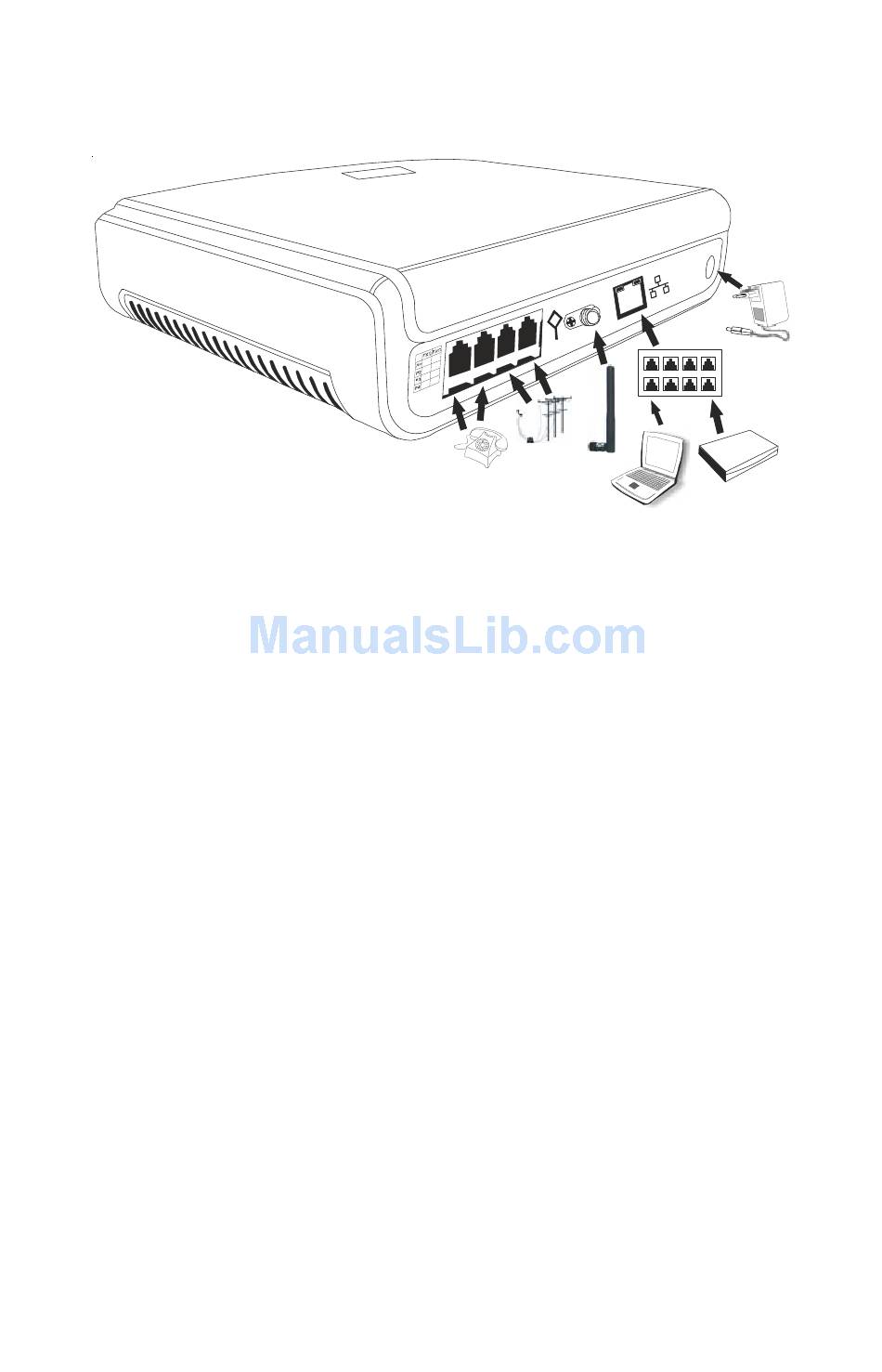

Connect SETU VGFX as shown below:
• Place SETU VGFX at a suitable place where it can be provided with proper
power supply.
• Connect Ethernet (WAN) Port of SETU VGFX to the LAN Switch/Network of
the Enterprise.
• Connect PSTN line to the FXO Port of SETU VGFX or connect FXO Ports of
SETU VGFX to the FXS Ports of the PBX.
• Connect telephone instruments to the FXS Ports of SETU VGFX or connect
FXS Ports of SETU VGFX to the FXO Ports of the PBX.
• Connect Antenna to SETU VGFX.
• Insert SIM Card into the Mobile Port of SETU VGFX for the mobile network.
If SIM protection is enabled in the SIM Card, ensure that SIM PIN of the SIM
Card and VGFX is same. By default, SIM PIN of all the Mobile Ports of the
VGFX is 1234. To change SIM PIN of the SIM Card, SE is recommended to
take following steps:
• Switch Off VGFX.
• Remove SIM Card and insert the same in the mobile instrument.
• Enable 'SIM PIN at Power ON' parameter in the SIM Card. (This step is
not required if SIM protection is already ON)
• Change the SIM PIN of the SIM Card to 1234 i.e. the default SIM PIN of
VGFX.
• Remove SIM Card from the mobile instrument and insert it in VGFX.
• Change the SIM PIN after VGFX attains normal working position.
• Connect Power Socket of SETU VGFX to the power supply using 12V DC,
2A power adaptor.
RJ11
Antenna
RJ11
Ethernet
Adaptor
Switch
PC
Router
