Matrix SETU VGFX Quick Start Manual page 4

Introduction
Thank you for choosing Matrix SETU VGFX! Please read the instruction in this
quick start to install this feature reached system.
This Quick Start is meant to help you to install the basic features and parameters
of VGFX. For detailed information on installing and configuring SETU VGFX,
please refer 'SETU VGFX V1 System Manual' provided to you on the CD-ROM.
Know your SETU VGFX
SETU VGFX has 1 WAN Port, 2 FXO Ports, 2 FXS Ports, 4 Mobile Ports, 9 SIP
Trunks, Antenna Connecter, a Power Socket and 10 LEDs.
SETU VGFX is available in three different configurations:
1. SETU VGFX8422: supports 4 Mobile Ports, 2 FXO Ports and 2 FXS Ports.
This is the default configuration of SETU VGFX.
2. SETU VGFX8404: supports 4 Mobile Ports and 4 FXS Ports.
3. SETU VGFX8440: supports 4 Mobile Ports and 4 FXO Ports.
This Quick Start is written with reference to the default configuration. The term
SETU VGFX refers to SETU VGFX8422, unless otherwise specified.
LEDs:

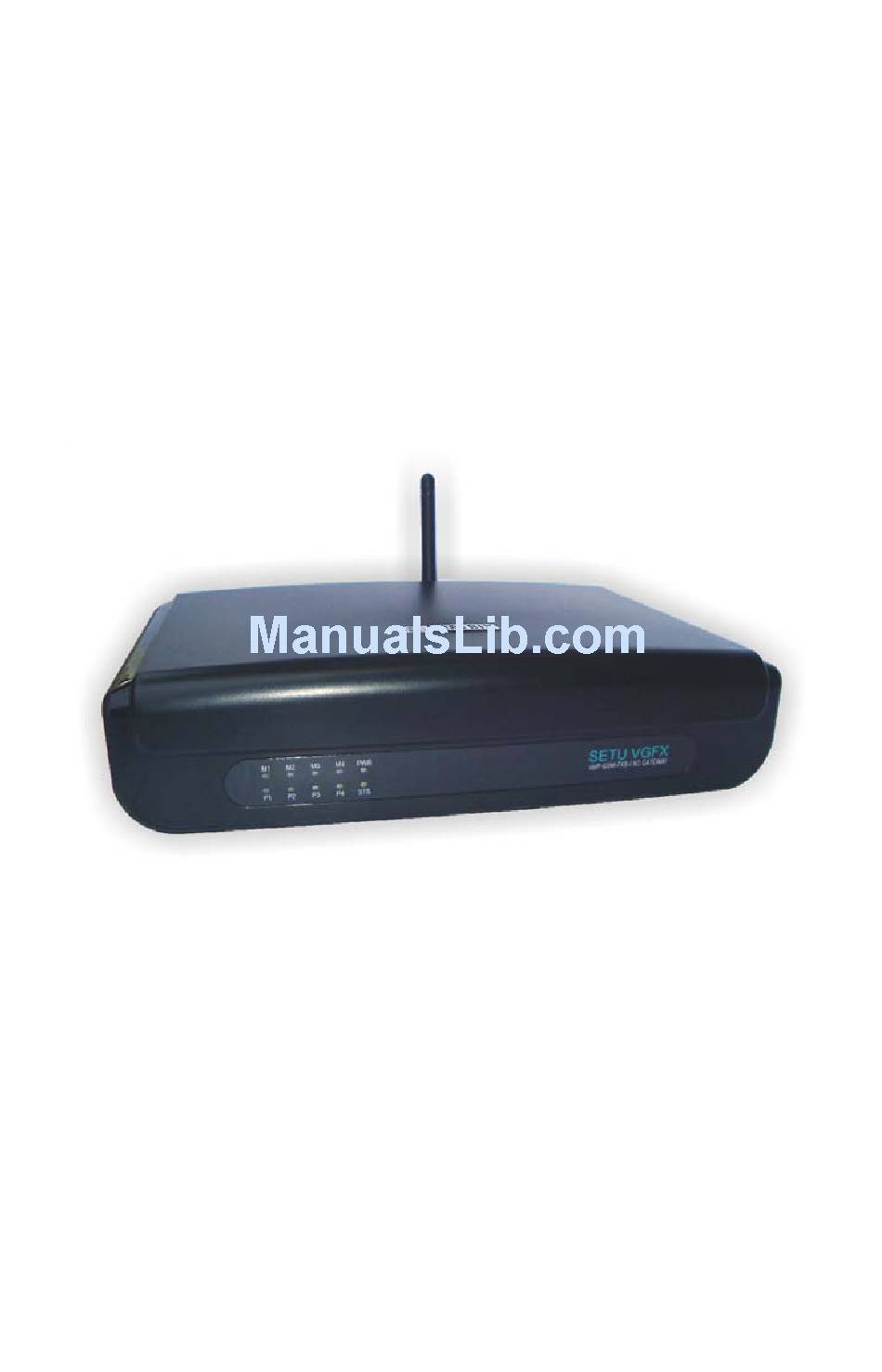

There are total 10 LEDs in VGFX. These LEDs are labeled as M1, M2, M3, M4,
P1, P2, P3, P4, STS and PWR as shown in the figure below. These LEDs indicate
the status of ports, various events occurring on the ports and also the error
conditions.
