■ Gett g sta ted
■ Getting started
◇This cloning software is designed to perform data
setting and cloning for the IC-F9011 series VHF
P25 TRUNKING HANDHELD TRANSCEIVERS,.
◇HELP WINDOW: CS-F9010/F9510 has a help
window to describe functions and operation.
■ System requirement
To use this program, the following hardware and
To use this program the following hardware and
software are required:
PC
• Microsoft® Windows® 2000/XP or Microsoft®
Windows Vista ® is installed.
• USB port
Other item
Oth
it
Optional OPC-1862* CLONING CABLE (USB type)
▒ NOTE:
▒ To use the OPC-1862, USB type cloning cable, USB
▒ driver installation is necessary. The driver is
▒ supplied with the OPC-1862.
▒*The USB driver, supplied with the OPC-1862
▒ is not supported for Microsoft® Windows
▒ Vista ®(64 bit).
■ Software installation
▒ When installing the software, log in as the
▒ administrator.
Quit all applications when Windows is running.
Quit all applications when Windows is running.
Insert the CD into the appropriate CD drive.
Double-click the "Setup.exe" contained in the CD.
The "Welcome to the InstallShield Wizard for CS-
F9010/ F9510" will appear as below. Click [Next>].
The "User Information" will appear as below, then
f
type your name, your company name and the
product ID number with the following manner.
Then click [Next >].
4-2

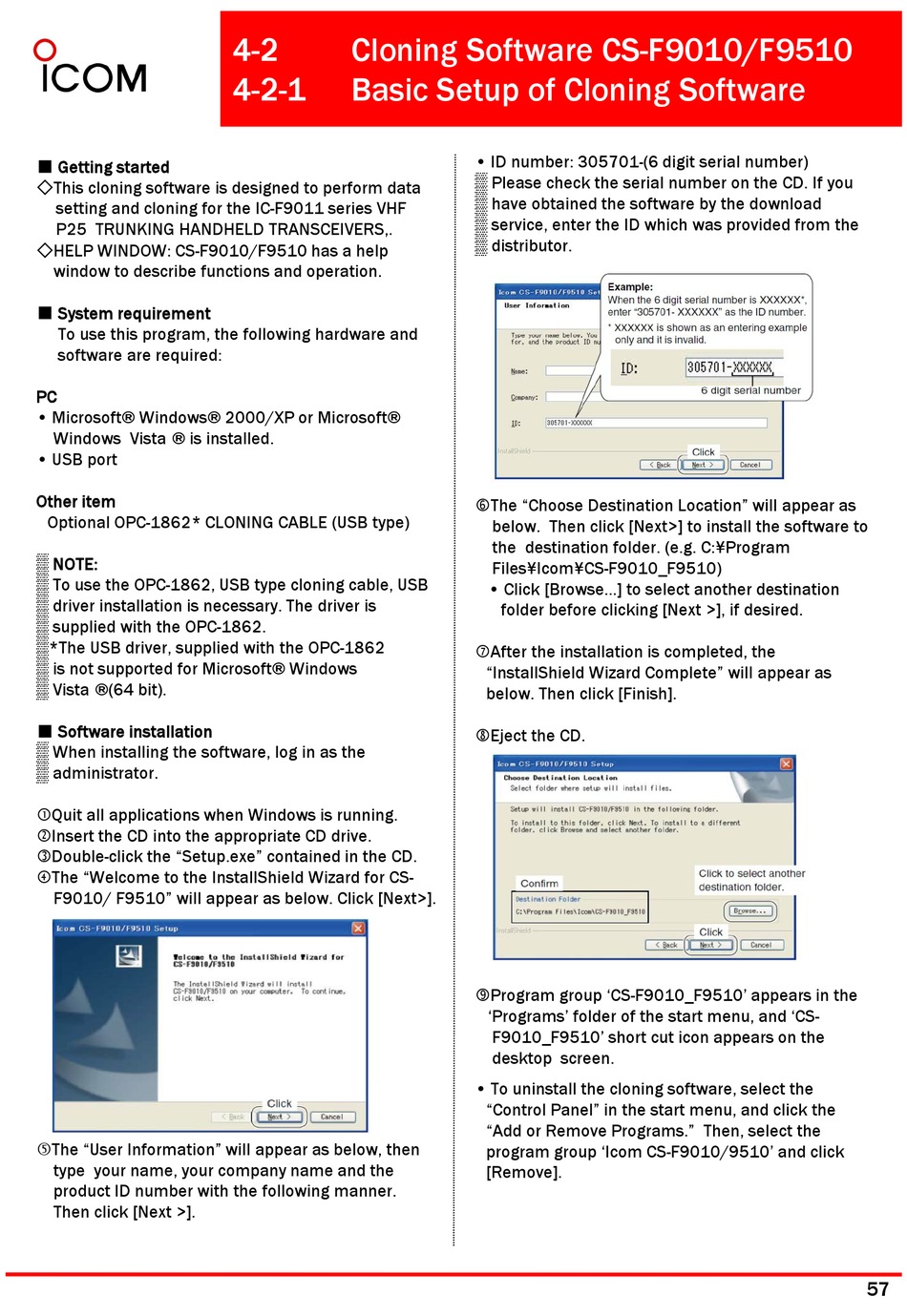

Cloning Software CS-F9010/F9510
4-2-1
Basic Setup of Cloning Software
• ID number: 305701-(6 digit serial number)
▒ Please check the serial number on the CD. If you
▒
▒ have obtained the software by the download
▒ service, enter the ID which was provided from the
▒ distributor.
The "Choose Destination Location" will appear as
below. Then click [Next>] to install the software to
the destination folder. (e.g. C:¥Program
Files¥Icom¥CS-F9010_F9510)
• Click [Browse...] to select another destination
folder before clicking [Next >], if desired.
After the installation is completed, the
"InstallShield Wizard Complete" will appear as
below. Then click [Finish].
Eject the CD.
Program group 'CS-F9010_F9510' appears in the
'Programs' folder of the start menu, and 'CS-
F9010_F9510' short cut icon appears on the
desktop screen.
• To uninstall the cloning software, select the
"Control Panel" in the start menu, and click the
"Add or Remove Programs." Then, select the
program group 'Icom CS-F9010/9510' and click
[Remove].
p
,
57
