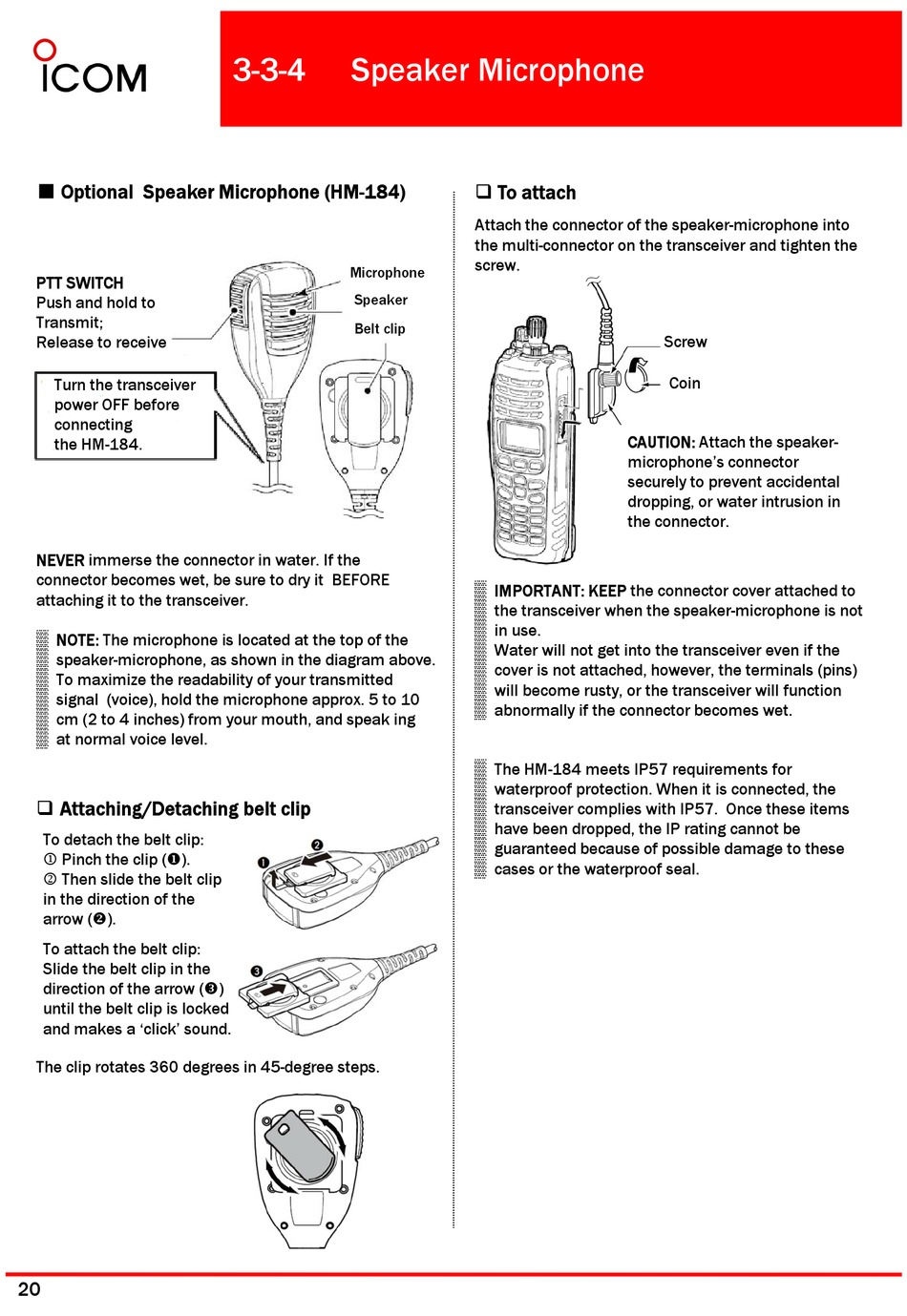

Speaker Microphone - Icom IC-F9011 User Manual

■ Optional Speaker Microphone (HM-184)
PTT SWITCH
Push and hold to
Transmit;
Release to receive
Turn the transceiver
power OFF before
connecting
the HM-184.
NEVER immerse the connector in water. If the
connector becomes wet, be sure to dry it BEFORE
attaching it to the transceiver.
▒ NOTE: The microphone is located at the top of the
▒ speaker-microphone, as shown in the diagram above. ▒ speaker microphone as shown in the diagram above
▒ To maximize the readability of your transmitted
▒ signal (voice), hold the microphone approx. 5 to 10
▒ cm (2 to 4 inches) from your mouth, and speak ing
▒ at normal voice level.
Attaching/Detaching belt clip
To detach the belt clip:
1 Pinch the clip ( ).
2 Then slide the belt clip
in the direction of the
arrow ( ).
To attach the belt clip:
Slide the belt clip in the
direction of the arrow ( )
until the belt clip is locked
and makes a 'click' sound.
The clip rotates 360 degrees in 45-degree steps.
20
3-3-4

Speaker Microphone

Microphone
Speaker
Belt clip p
To attach
Attach the connector of the speaker-microphone into
the multi-connector on the transceiver and tighten the
screw.
CAUTION: Attach the speaker-
microphone's connector
securely to prevent accidental
d dropping, or water intrusion in
the connector.
▒ IMPORTANT: KEEP the connector cover attached to
▒ the transceiver when the speaker-microphone is not
▒ in use.
▒ Water will not get into the transceiver even if the ▒ g
▒ cover is not attached, however, the terminals (pins)
▒ will become rusty, or the transceiver will function
▒ abnormally if the connector becomes wet.
▒ The HM-184 meets IP57 requirements for
▒ waterproof protection. When it is connected, the
▒ transceiver complies with IP57. Once these items
▒ have been dropped, the IP rating cannot be ▒
▒ guaranteed because of possible damage to these
▒ cases or the waterproof seal.
Screw
Coin
