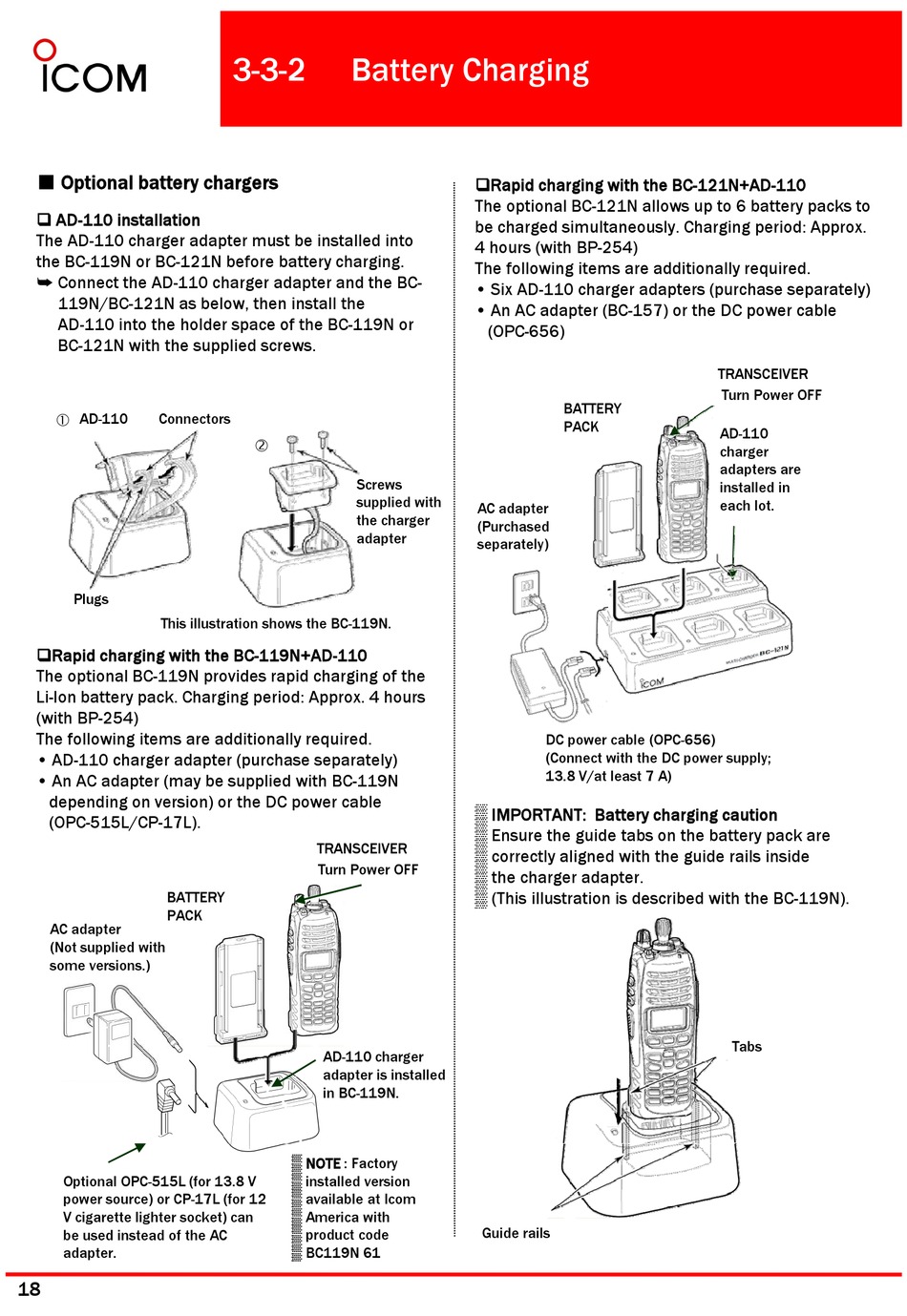

Battery Charging - Icom IC-F9011 User Manual

■ Optional battery chargers
AD-110 installation
The AD-110 charger adapter must be installed into
the BC-119N or BC-121N before battery charging.
➥ Connect the AD-110 charger adapter and the BC-
119N/BC-121N as below, then install the
AD-110 into the holder space of the BC-119N or
BC-121N with the supplied screws.
AD-110 Connectors
Plugs
This illustration shows the BC-119N.
Rapid charging with the BC-119N+AD-110 Rapid charging with the BC 119N+AD 110
The optional BC-119N provides rapid charging of the
Li-Ion battery pack. Charging period: Approx. 4 hours
(with BP-254)
The following items are additionally required.
• AD-110 charger adapter (purchase separately)
• An AC adapter (may be supplied with BC-119N
depending on version) or the DC power cable
(OPC 515L/CP 17L) (OPC-515L/CP-17L).
BATTERY
PACK
AC adapter
(Not supplied with
some versions.)
Optional OPC-515L (for 13.8 V
power source) or CP-17L (for 12
V cigarette lighter socket) can
be used instead of the AC
adapter.
18
3-3-2

Battery Charging

Screws
supplied with
the charger
adapter
TRANSCEIVER
Turn Power OFF
AD-110 charger
adapter is installed
in BC-119N.
▒ NOTE : Factory
▒ installed version
▒ available at Icom
▒ America with
▒ product code
▒ BC119N 61
Rapid charging with the BC-121N+AD-110
The optional BC-121N allows up to 6 battery packs to
be charged simultaneously. Charging period: Approx.
4 hours (with BP-254)
The following items are additionally required.
• Six AD-110 charger adapters (purchase separately)
• An AC adapter (BC-157) or the DC power cable
(OPC-656) (OPC 656)
BATTERY
PACK
AC adapter
(Purchased
separately)
DC power cable (OPC-656)
(Connect with the DC power supply;
13.8 V/at least 7 A)
▒ IMPORTANT: Battery charging caution ▒ IMPORTANT: Battery charging caution
▒ Ensure the guide tabs on the battery pack are
▒ correctly aligned with the guide rails inside
▒ the charger adapter.
▒ (This illustration is described with the BC-119N).
Guide rails
TRANSCEIVER
Turn Power OFF
AD-110
charger
adapters are
installed in
each lot.
Tabs
