2: Installation
This chapter describes the various Terminal Server models and shows how to install them
into a basic network situation.
2.1 Terminal Server Product Descriptions
2.1.1 LES2700A-16-R3 Front Panel
The LES2700A-16-R3 has 16 RJ45 serial ports, a Reset button, an AUI Ethernet port, an
RJ45 Ethernet port for 10/100BASE-T, several LEDs, and a power switch.
1
2
3
4
5
The first RJ45 port is also the serial console port; however, in most sit-
Note:
uations connecting a terminal to this port will not be necessary.
2.1.2 LES2700A-32-R3 Front Panel
The LES2700A-32-R3 has 32 RJ45 serial ports, a Reset button, an AUI Ethernet port, an
RJ45 Ethernet port for 10/100BASE-T, several LEDs, and a power switch.
17
20
18
19
21
1
2
3
4
5
The first RJ45 port is also the serial console port; however, in most sit-
Note:
uations connecting a terminal to this port will not be necessary.

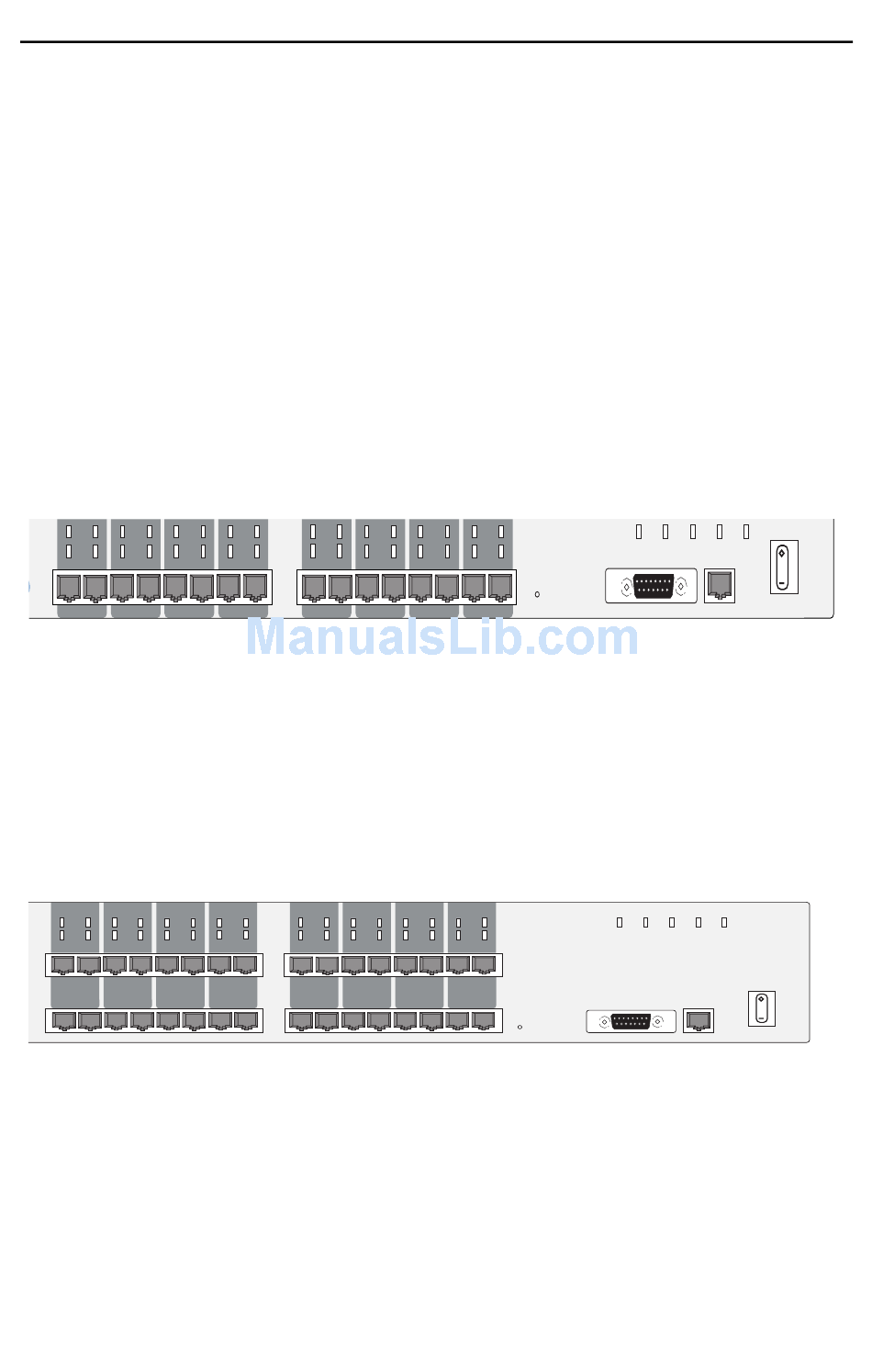

Figure 2-1: LES2700A-16-R3 Front Panel
receive
transmit
6
7
8
9
10
Figure 2-2: LES2700A-32-R3 Front Panel
17-32
1-16
22
24
25
26
27
23
6
7
8
9
10
11
11
12
13
14
15
16
28
29
30
31
32
12
13
14
15
16
reset
activity
ok
100
reset
# aui
activity
ok
100
link
# aui
10/100
link
power
10/100
power
3
